With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine (TCS switch OFF).
  2. Read "VHCL SPEED SE" in "DATA MONITOR" mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.

    If NG, go to "DIAGNOSTIC PROCEDURE ".

    If OK, go to following step.

  3. Select "DATA MONITOR" mode with CONSULT-II.
  4. Warm engine up to normal operating temperature.
  5. Maintain the following conditions for at least 60 consecutive seconds.

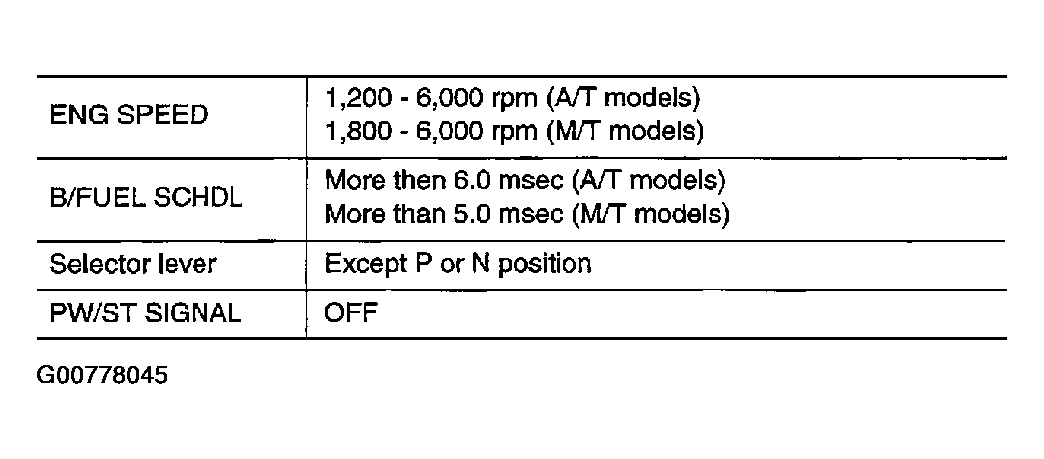

    Fig 1: Engine Speed Specification
    G00778045Courtesy of NISSAN MOTOR CO., U.S.A.

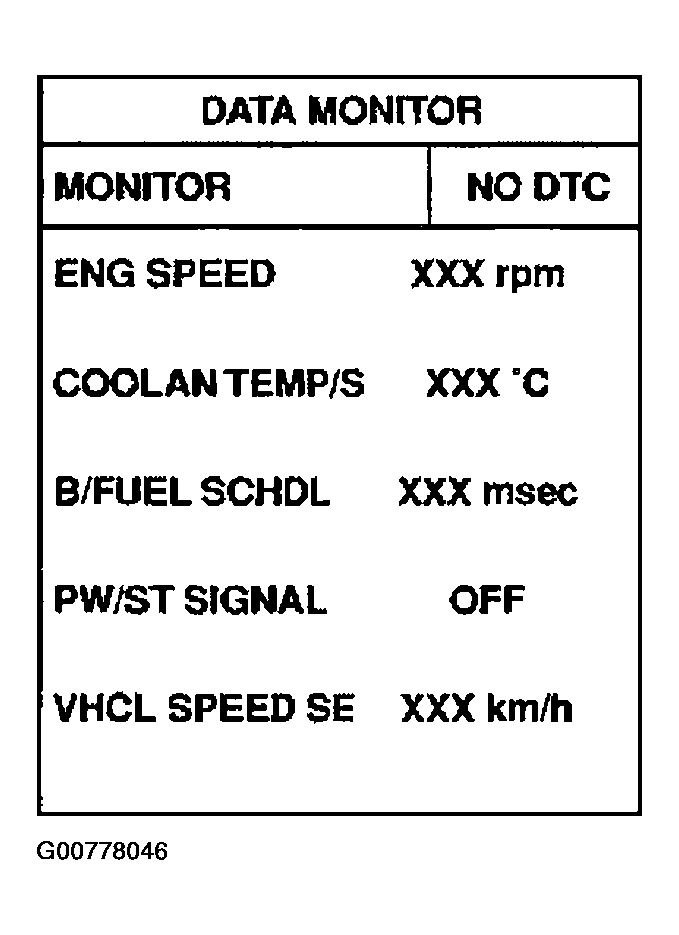

    Fig 2: Selecting Data Monitor Mode With Consult-II
    G00778046Courtesy of NISSAN MOTOR CO., U.S.A.
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
