With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for at least 13 seconds.
  4. If 1st trip DTC is detected, GO TO "DIAGNOSTIC PROCEDURE ".

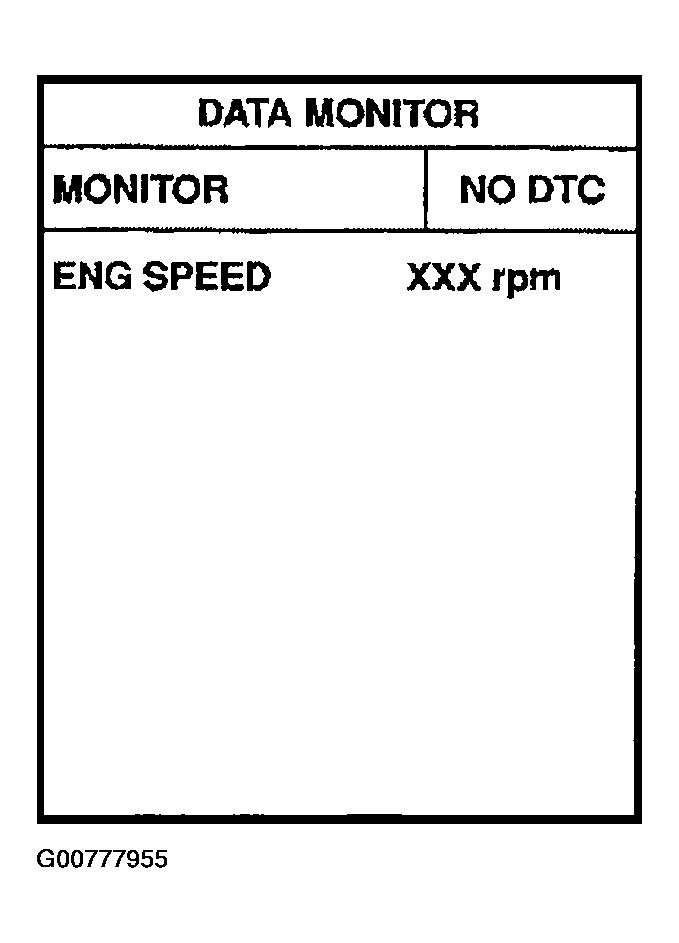

    Fig 1: Selecting Data Monitor Mode With Consult-II
    G00777955Courtesy of NISSAN MOTOR CO., U.S.A.
