Without CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

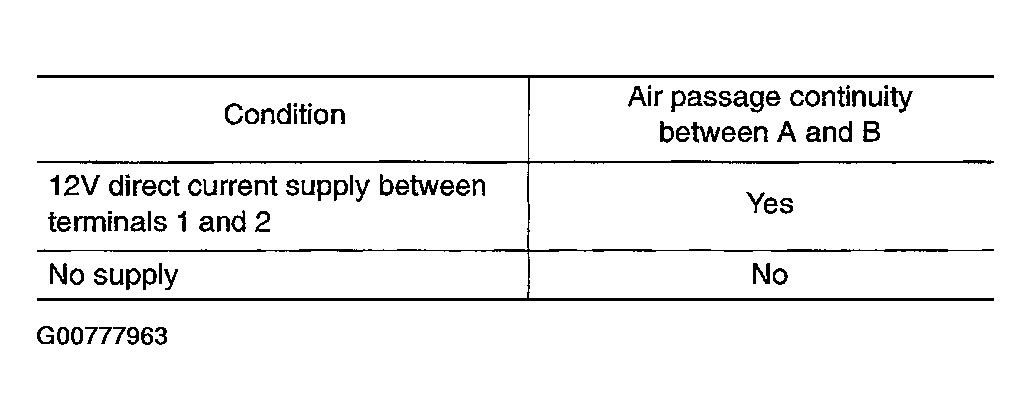

Fig 1: EVAP Canister Purge Volume Control Solenoid Valve Condition Specifications (Without CONSULT-II)

Courtesy of NISSAN MOTOR CO., U.S.A.

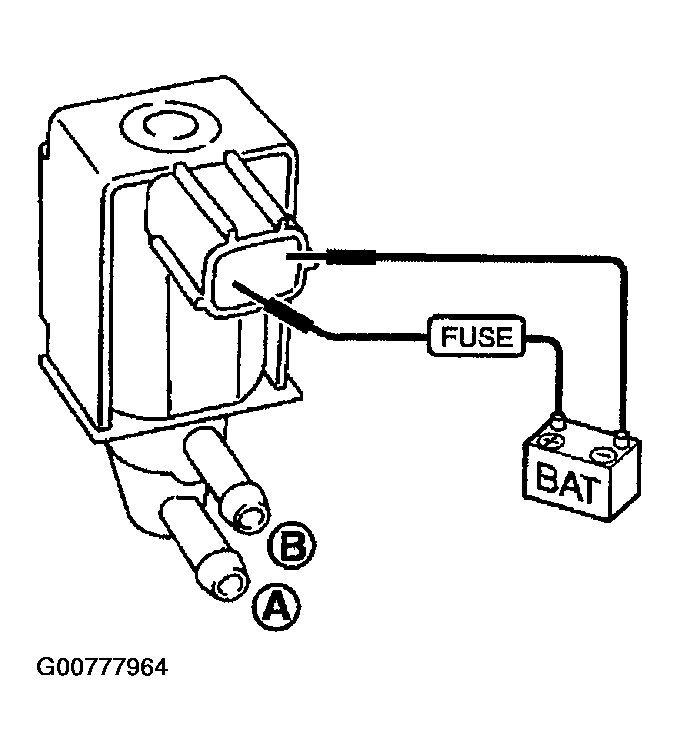

Fig 2: Checking EVAP Canister Purge Volume Control Solenoid Valve (Without CONSULT-II)

Courtesy of NISSAN MOTOR CO., U.S.A.
