On Board Diagnosis Logic

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Under the condition in which the heated oxygen sensor 1 signal is not input, the ECM circuits will read a continuous approximately 0.3V. Therefore, for this diagnosis, the time that output voltage is within 200 to 400 mV range is monitored, and the diagnosis checks that this time is not inordinately long.

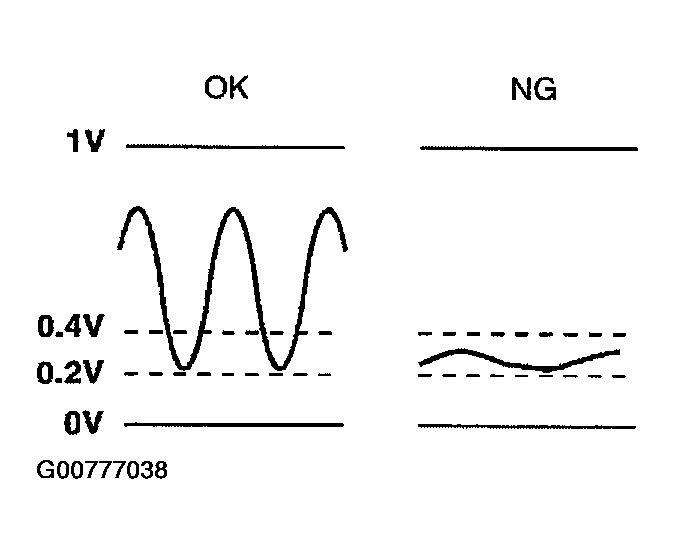

Fig 1: Heated Oxygen Sensor 1 Output Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.

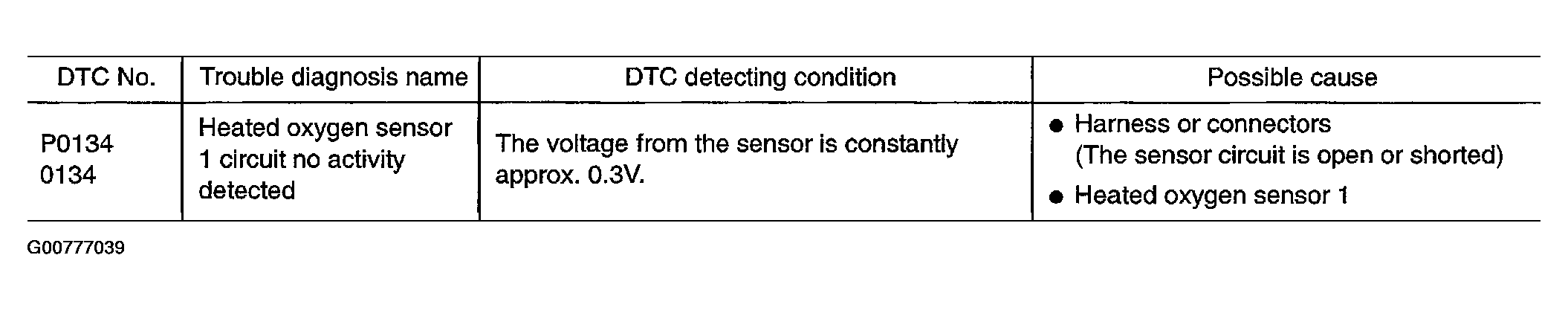

Fig 2: On Board Diagnosis Logic

Courtesy of NISSAN MOTOR CO., U.S.A.
