With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch ON.
Start engine and warm it up to normal operating temperature.
If engine cannot be started, go to "DIAGNOSTIC PROCEDURE ".
Select "DATA MONITOR" mode with CONSULT-II.
Check the voltage of "MAS A/F SE-B1" with "DATA MONITOR".
Increases engine speed to about 4, 000 RPM.
Monitor the linear voltage rise in response to engine speed increases.

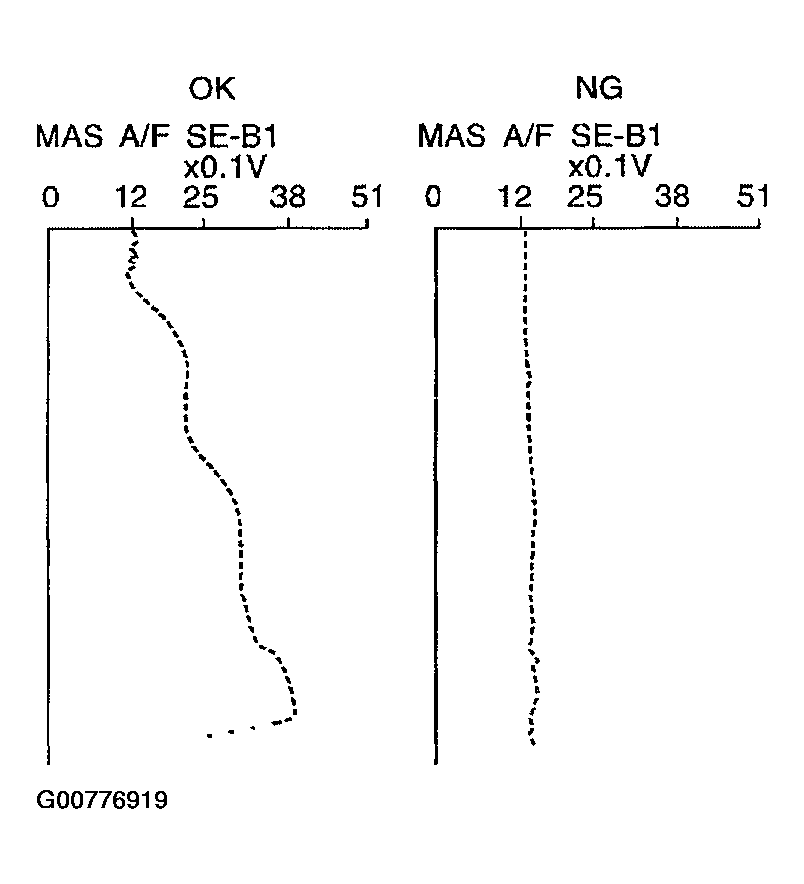

Fig 1: Checking Voltage Of MAS A/F SE-B1
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, go to "DIAGNOSTIC PROCEDURE ".

If OK, go to following step.
Maintain the following conditions for at least 10 consecutive seconds.

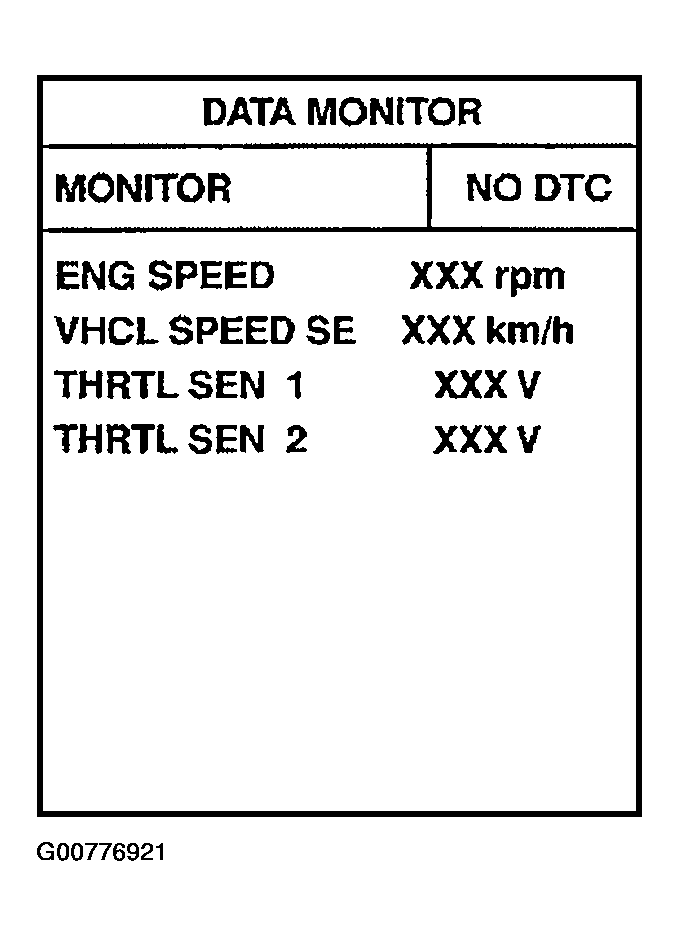

Fig 2: View Of Data Monitor Mode & Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.

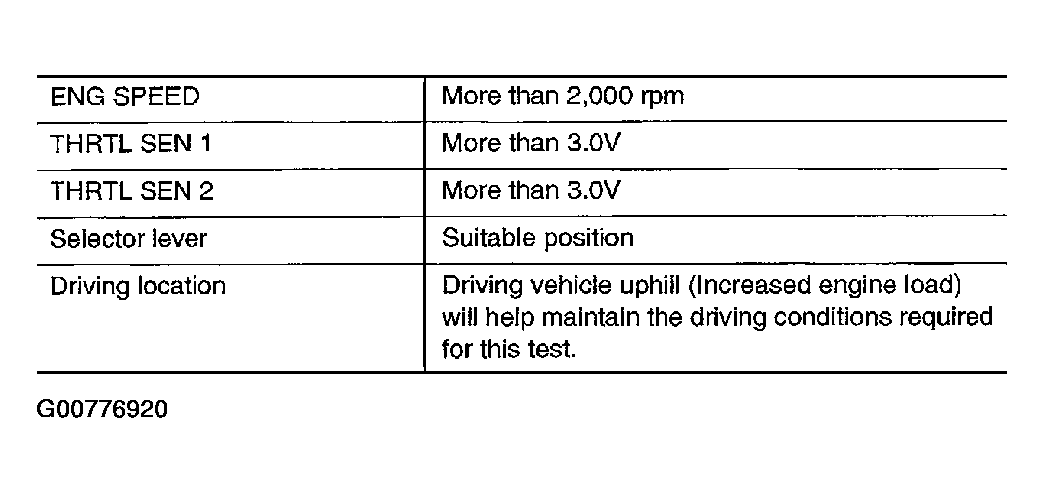

Fig 3: Engine Speed, Throttle Sensor, Selector Lever & Driving Location Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
