Eng Speed, Mas A/F Se-B1, THRTL Sen 1, Ho2S2 (B1), INJ Pulse-B1

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Below is the data for "ENG SPEED", "MAS A/F SE-B1", "THRTL SEN 1", "HO2S2 (B1/B2)" and "INJ PULSE" when revving engine quickly up to 4, 800 RPM under no load after warming up engine to normal operating temperature.

Each value is for reference, the exact value may vary.

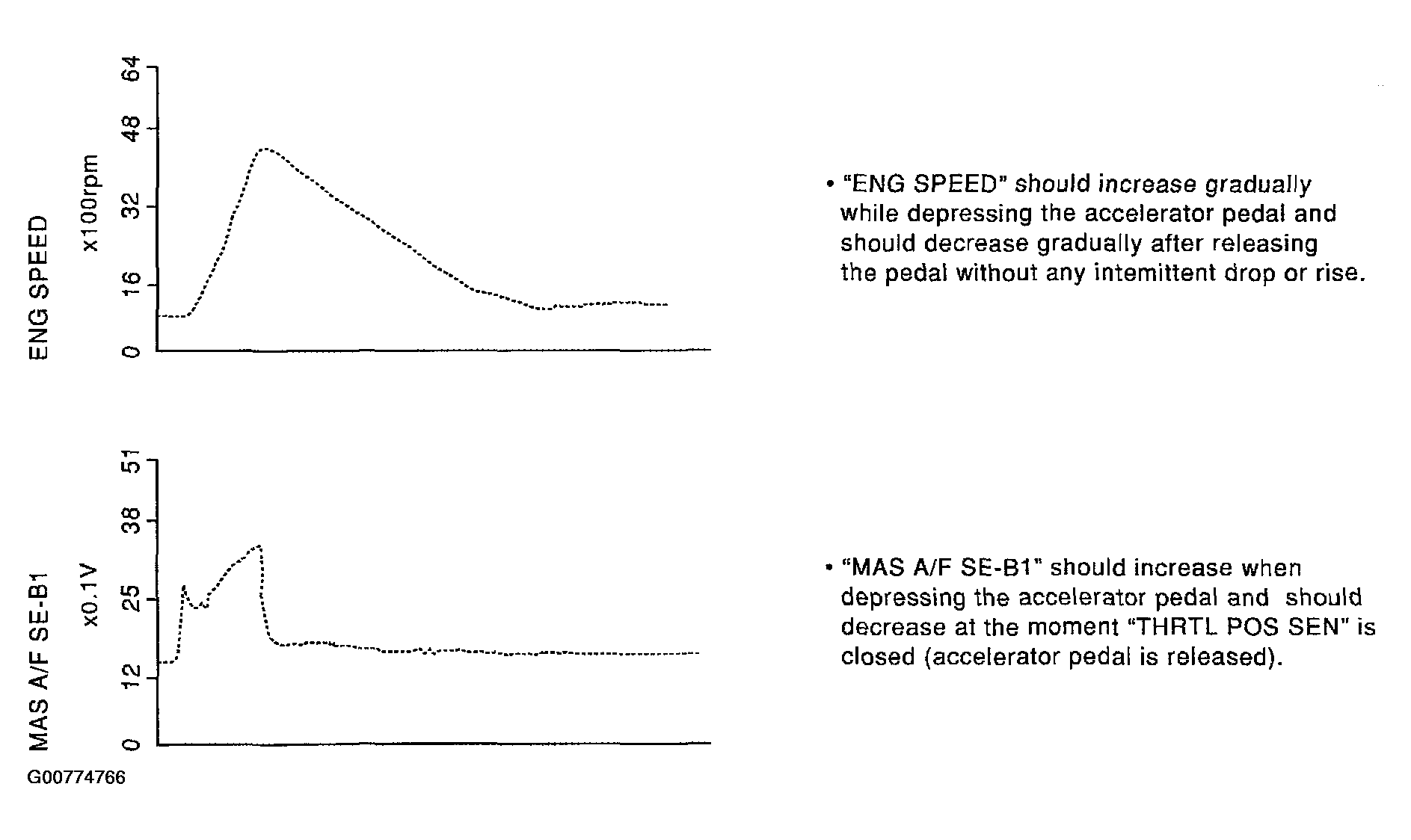

Fig 1: ENG SPEED", "MAS A/F SE-B1 Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

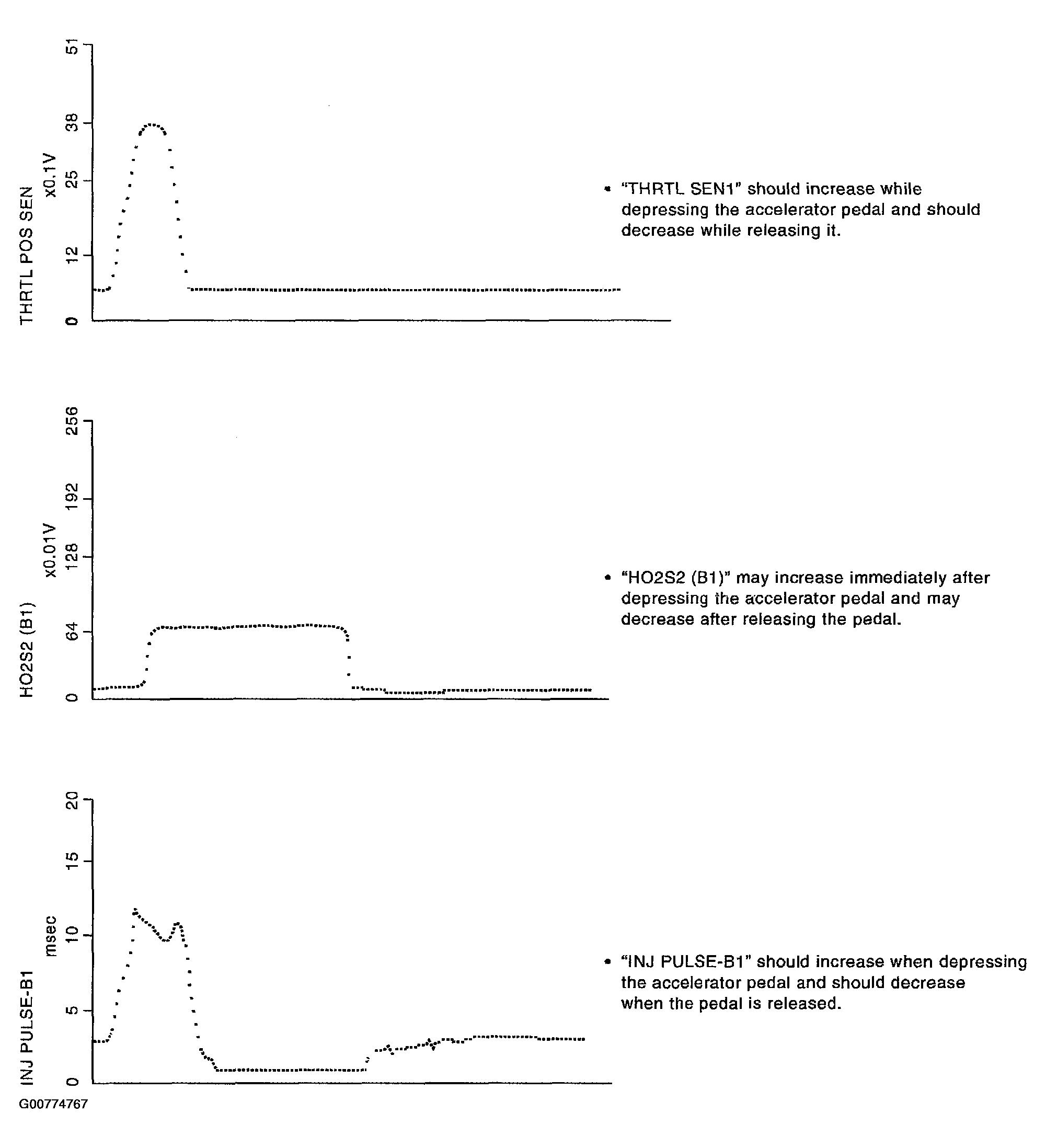

Fig 2: THRTL SEN 1", "HO2S2 (B1/B2)" And "INJ Pulse Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
