Relationship Between Mil, DTC, 1ST Trip DTC And Driving Patterns Except For Misfire < Exhaust Quality Deterioration >, Fuel Injection System

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

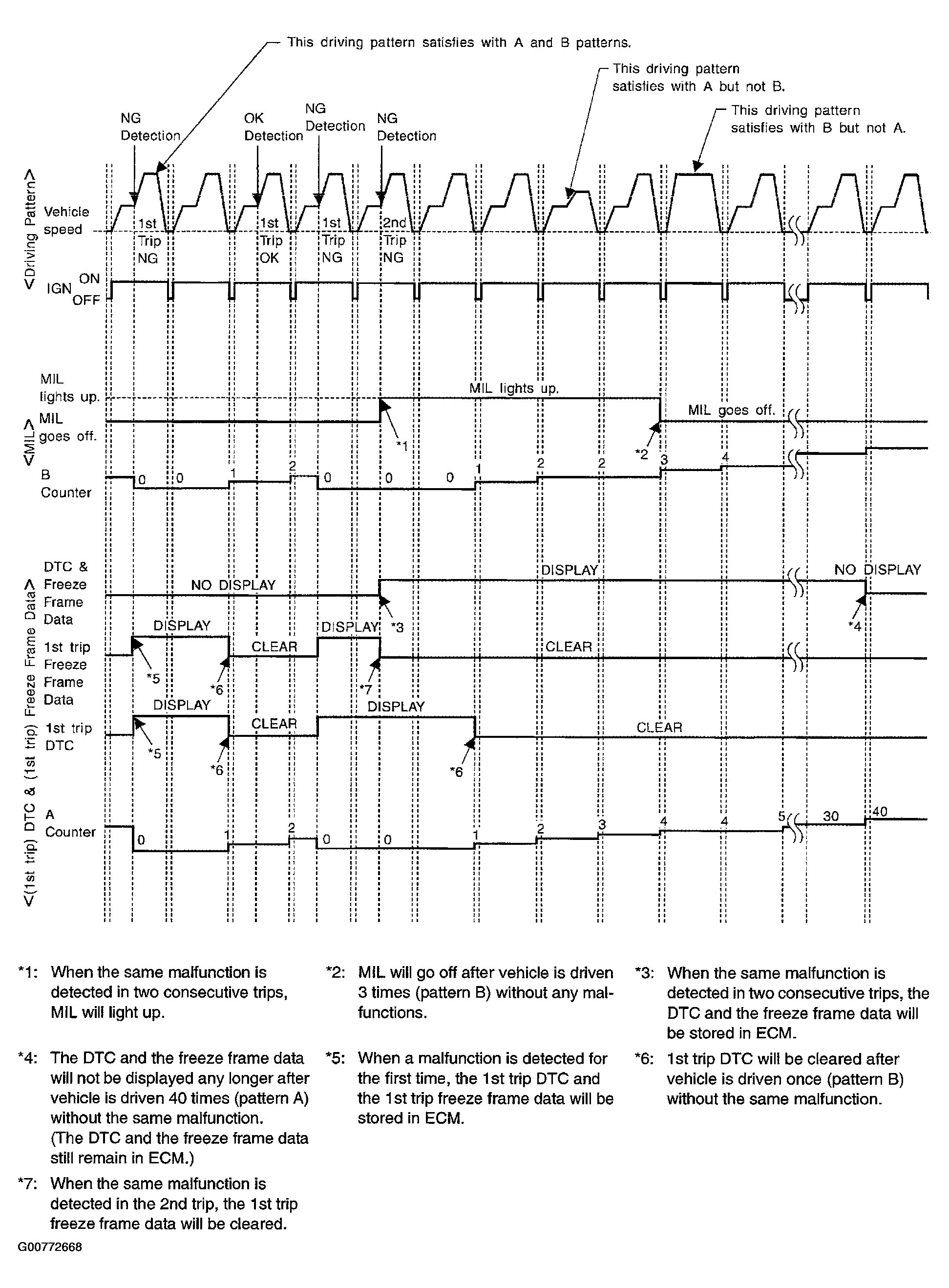

Fig 1: Fuel Injection System
G00772668Courtesy of NISSAN MOTOR CO., U.S.A.
