Fuel Pump Relay

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals 3 and 5.

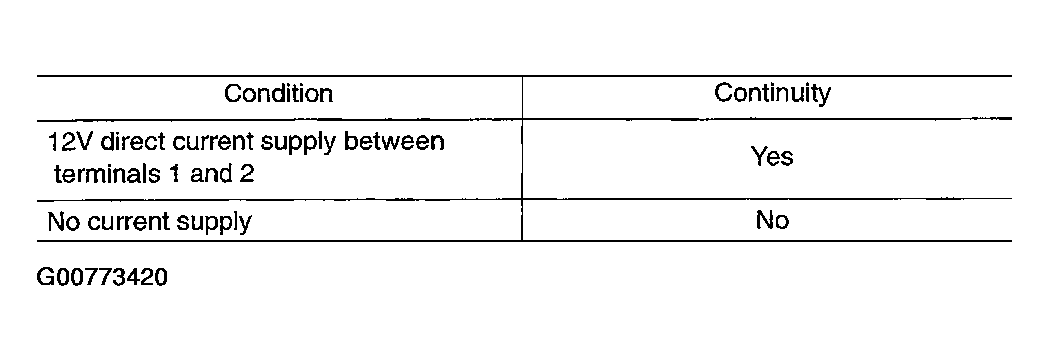

Fig 1: Fuel Pump Relay Continuity Conditions Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace relay.

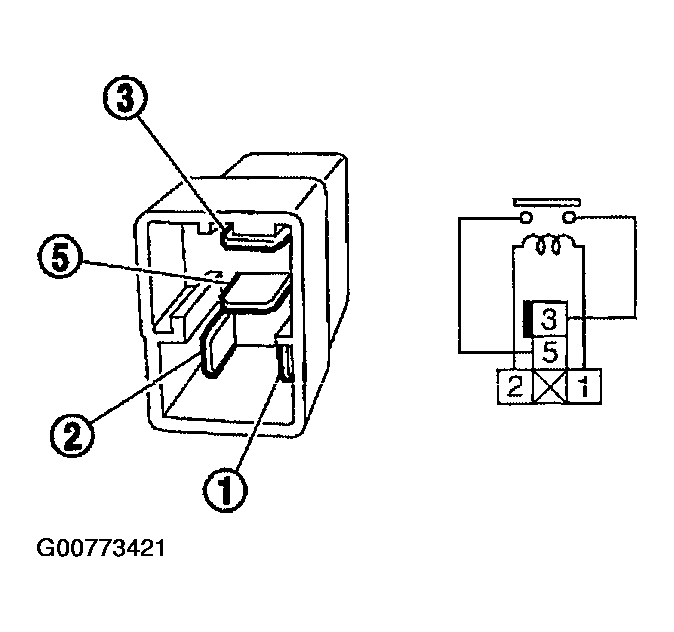

Fig 2: Checking Fuel Pump Relay Continuity Between Terminals 3 And 5

Courtesy of NISSAN MOTOR CO., U.S.A.
