WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

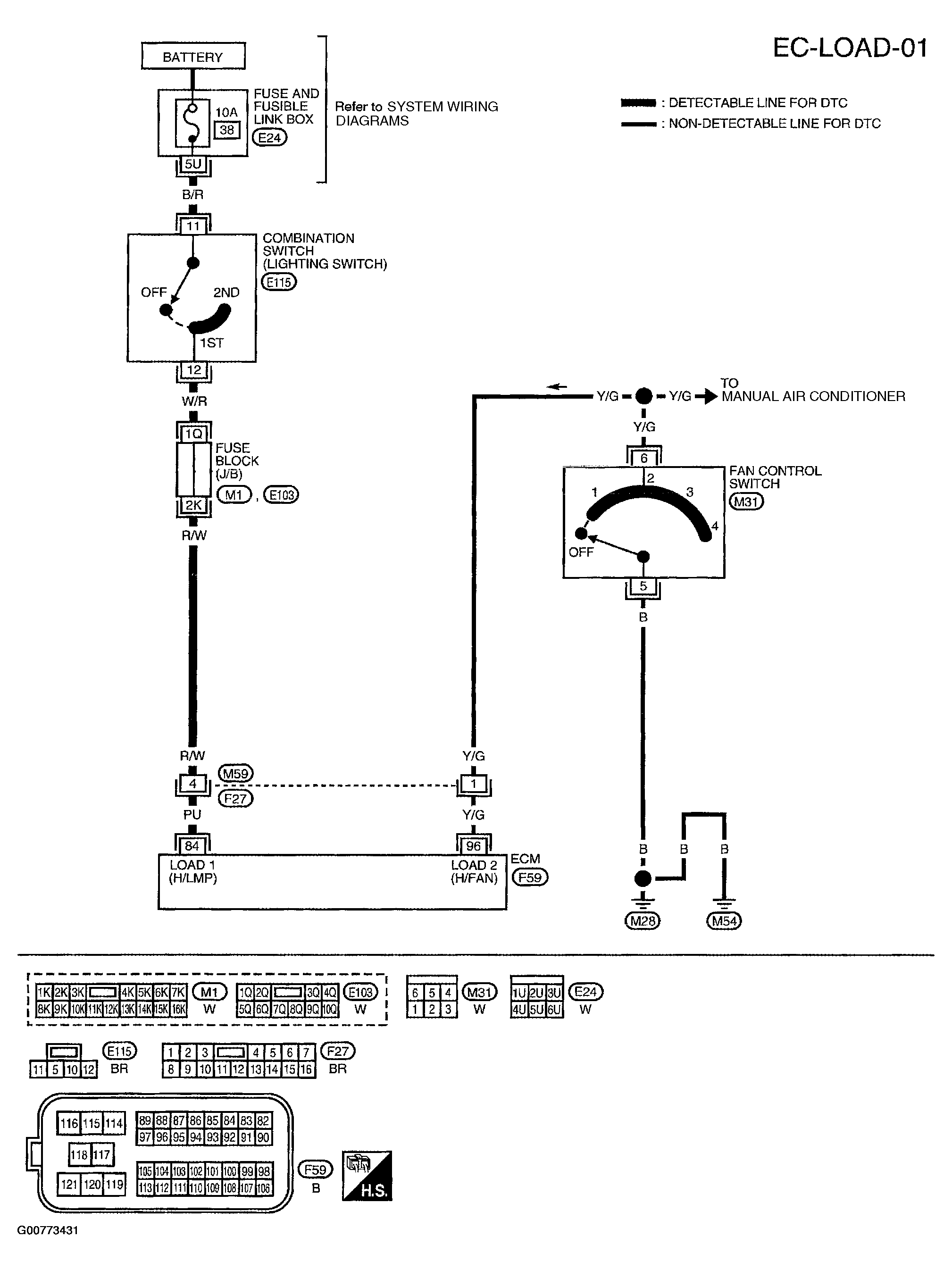

Fig 1: Wiring Diagram - Electrical Load Signal (SULEV Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 1: Wiring Diagram - Electrical Load Signal (SULEV Models)
