Stop Lamp Switch

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect stop lamp switch harness connector.

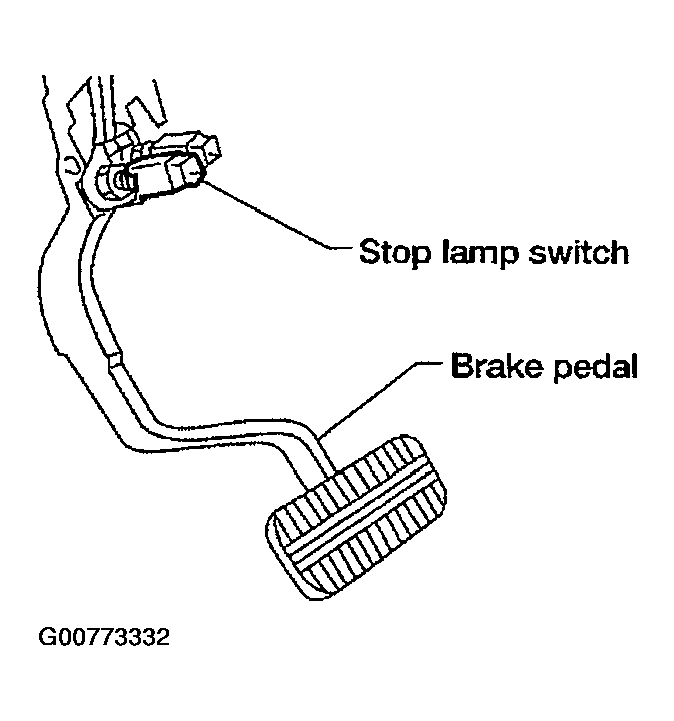

Fig 1: Disconnecting Stop Lamp Switch Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Check continuity between stop lamp switch terminal 1 and 2 (A/T models),+ and - (M/T models) under the following conditions.

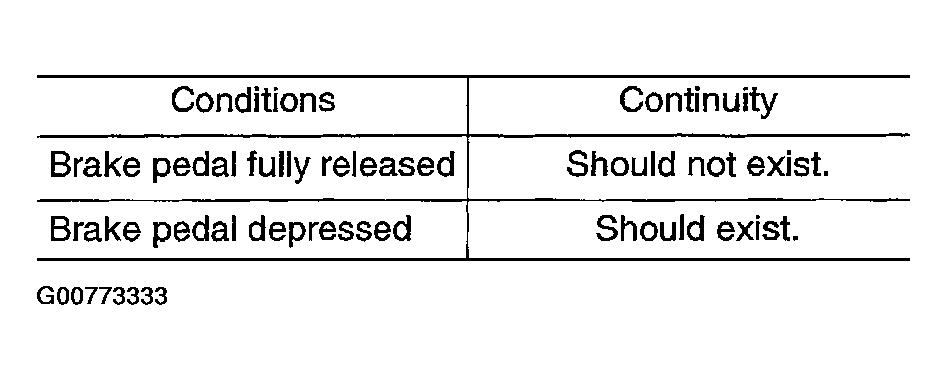

Fig 2: Stop Lamp Switch Terminal Continuity Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust brake pedal installation, refer to BRAKE BOOSTER and perform step 2 again.

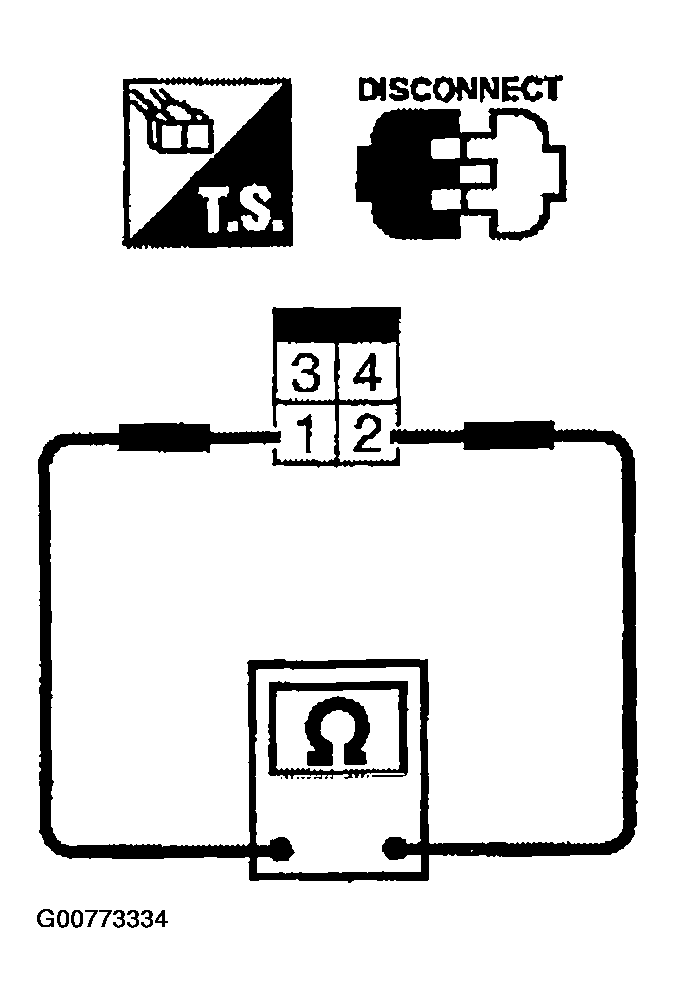

Fig 3: Checking Continuity Between Stop Lamp Switch Terminal 1 And 2 (A/T Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

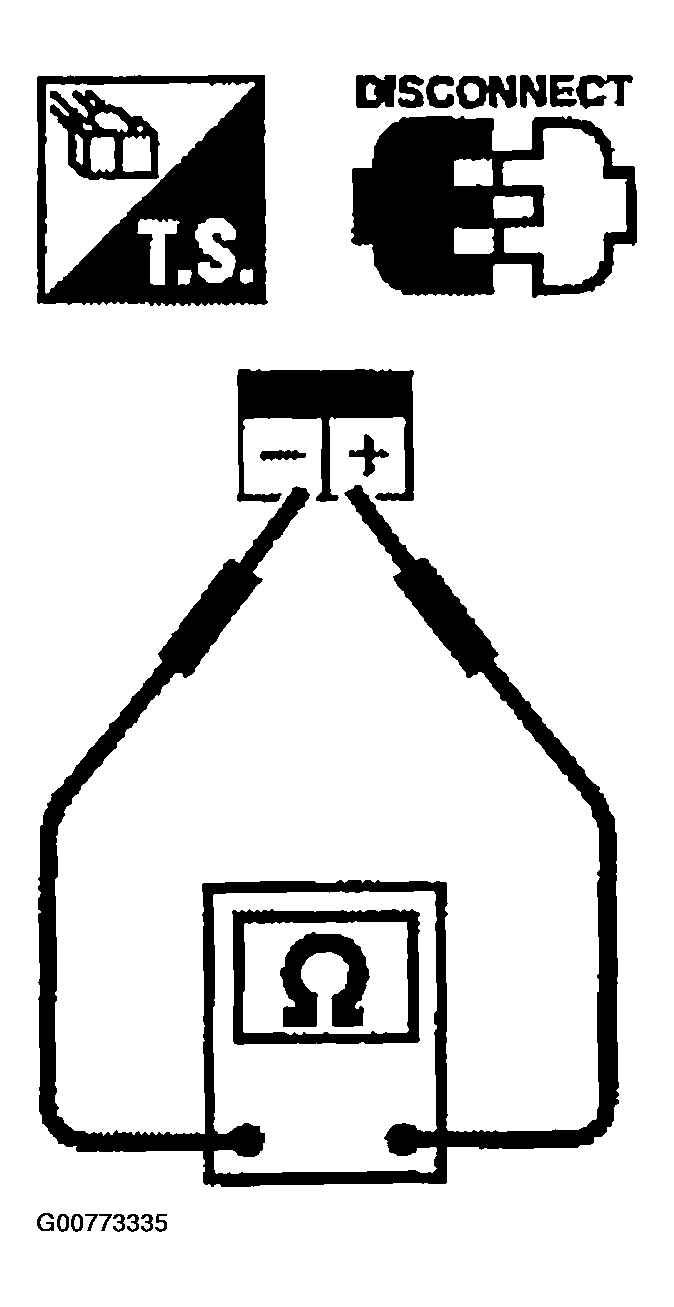

Fig 4: Checking Continuity Between Stop Lamp Switch Terminal + And - (M/T Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
