EVAP Canister Purge Volume Control Solenoid Valve

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

With CONSULT-II

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

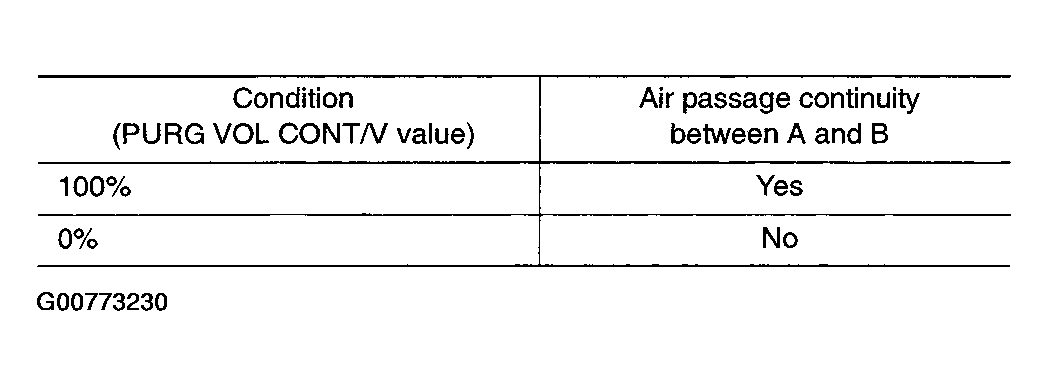

Fig 1: Air Passage Continuity Conditions Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

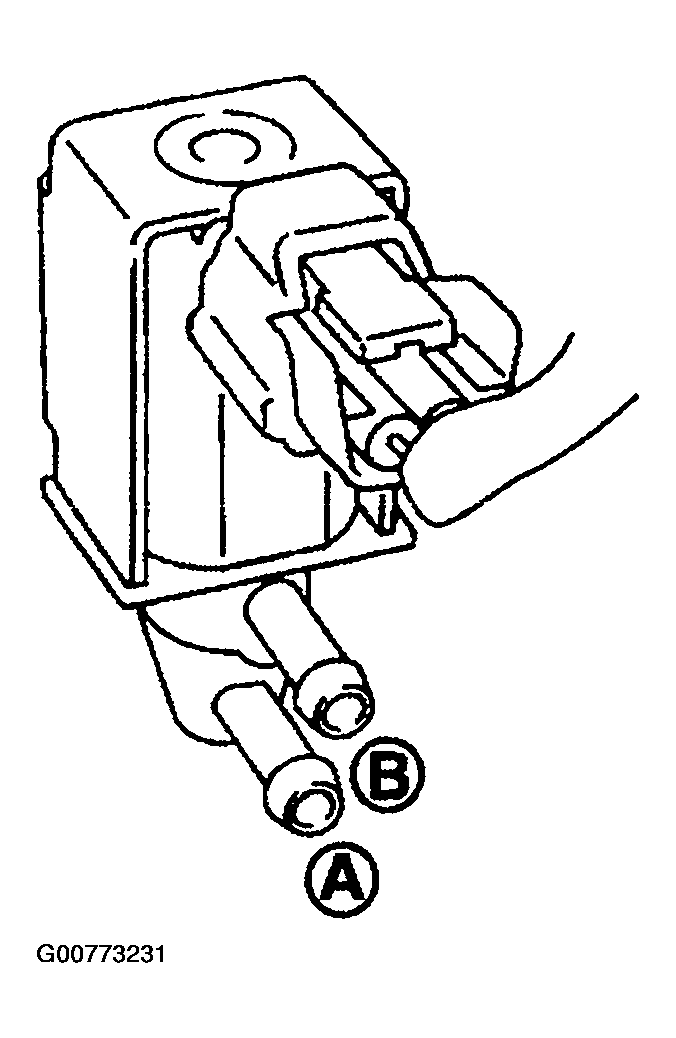

Fig 2: Checking Air Passage Continuity Between A And B

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

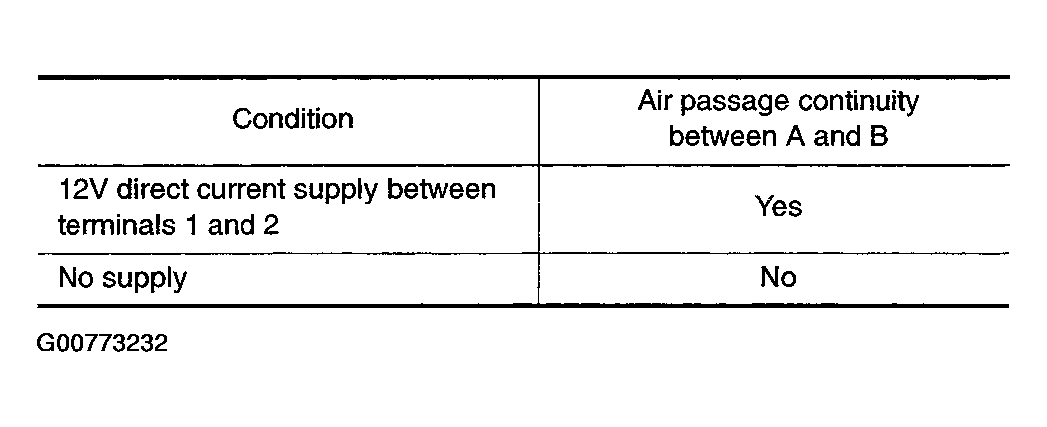

Fig 3: Air Passage Continuity Conditions Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

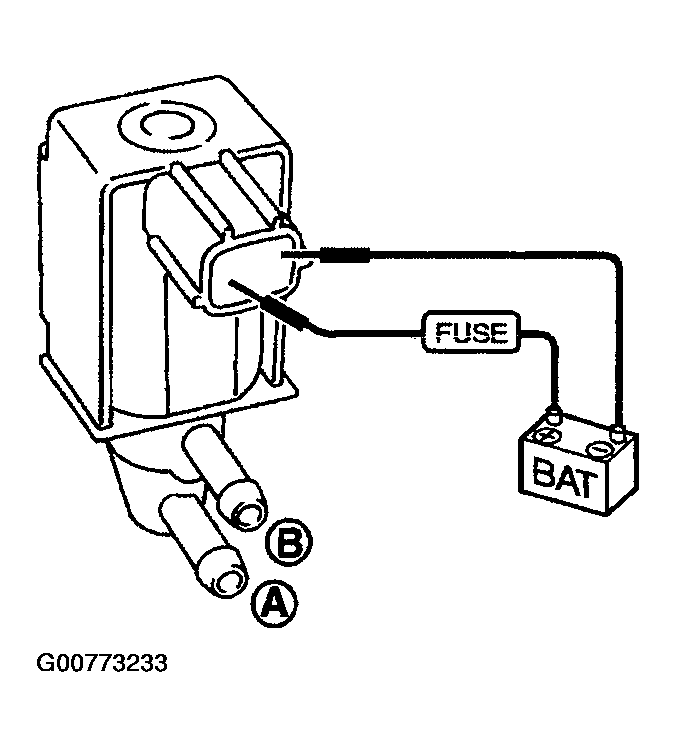

Fig 4: Supplying 12V Current Between EVAP Canister Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.
