Cooling Fan Motor-1

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect cooling fan motor harness connectors.
Supply cooling fan motor terminals with battery voltage and check operation.

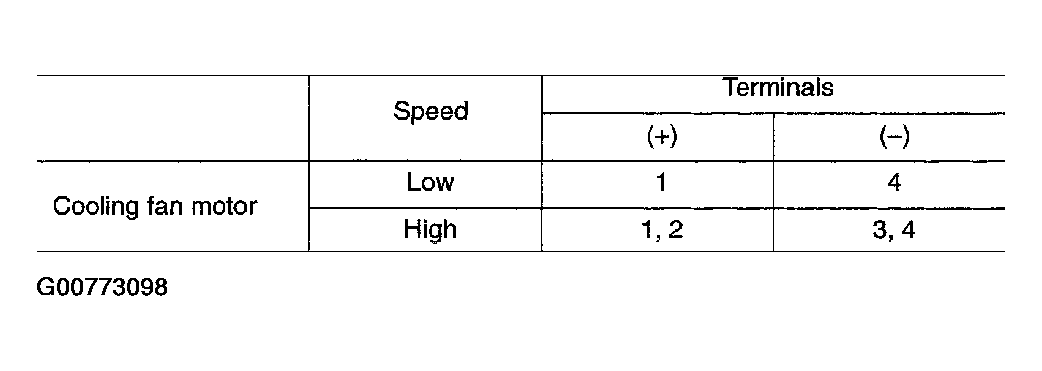

Fig 1: Cooling Fan Motor Operation Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

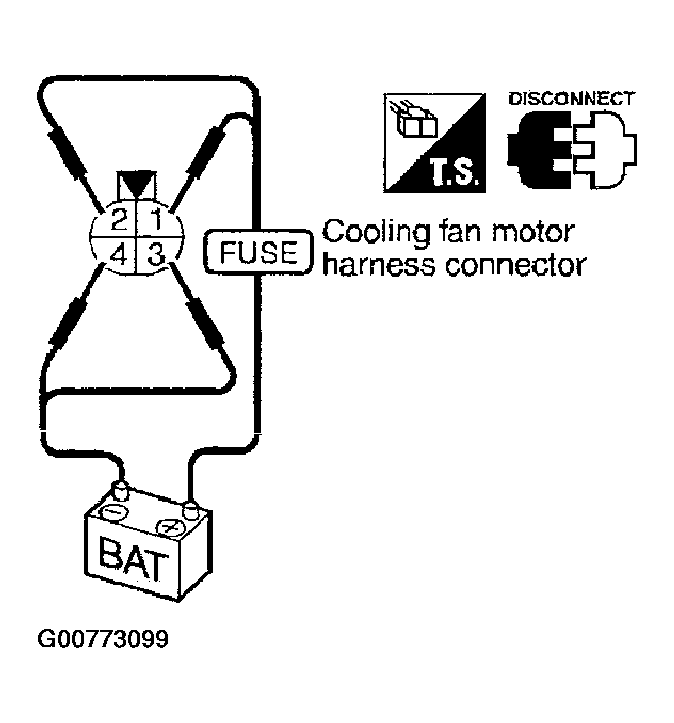

Fig 2: Supplying Battery Voltage To Cooling Fan Motor Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

Cooling fan motor should operate.

If NG, replace cooling fan motor.
