DTC P1111: IVT Control Solenoid Valve: Wiring Diagram

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

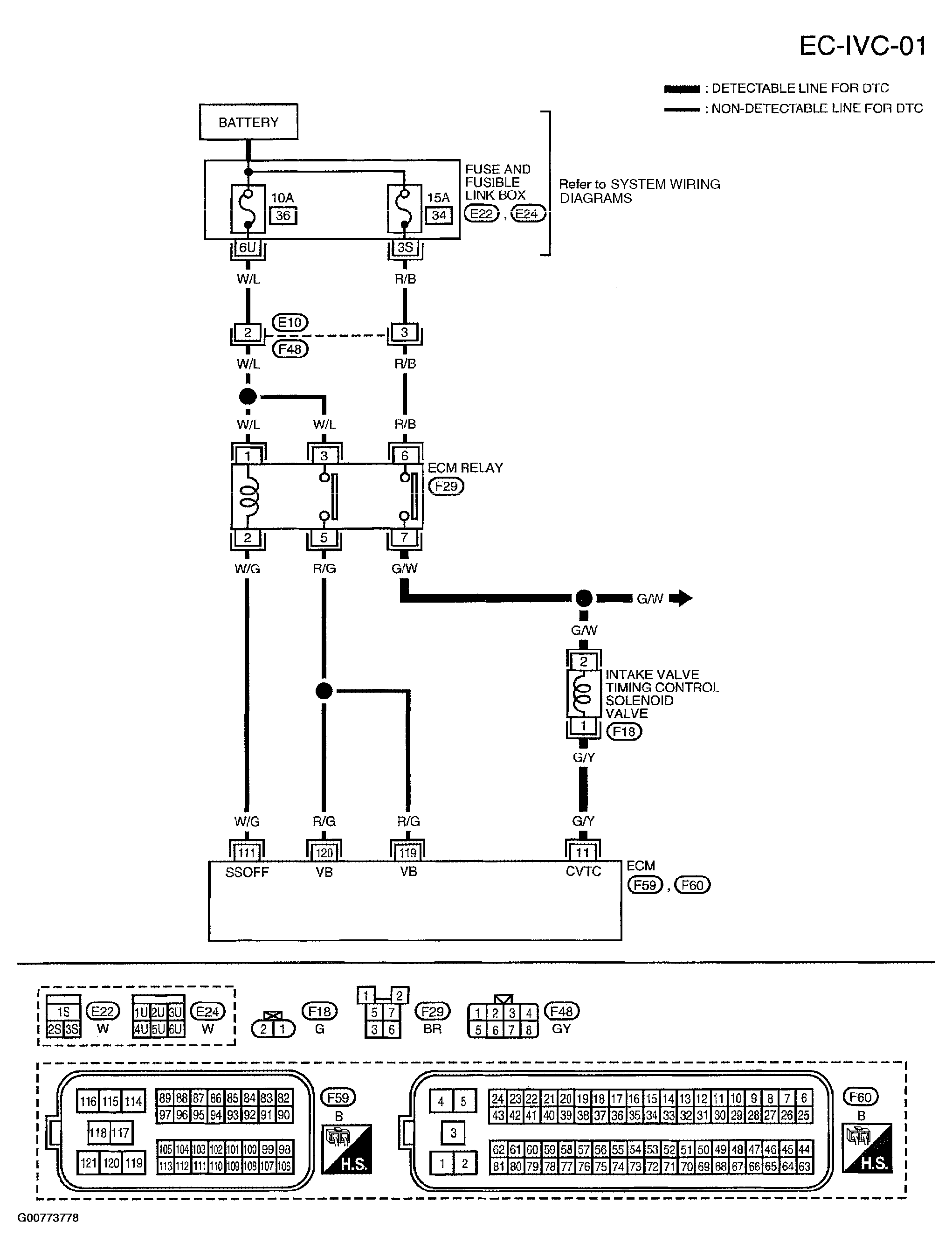

Fig 1: Wiring Diagram - Intake Valve Timing Control Solenoid Valve

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

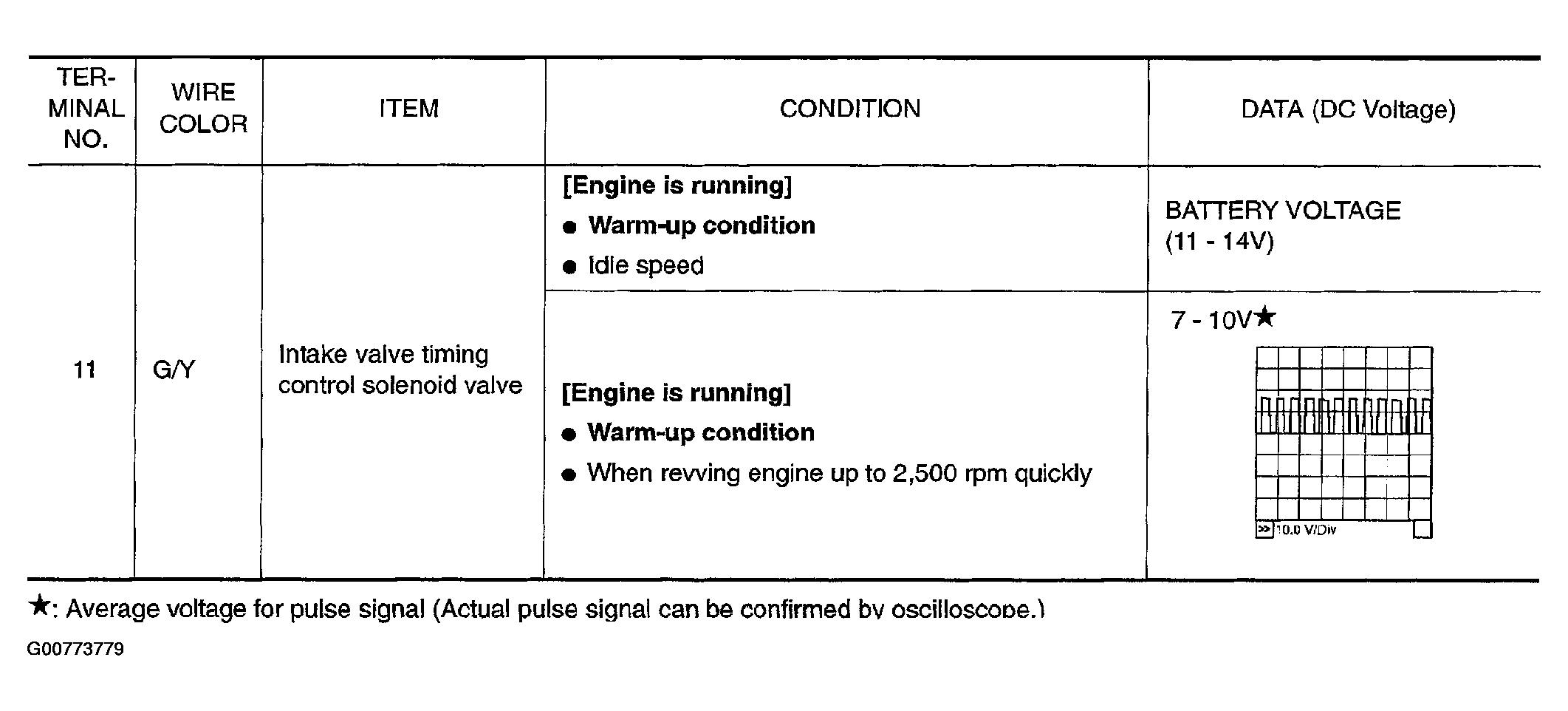

Fig 2: ECM Terminals Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
