DTC Confirmation Procedure

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

WITH CONSULT-II

Turn ignition switch ON.
Select "DATA MONITOR" mode with CONSULT-II.
Start engine and let it idle for 5 seconds.
If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE

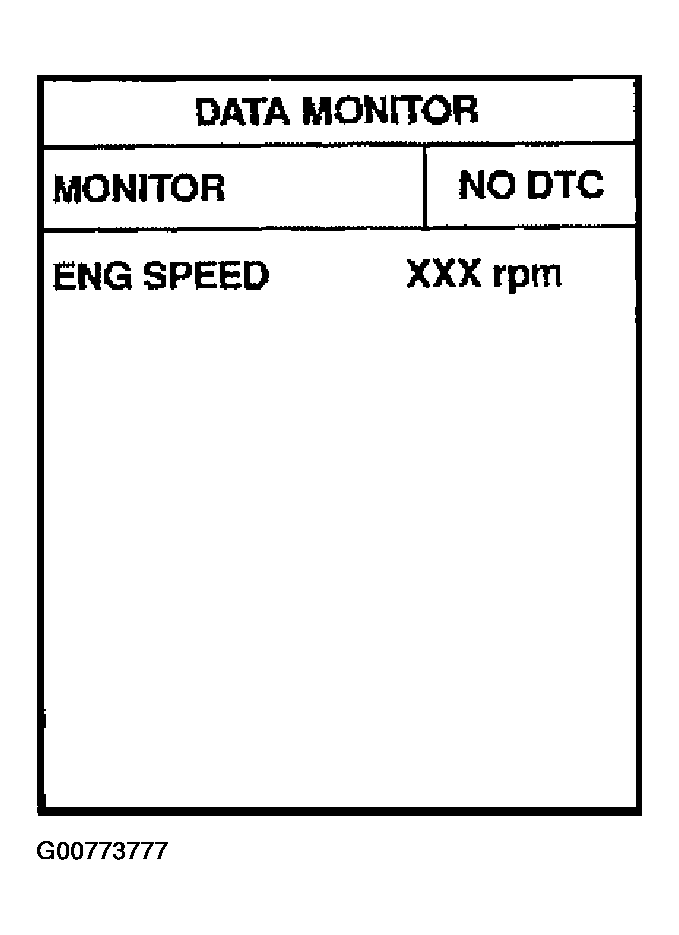

Fig 1: Displaying DATA MONITOR Mode
Courtesy of NISSAN MOTOR CO., U.S.A.

WITH GST

Following the procedure "WITH CONSULT-II" above.
