Intake Valve Timing Control Solenoid Valve

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect intake valve timing control solenoid valve harness connector.
Check resistance between intake valve timing control solenoid valve terminals 1 and 2 under the following conditions.

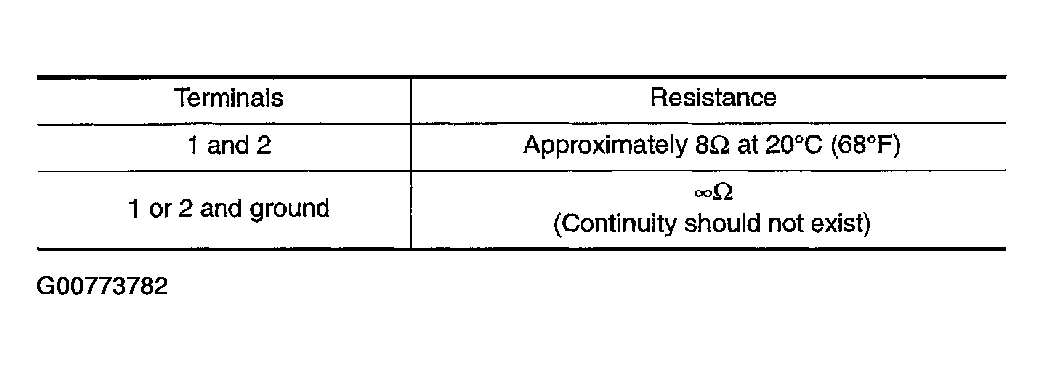

Fig 1: Intake Valve Timing Control Solenoid Valve Terminals 1 And 2 Resistance Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

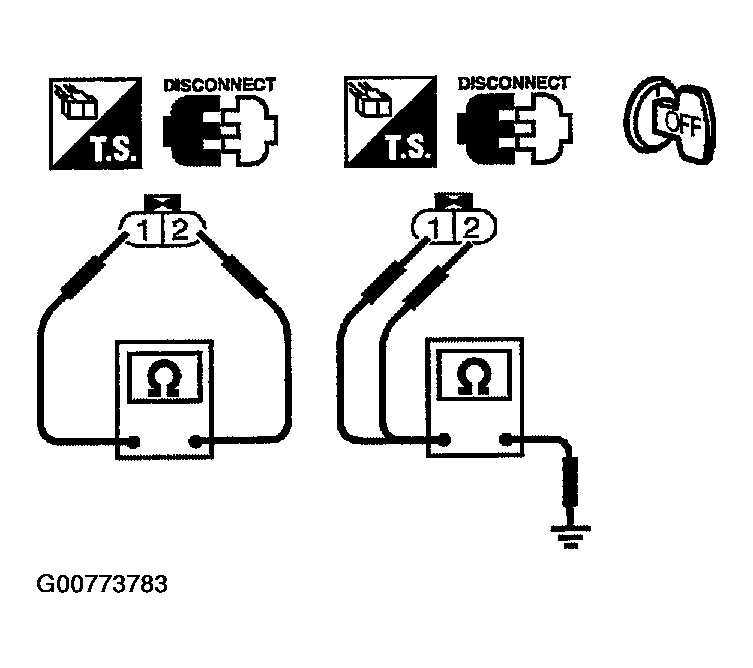

Fig 2: Checking Resistance Between Intake Valve Timing Control Solenoid Valve Terminals 1 And 2
Courtesy of NISSAN MOTOR CO., U.S.A.
