Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ECM POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check voltage between ECM terminal 121 and ground with CONSULT-II or tester.
  1. Voltage: Battery voltage
OK or NG
1. OK: GO TO 3.
2. NG: GO TO 2.

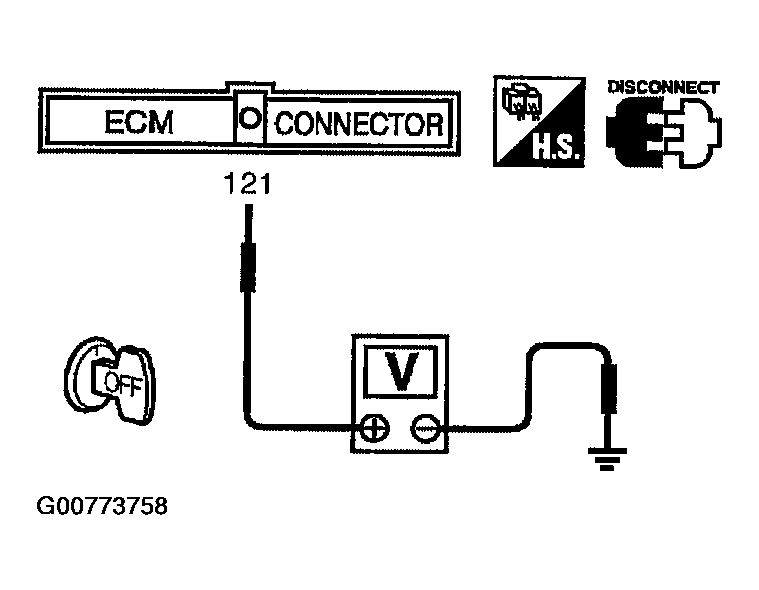

Fig 1: Checking Voltage Between ECM Terminal 121 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E10, F48
- 10A fuse
- Harness for open or short between ECM and battery
  1. Repair or replace harness or connectors.
CHECK INTERMITTENT INCIDENT
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

OK or NG
1. OK: GO TO 4.
2. NG: Repair open circuit short to ground or short to power in harness or connectors.
Perform DTC CONFIRMATION PROCEDURE
With CONSULT-II
1. Turn ignition switch ON.
2. Select "SELF DIAG RESULTS" mode with CONSULT-II.
3. Touch "ERASE".
4. Perform DTC CONFIRMATION PROCEDURE .
  See DTC P1065 ECM POWER SUPPLY .
5. Is the 1st trip DTC P1065 displayed again?
With GST
1. Turn ignition switch ON.
2. Select MODE 4 with GST.
3. Touch "ERASE".
4. Perform DTC CONFIRMATION PROCEDURE .
  See DTC P1065 ECM POWER SUPPLY .
5. Is the 1st trip DTC P1065 displayed again?
Yes or No
1. Yes: GO TO 5.
2. No:INSPECTION END
REPLACE ECM
1. Replace ECM.
2. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING .
3. Perform THROTTLE VALVE CLOSED POSITION LEARNING .
4. Perform IDLE AIR VOLUME LEARNING .
  1. INSPECTION END
