EVAP Canister Vent Control Valve

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

With CONSULT-II

Remove EVAP canister vent control valve from EVAP canister.
Check portion B of EVAP canister vent control valve for being rusted.
If NG, replace EVAP canister vent control valve.

If OK, go to next step.
Reconnect harness connectors disconnected.
Turn ignition switch ON.

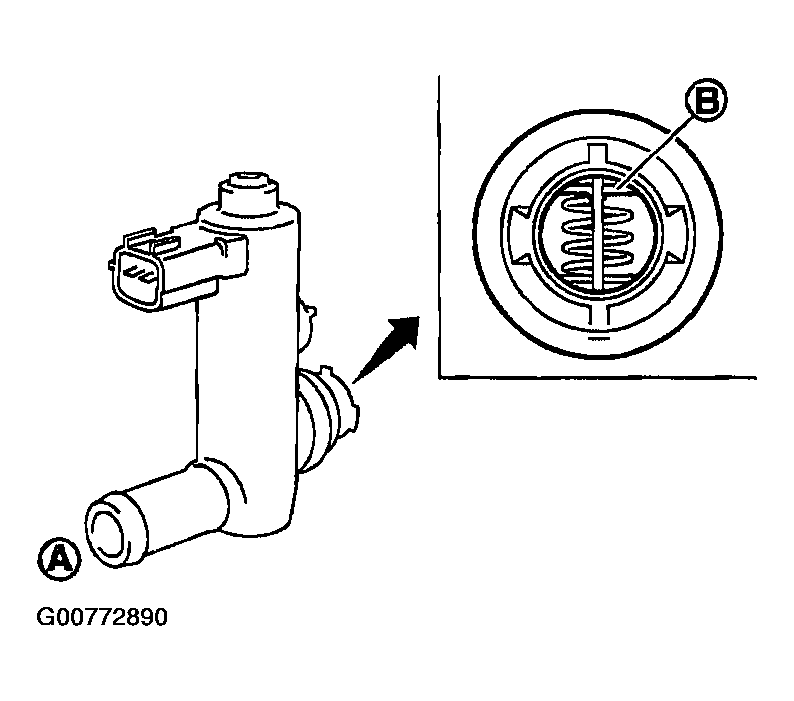

Fig 1: Checking Portion B Of EVAP Canister Vent Control Valve With CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform "VENT CONTROL/V" in "ACTIVE TEST" mode.
Check air passage continuity and operation delay time.
Make sure new O-ring is installed properly.

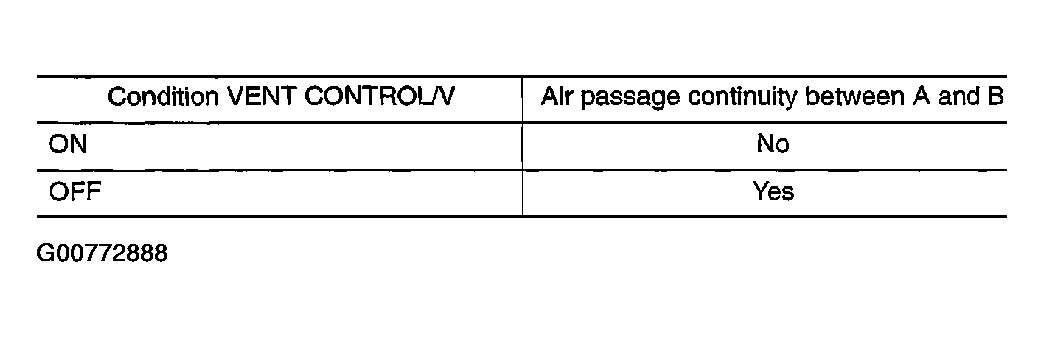

Fig 2: Passage Continuity Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second.

If NG, replace EVAP canister vent control valve.

If OK, go to next step.

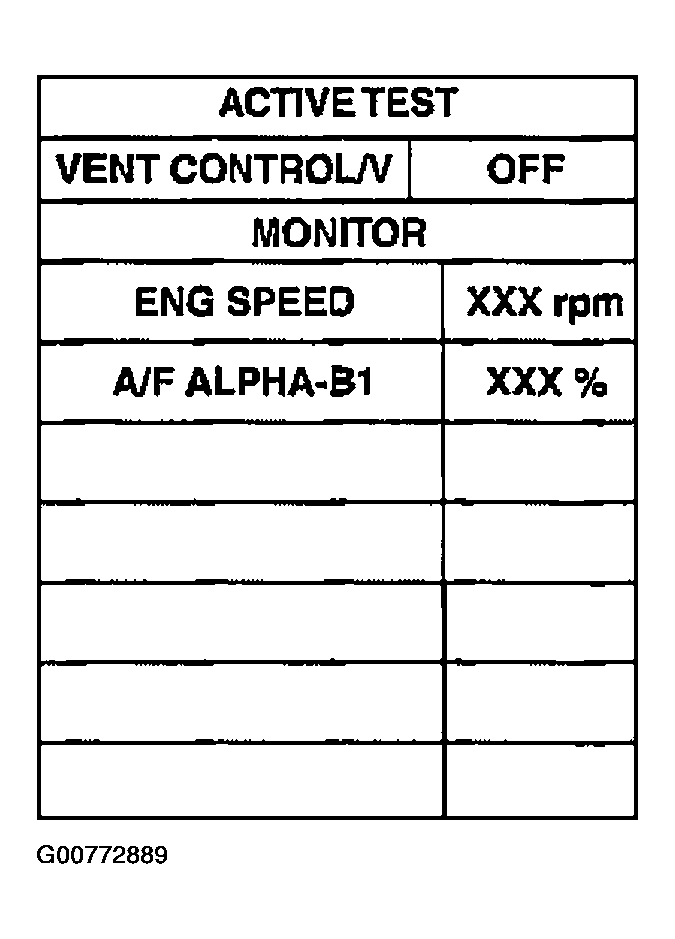

Fig 3: CONSULT-II Display Active Test
Courtesy of NISSAN MOTOR CO., U.S.A.
Clean the air passage (Portion A to B ) of EVAP canister vent control valve using an air blower.
Perform step 6 again.

Without CONSULT-II

Remove EVAP canister vent control valve from EVAP canister.
Check portion B of EVAP canister vent control valve for being rusted.

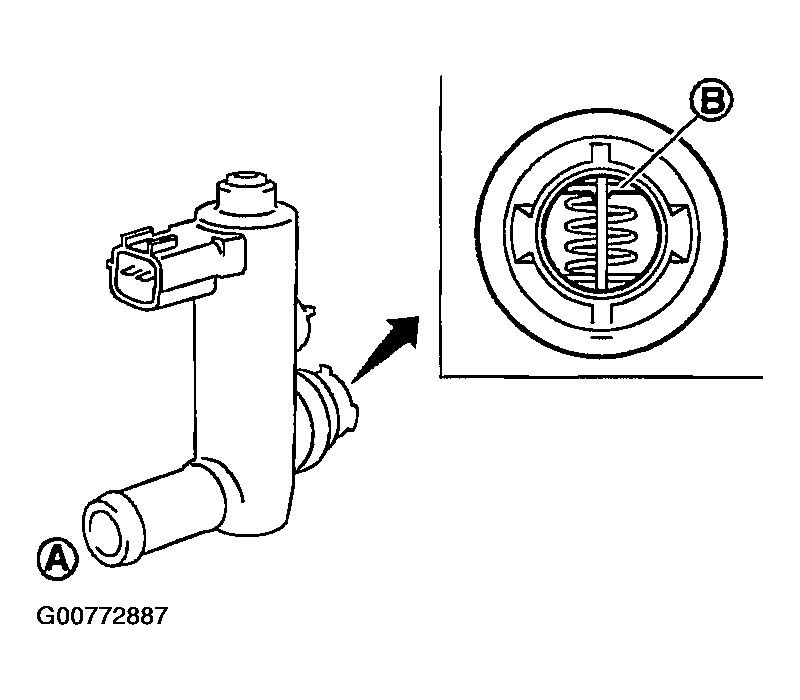

Fig 4: Checking Portion B Of EVAP Canister Vent Control Valve Without CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Check air passage continuity and operation delay time under the following conditions.
Make sure new O-ring is installed properly.

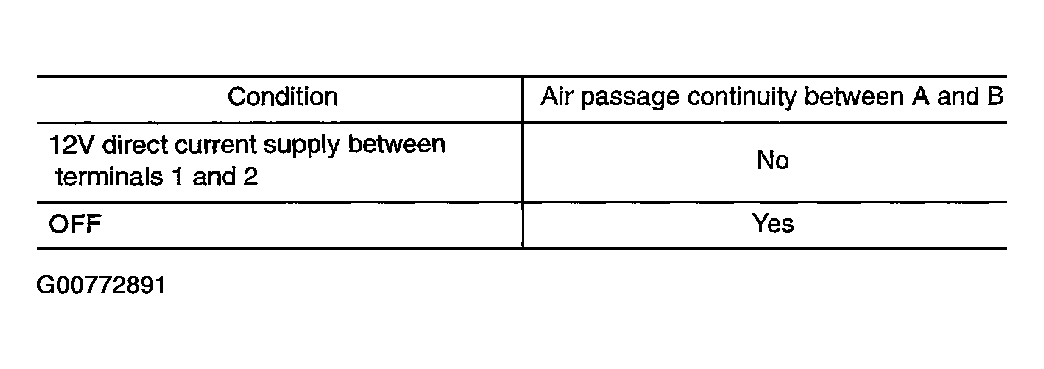

Fig 5: Passage Continuity Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second.

If NG, replace EVAP canister vent control valve.

If OK, go to next step.

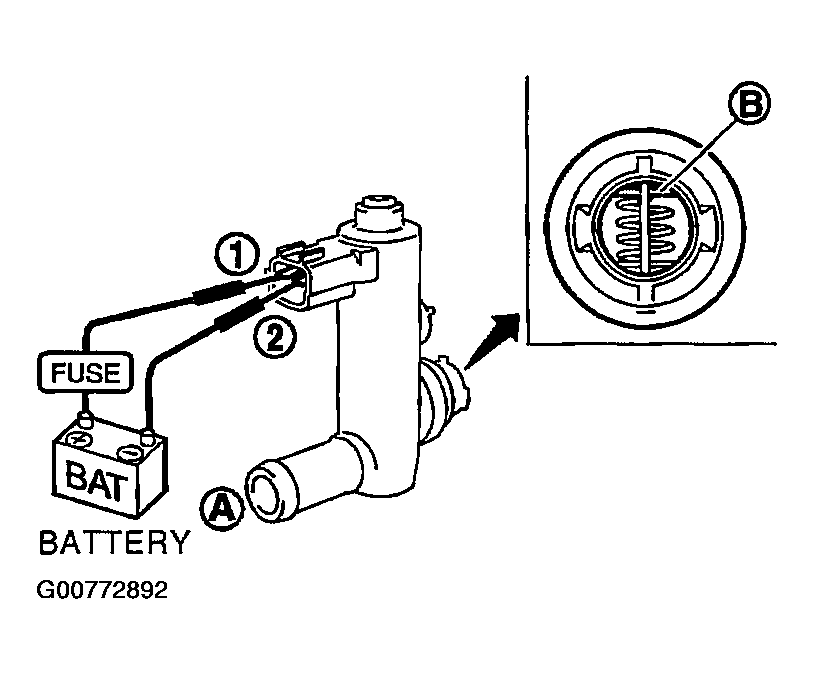

Fig 6: Checking Air Passage Continuity And Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
Clean the air passage (Portion A to B ) of EVAP canister vent control valve using an air blower.
Perform step 3 again.
