DTC Confirmation Procedure

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION

Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

With CONSULT-II

Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
Start engine and run it for at least 5 seconds at idle speed.
If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE

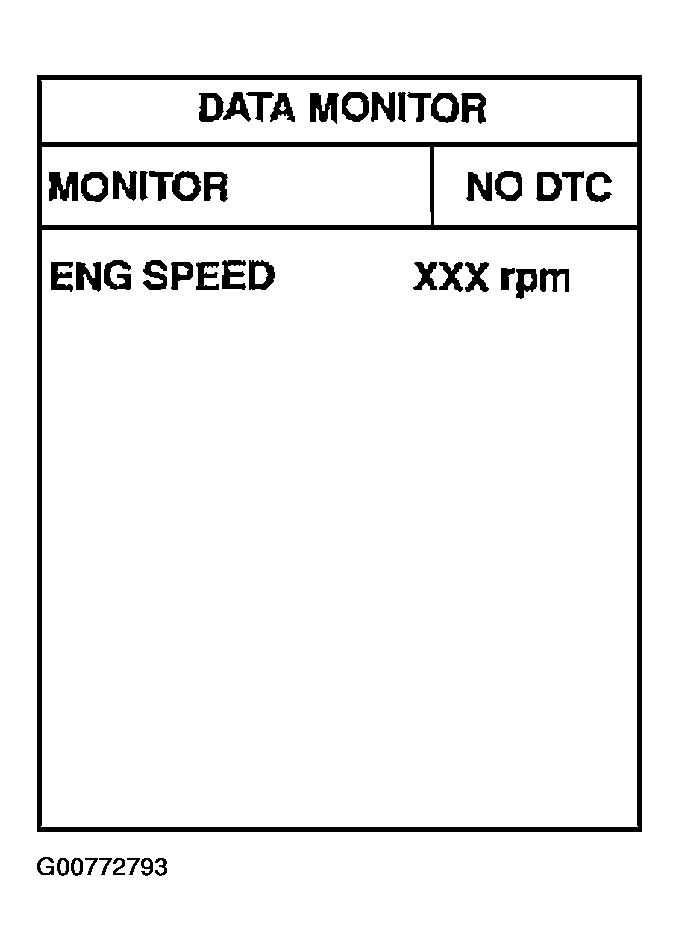

Fig 1: CONSULT-II Display Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

With GST

Follow the procedure "With CONSULT-II" above.
