Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Accelerator Pedal Position Sensor

For component inspection, see Fig 1.

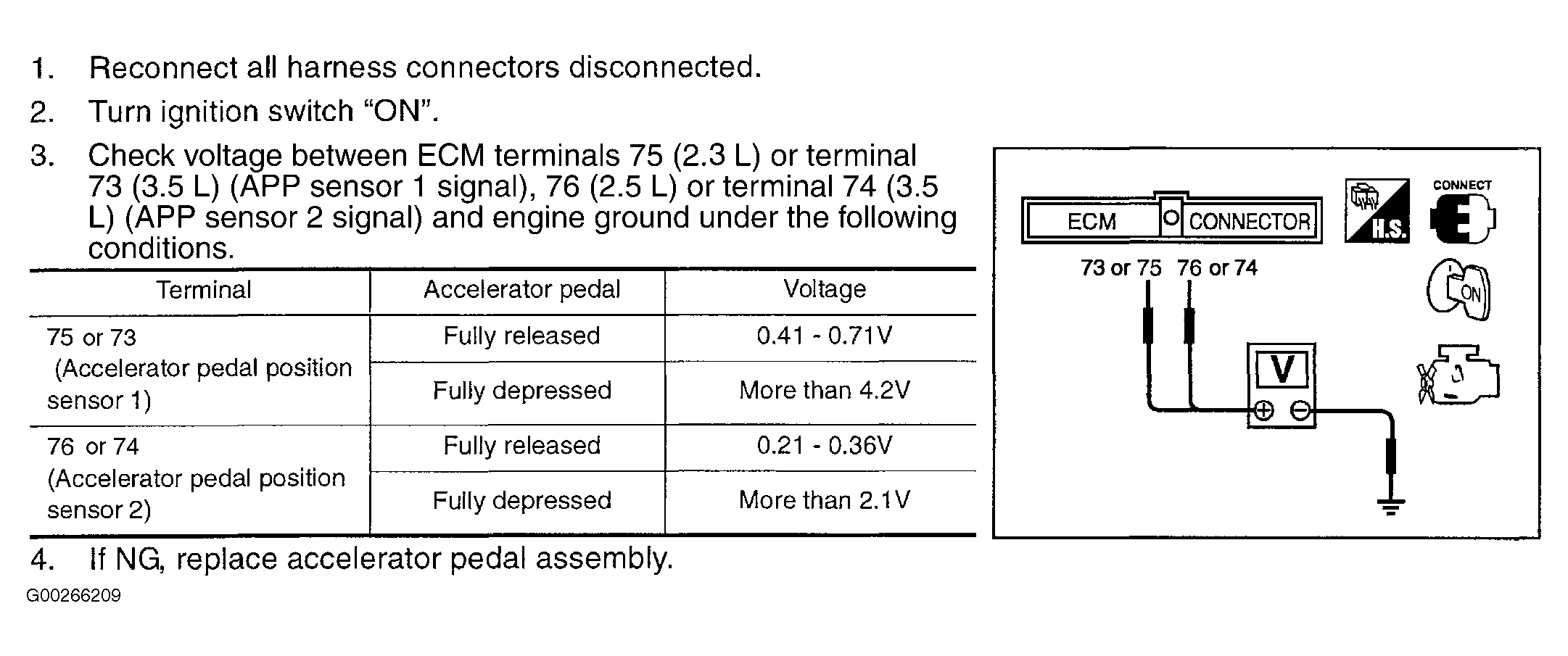

Fig 1: Component Inspection For DTC P2138: APP Sensor
G00266209Courtesy of NISSAN MOTOR CO., U.S.A.
