Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For accelerator pedal released position learning, see ACCELERATOR PEDAL RELEASED POSITION LEARNING , for throttle valve closed position learning, see THROTTLE VALVE CLOSED POSITION LEARNING and for idle air volume learning, see IDLE AIR VOLUME LEARNING .

Accelerator Pedal Position Sensor (2.5L)

For component inspection, see Fig 1.

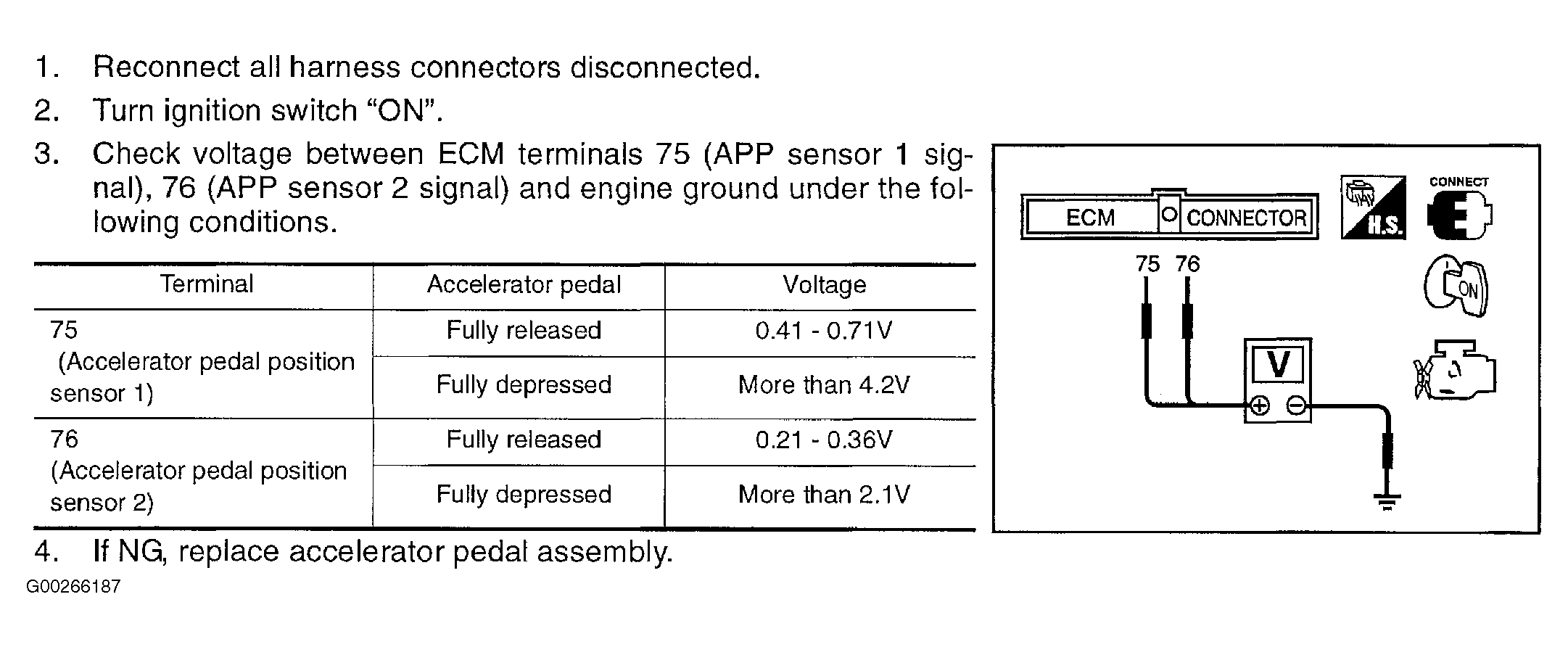

Fig 1: Component Inspection For DTCs P2122 Or P2123: APP Sensor (2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

Accelerator Pedal Position Sensor (3.5L)

For component inspection, see Fig 2.

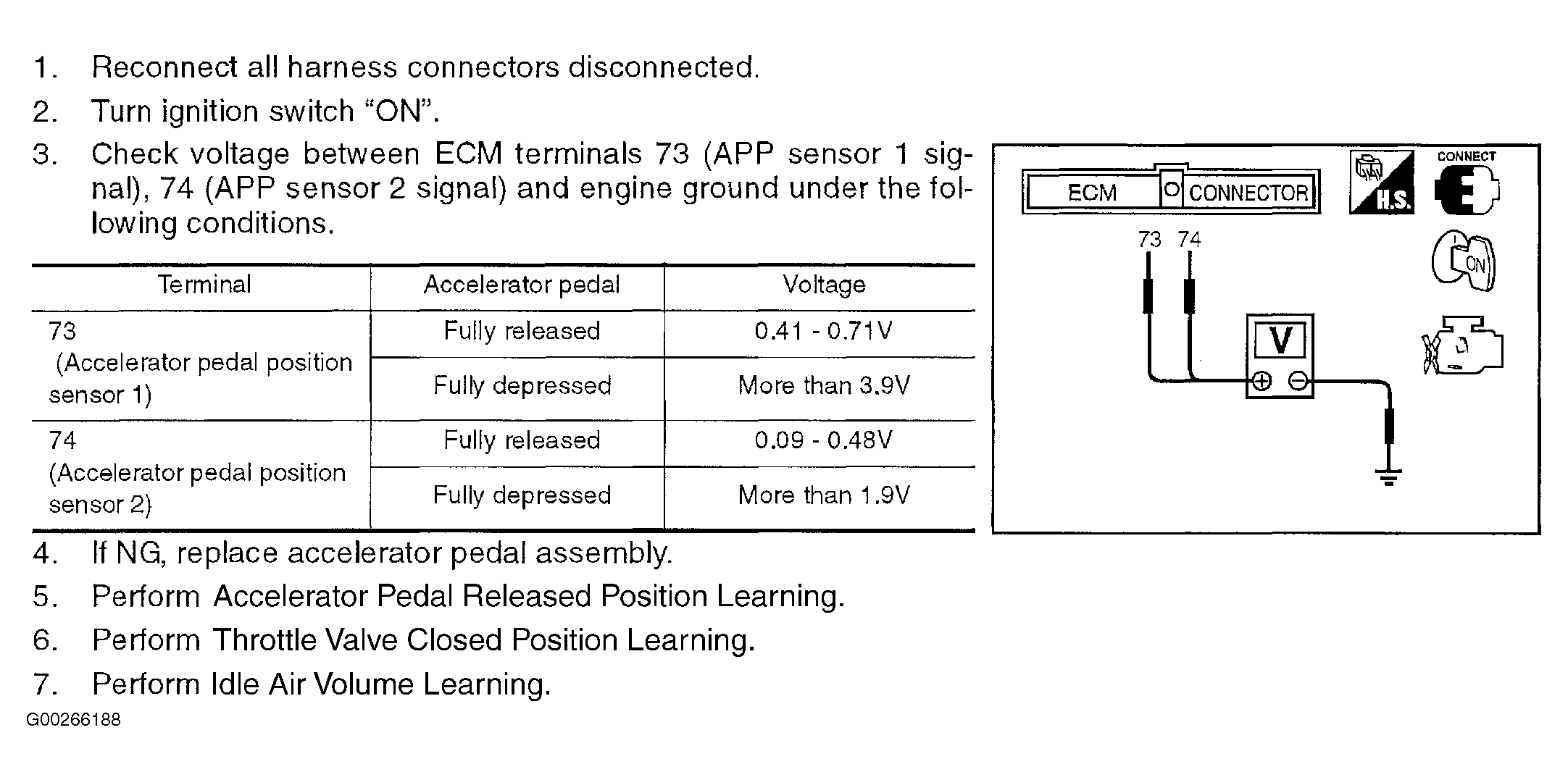

Fig 2: Component Inspection For DTCs P2122 Or P2123: APP Sensor (3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
