Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Stop Lamp Switch

For component inspection, see Fig 1.

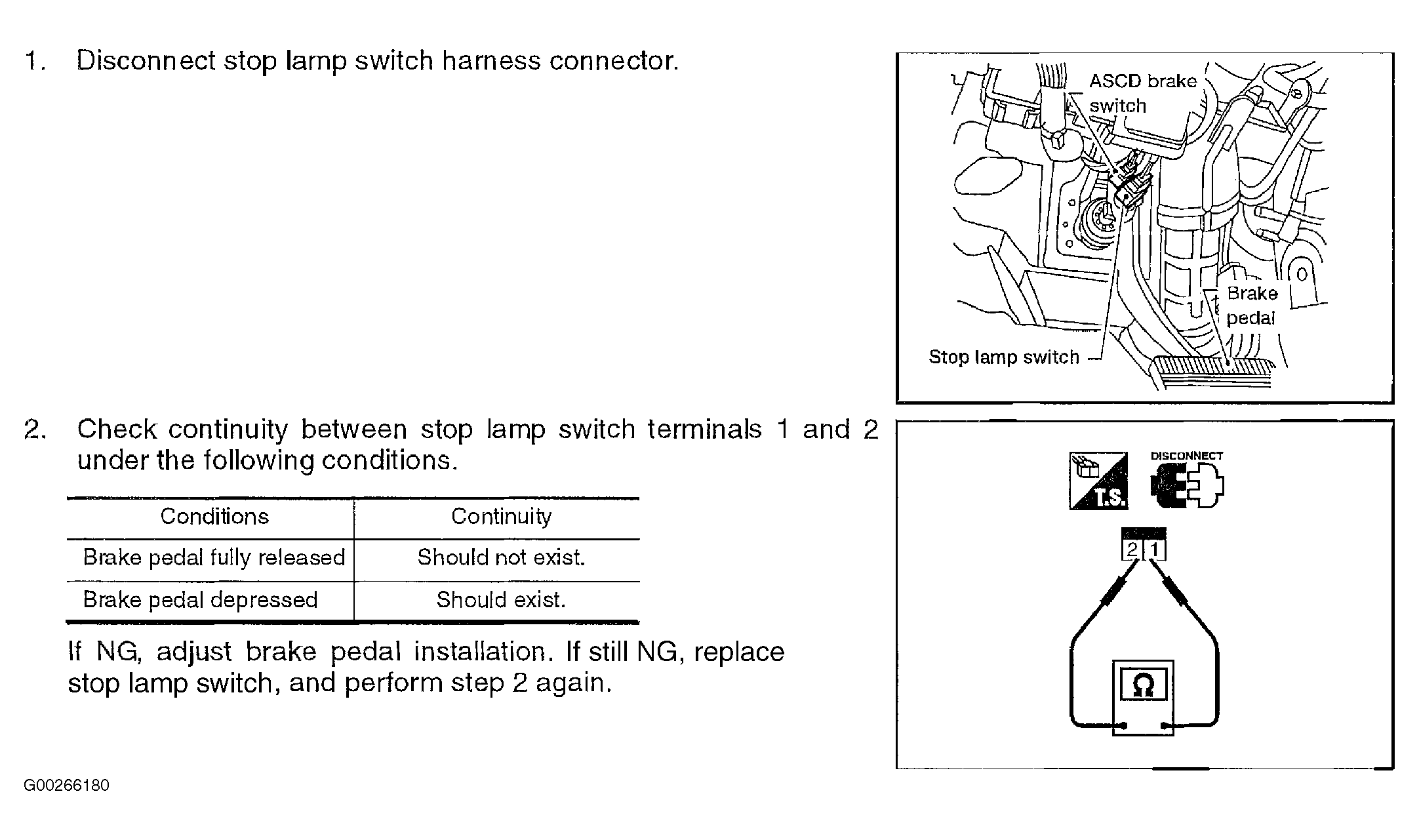

Fig 1: Component Inspection For DTC P1805: Brake Switch
G00266180Courtesy of NISSAN MOTOR CO., U.S.A.
