Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

VIAS Control Solenoid Valve

For component Inspection, see Fig 1.

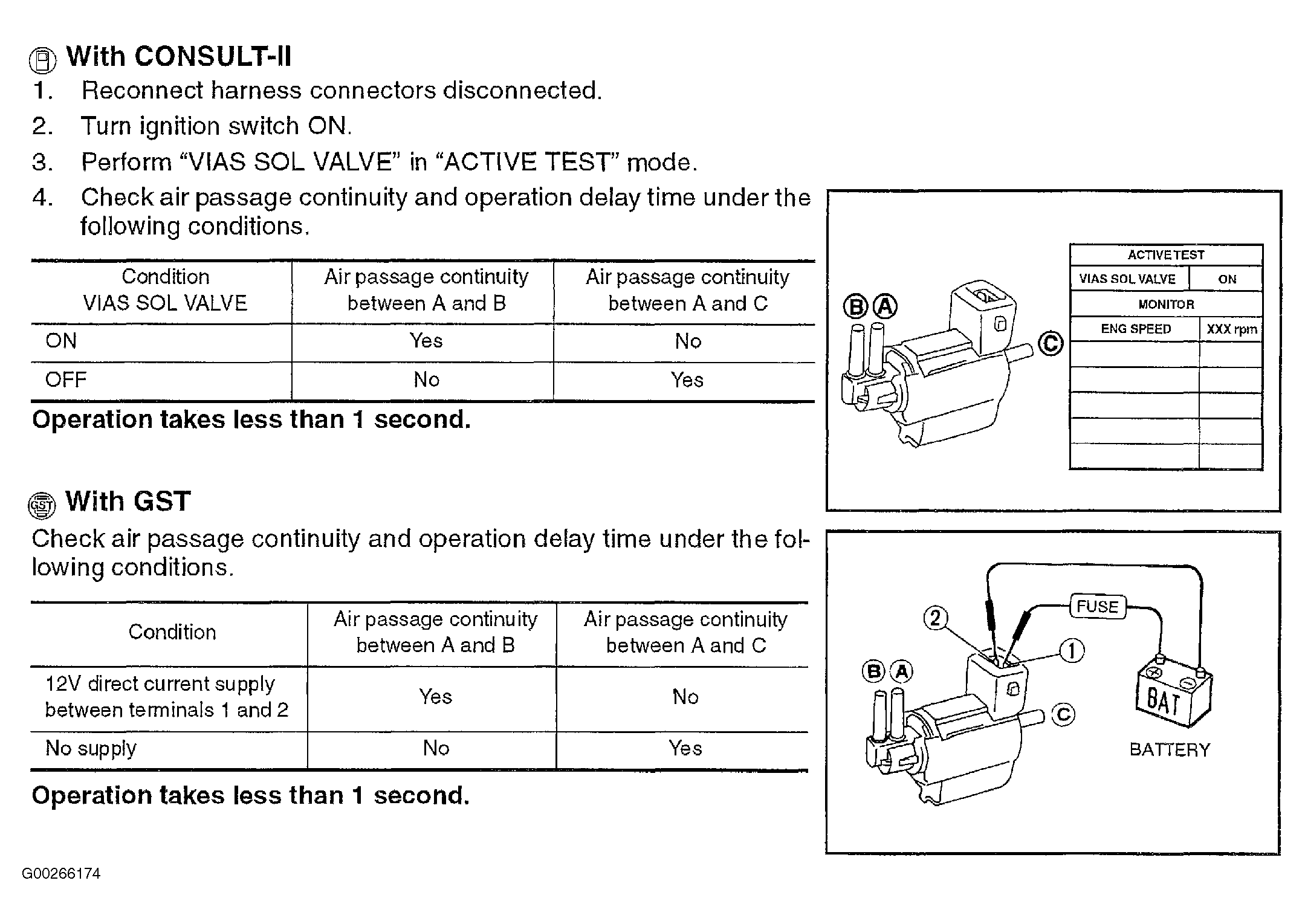

Fig 1: Component Inspection For DTC P1800: VIAS Control Solenoid Valve (3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
