Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For DTC P0705: Park/Neutral Position Switch or Position Switch, see appropriate DIAGNOSIS article in TRANSMISSIONS and for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For diagnostic procedure, see Fig 1.

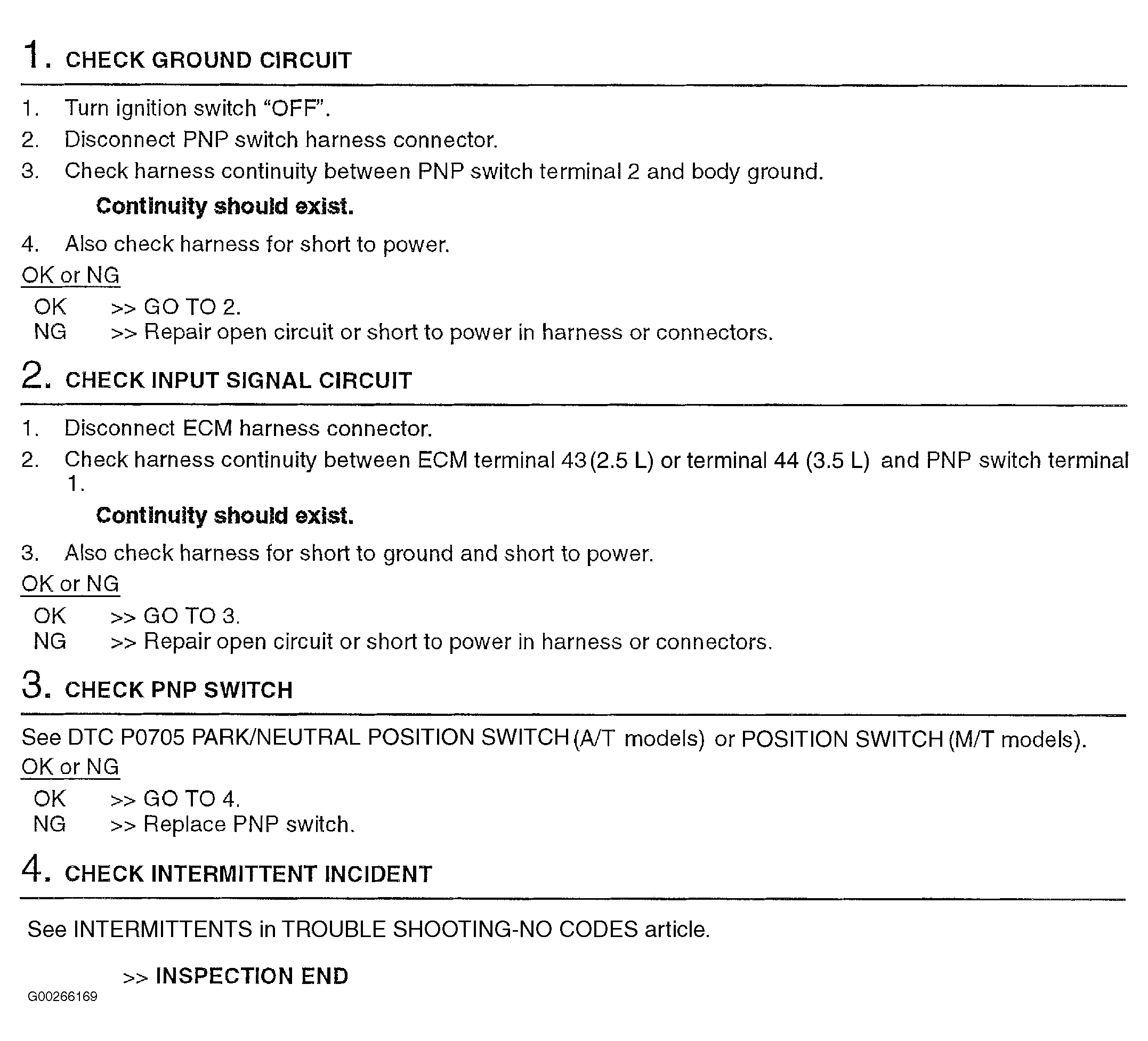

Fig 1: Identifying Diagnostic Procedure For DTC P1706: Park/Neutral Position Switch, Steps 1-4 Of 4
G00266169Courtesy of NISSAN MOTOR CO., U.S.A.
