Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: To check DTC with TCM, see appropriate DIAGNOSIS article in AUTOMATIC TRANSMISSIONS, for vehicle speed sensor, see VEHICLE SPEED SENSOR in SYSTEM & COMPONENT TESTING article and for combination meter, see appropriate INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT.

For diagnostic procedure, see Fig 1.

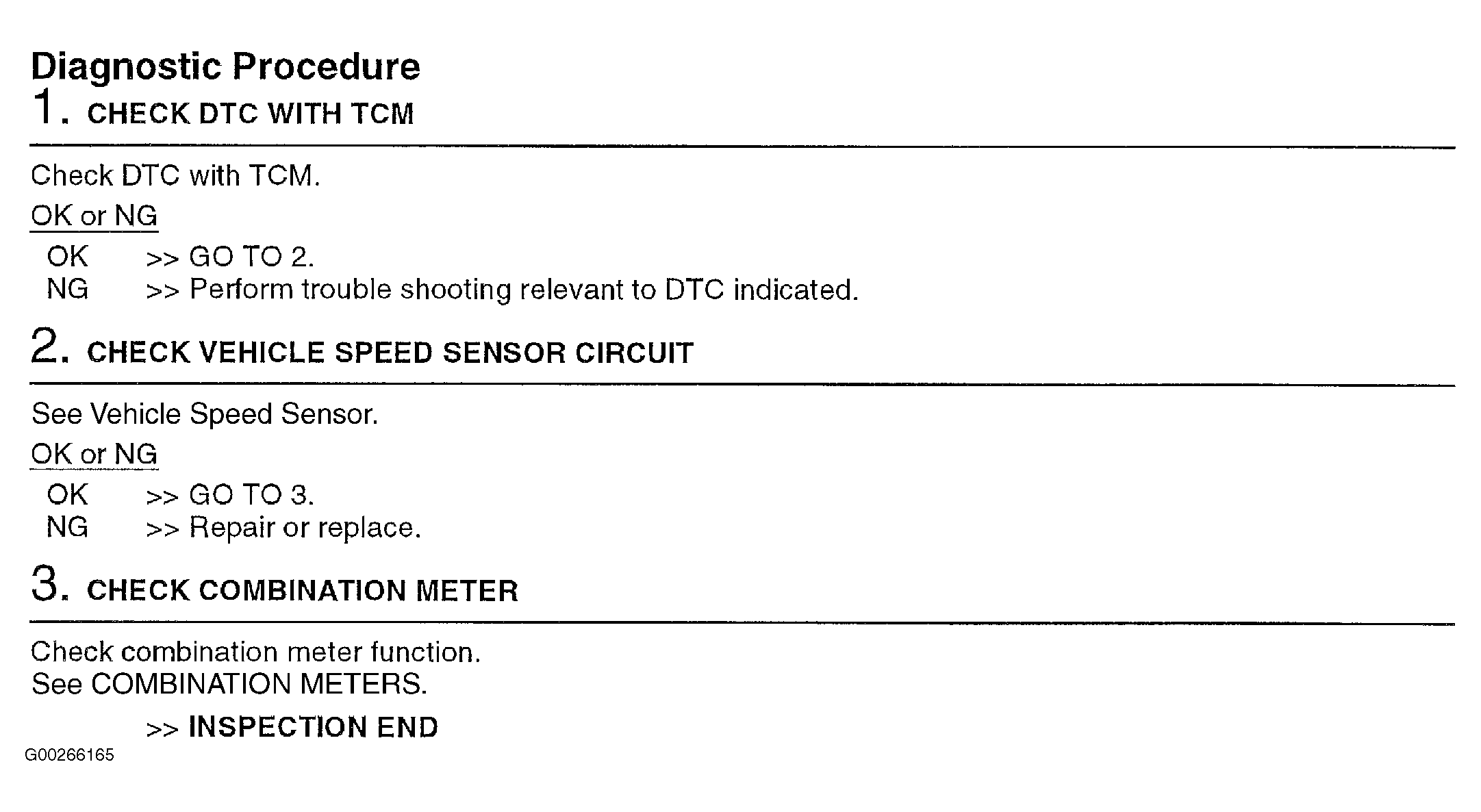

Fig 1: Identifying Diagnostic Procedure For DTC P1574: ASCD Vehicle Speed Sensor (Steps 1-3 Of 3)
G00266165Courtesy of NISSAN MOTOR CO., U.S.A.
