Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For component inspection, see COMPONENT INSPECTION

For diagnostic procedure, see Fig 1 - Fig 6 .

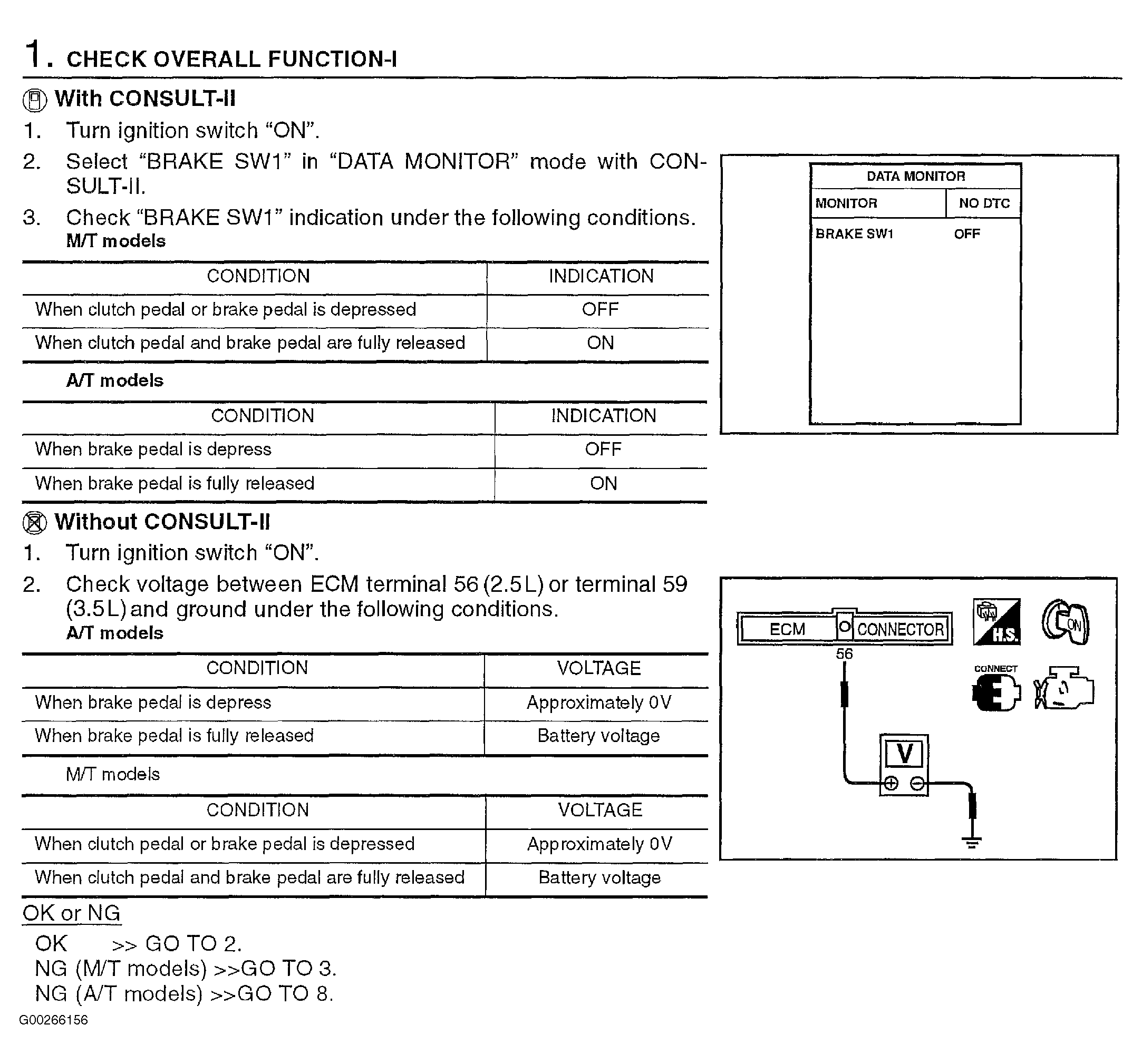

Fig 1: Identifying Diagnostic Procedure For DTC P1572: ASCD Brake Switch (Step 1 Of 18)

G00266156

Courtesy of NISSAN MOTOR CO., U.S.A.

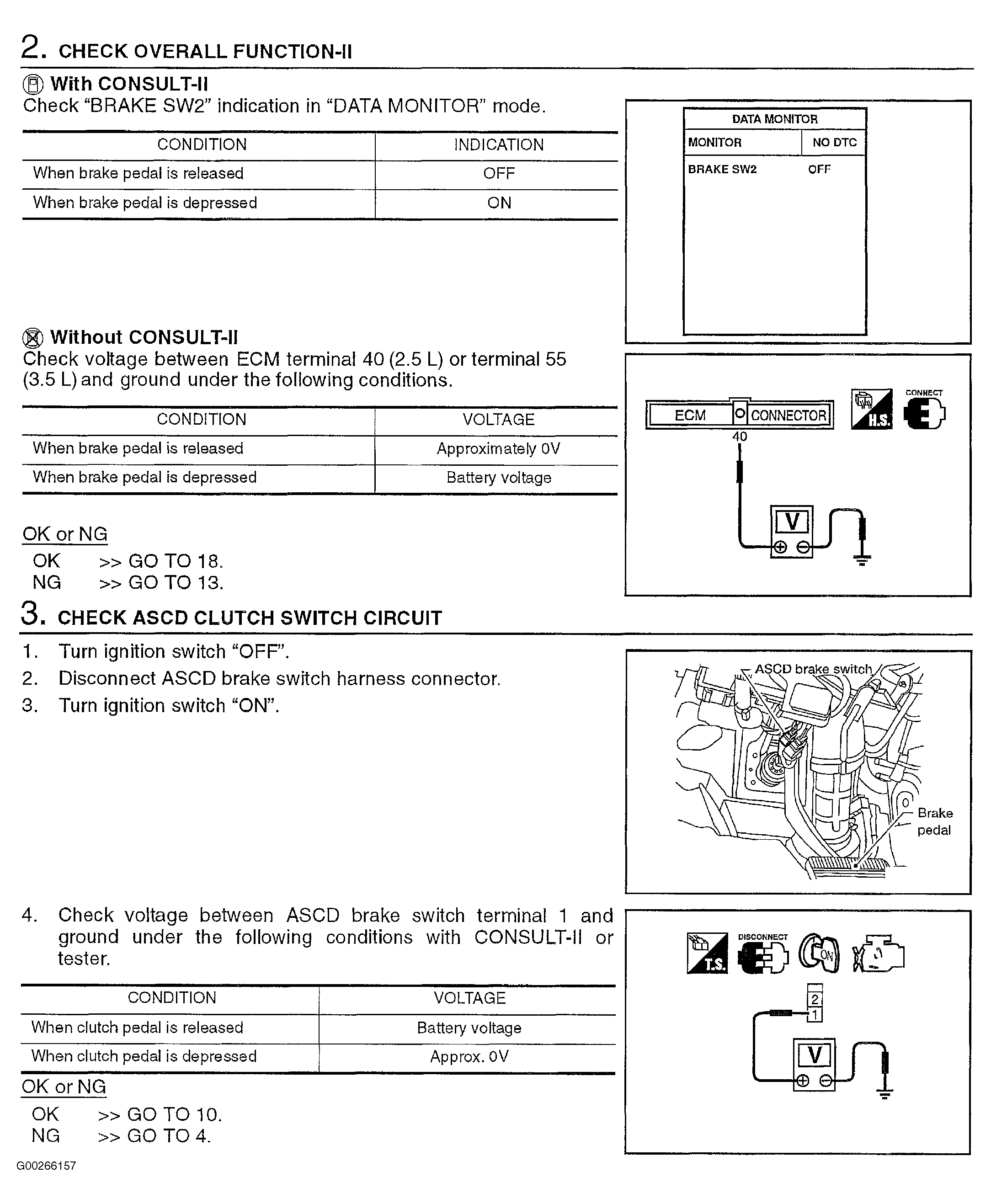

Fig 2: Identifying Diagnostic Procedure For DTC P1572: ASCD Brake Switch (Steps 2-3 Of 18)

G00266157

Courtesy of NISSAN MOTOR CO., U.S.A.

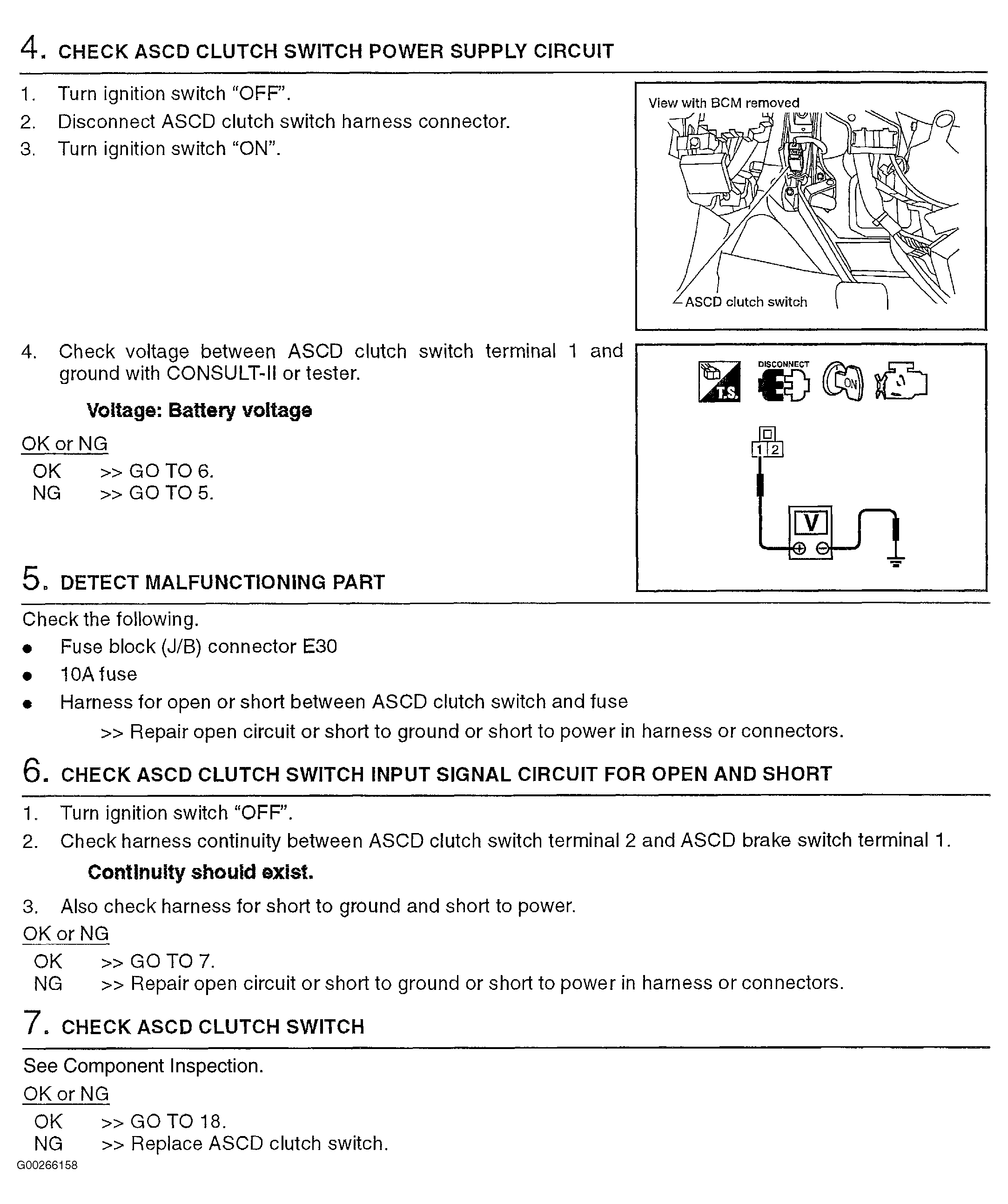

Fig 3: Identifying Diagnostic Procedure For DTC P1572: ASCD Brake Switch (Steps 4-7 Of 18)

G00266158

Courtesy of NISSAN MOTOR CO., U.S.A.

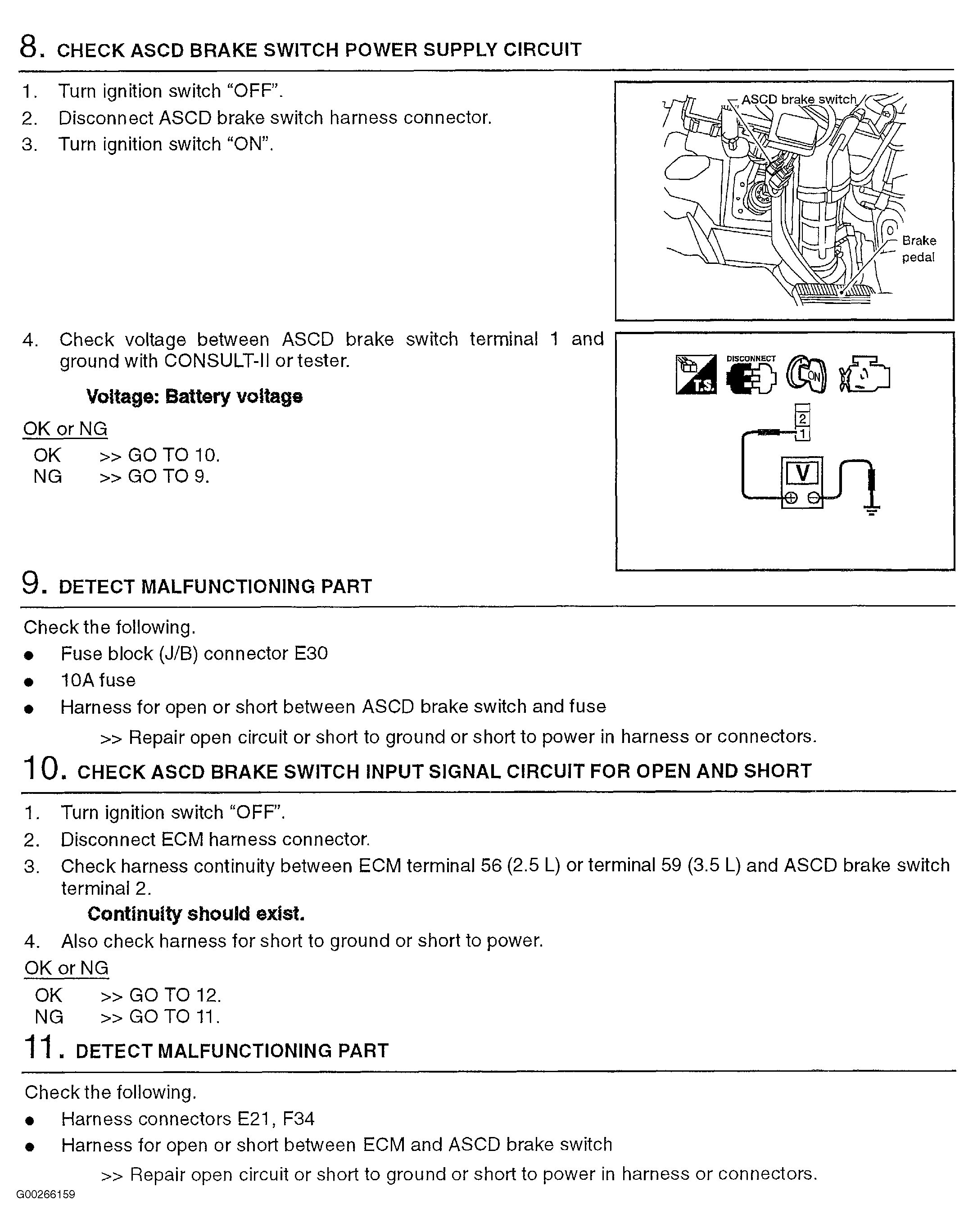

Fig 4: Identifying Diagnostic Procedure For DTC P1572: ASCD Brake Switch (Steps 8-11 Of 18)

G00266159

Courtesy of NISSAN MOTOR CO., U.S.A.

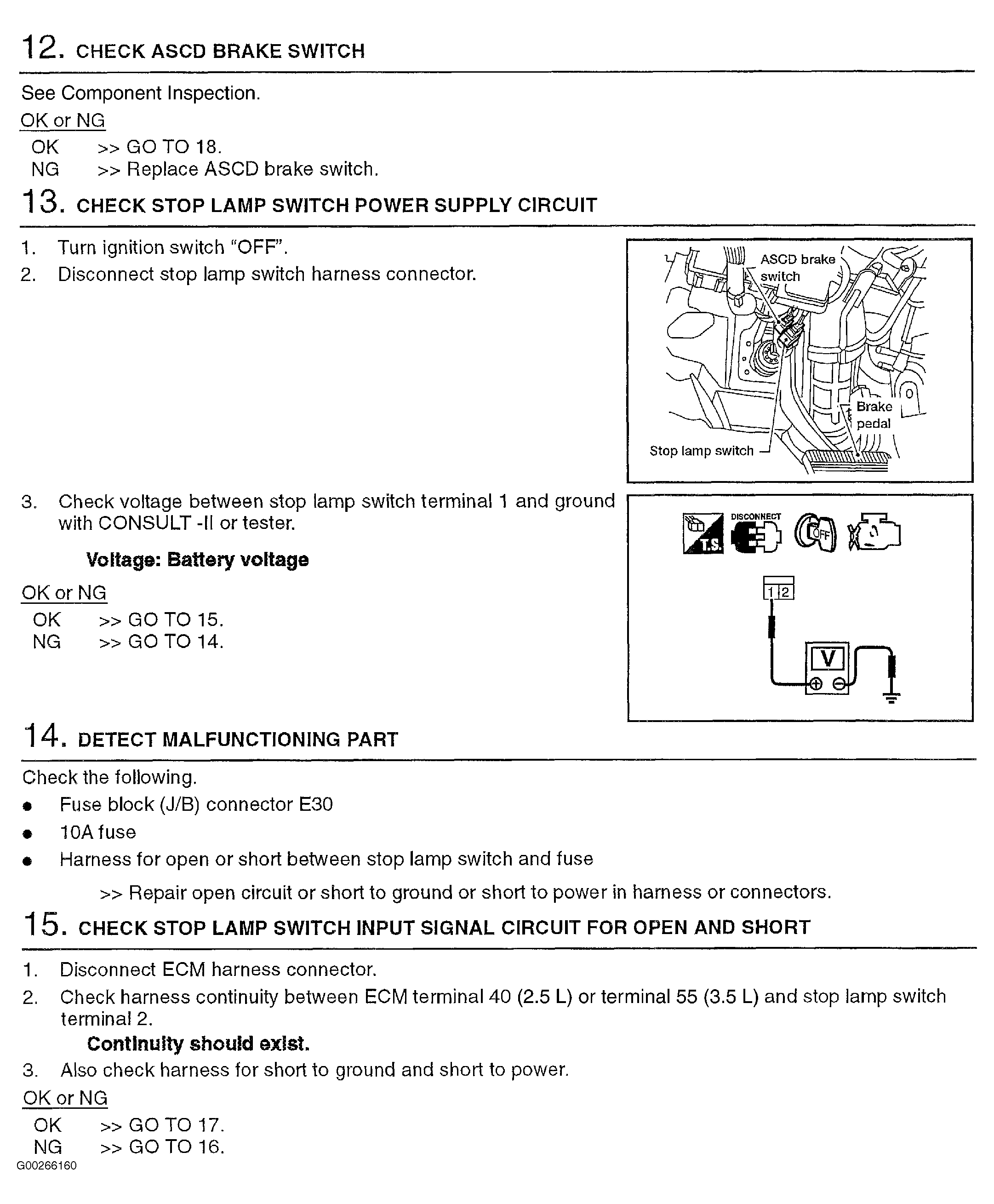

Fig 5: Identifying Diagnostic Procedure For DTC P1572: ASCD Brake Switch (Steps 12-15 Of 18)

G00266160

Courtesy of NISSAN MOTOR CO., U.S.A.

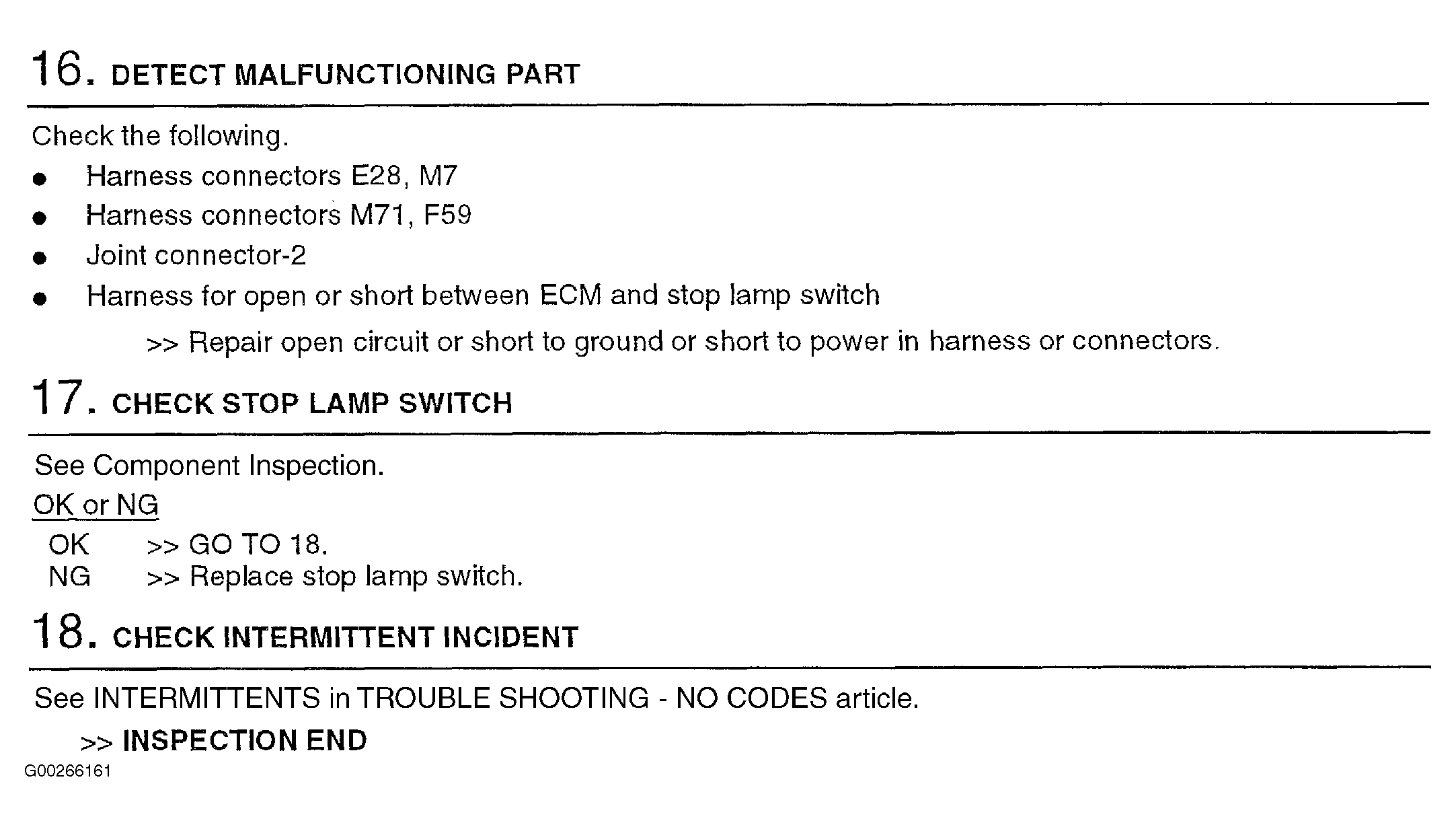

Fig 6: Identifying Diagnostic Procedure For DTC P1572: ASCD Brake Switch (Steps 16-18 Of 18)

G00266161

Courtesy of NISSAN MOTOR CO., U.S.A.
