Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

EVAP Canister Vent Control Valve

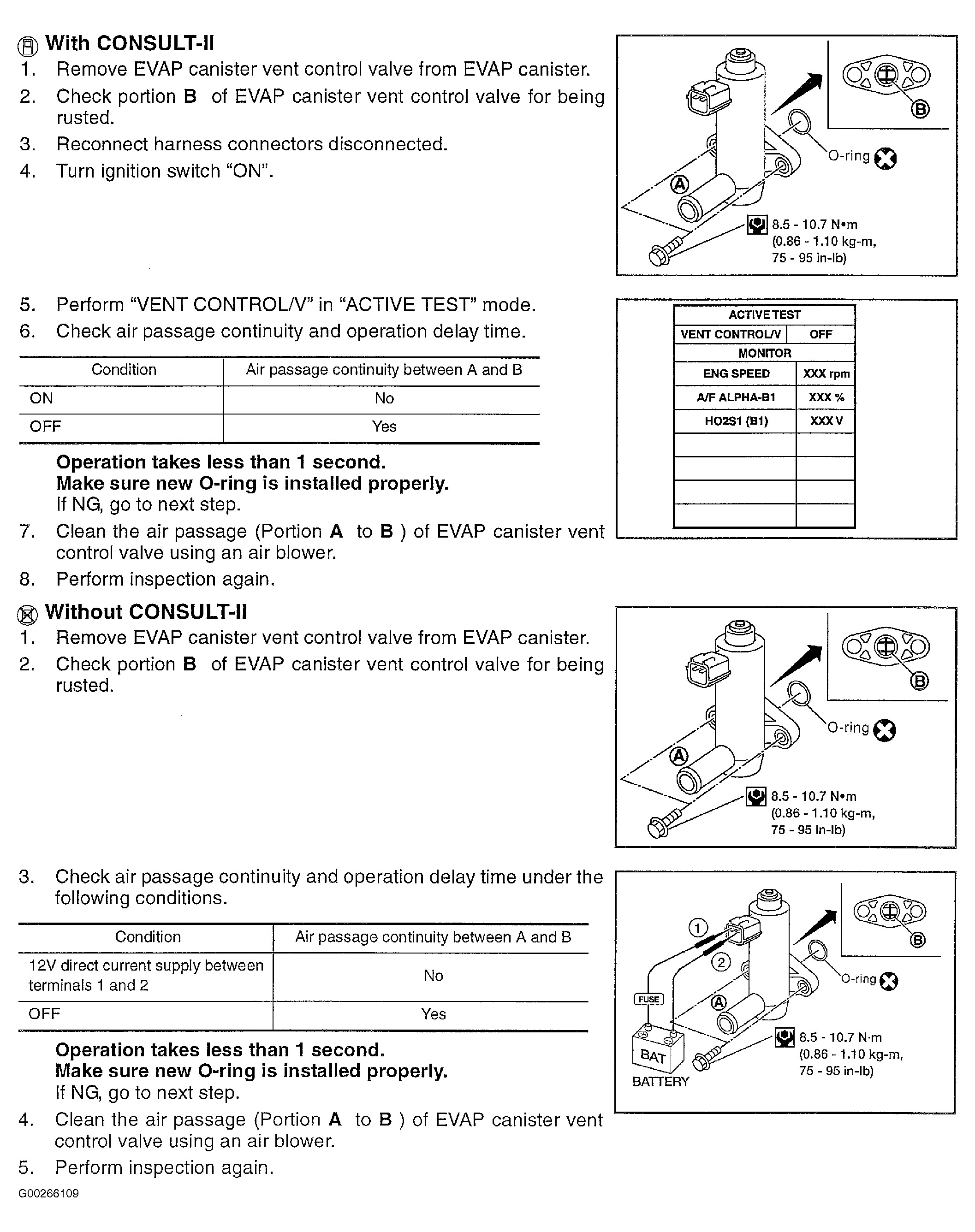

For component inspection, see Fig 1.

Fig 1: Component Inspection For DTC P1446: EVAP Canister Vent Control Valve
G00266109Courtesy of NISSAN MOTOR CO., U.S.A.
