Circuit Identification

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

For circuit identification, see Fig 1 or Figure .

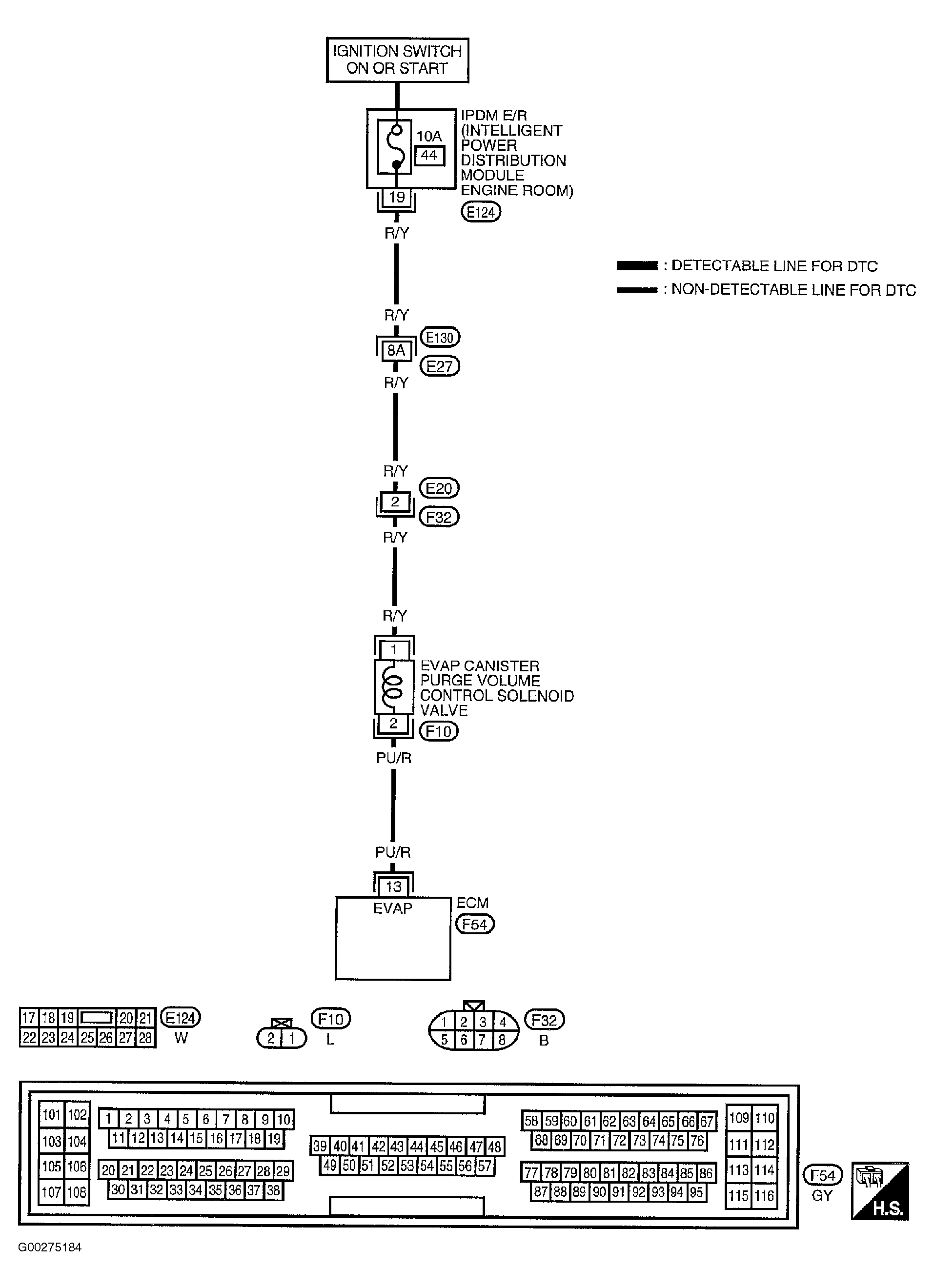

Fig 1: Circuit Identification For DTC P1444: Canister Purge Volume Control Solenoid Valve (2.5L)
G00275184Courtesy of NISSAN MOTOR CO., U.S.A.
