Circuit Terminal Identification

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

For circuit terminal identification, see Fig 1.

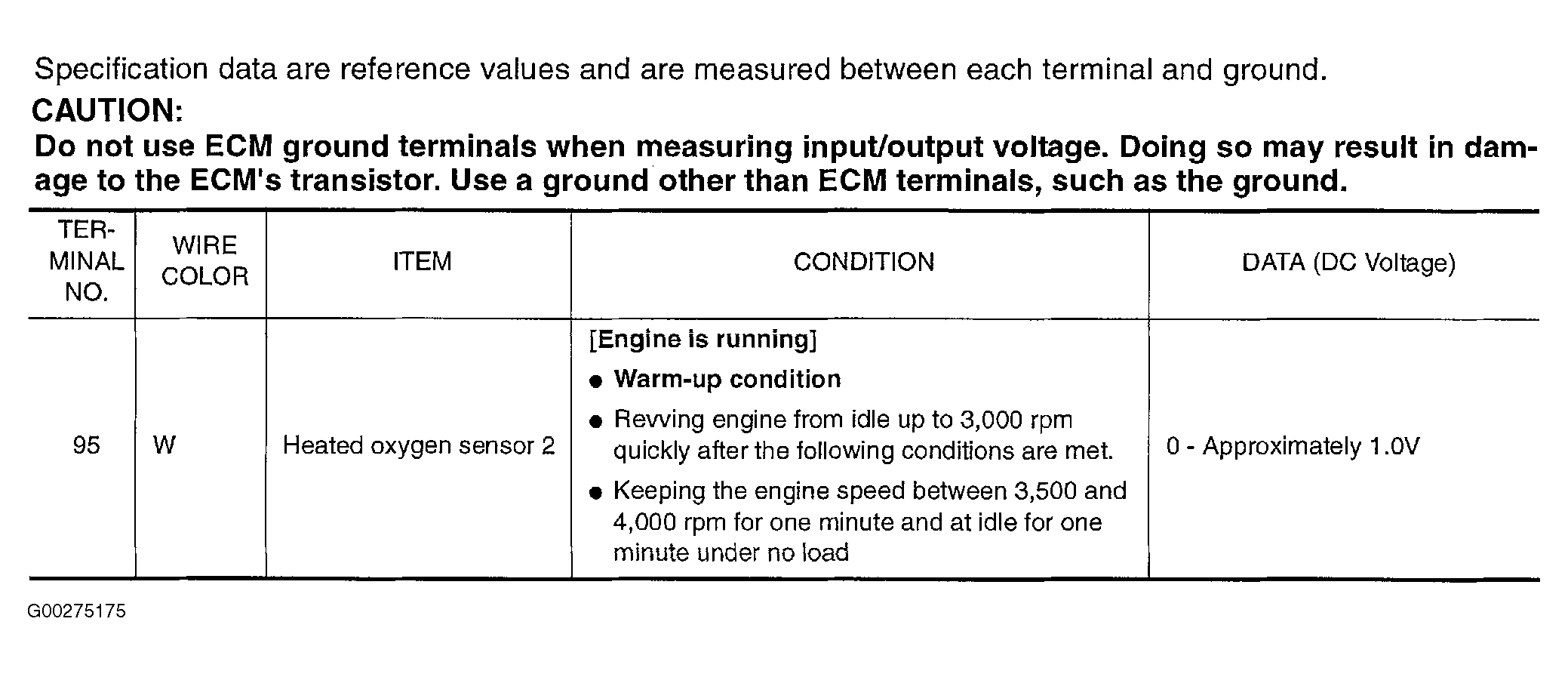

Fig 1: Circuit Testing Value Chart For DTC P1146: HO2S2 (2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
