Overall Function Check

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use this procedure to check the overall function of the heated oxygen sensor 1 circuit. During this check, a DTC might not be confirmed.

For overall function check, see Fig 1.

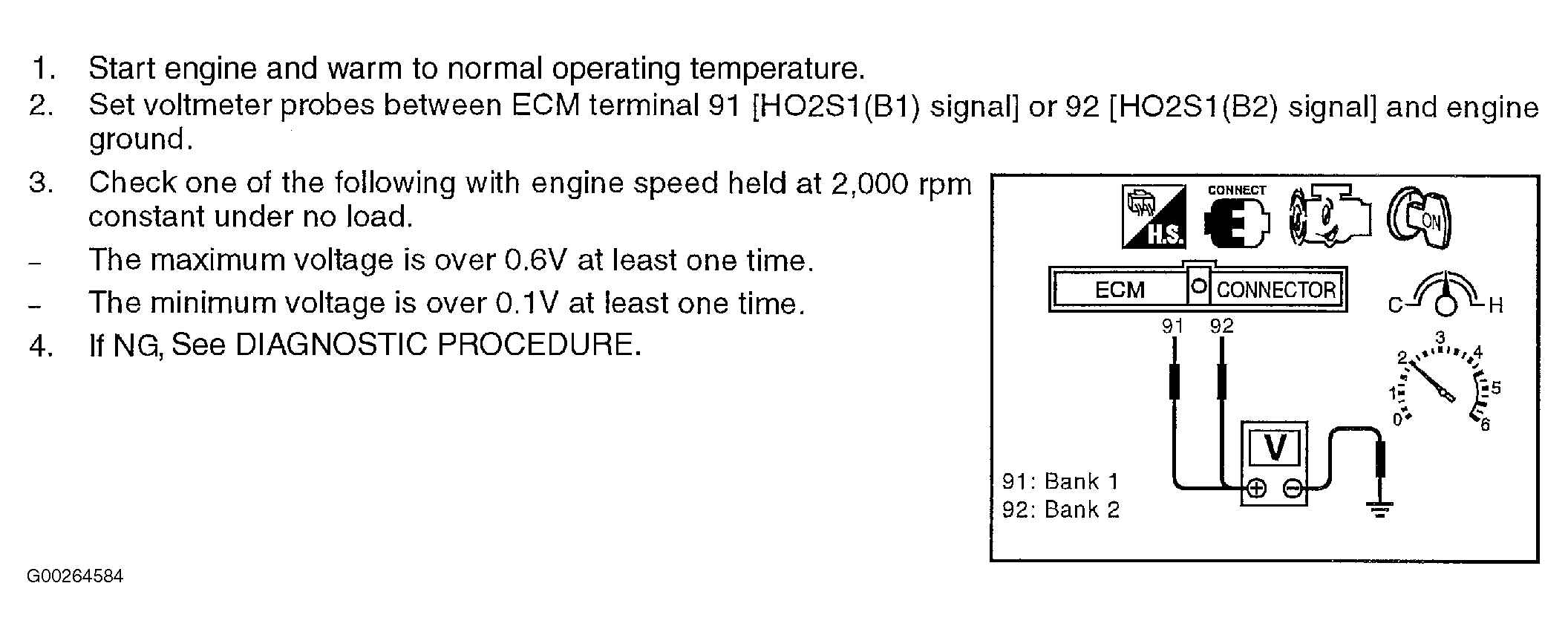

Fig 1: Identifying Overall Function Check For DTC P1143 Or P1163: HO2S1 (3.5L)
G00264584Courtesy of NISSAN MOTOR CO., U.S.A.
