Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For combination meter, see INSTRUMENT PANEL ASSEMBLY under REMOVAL & INSTALLATION in appropriate INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT and for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For diagnostic procedure, see Fig 1-Fig 2 .

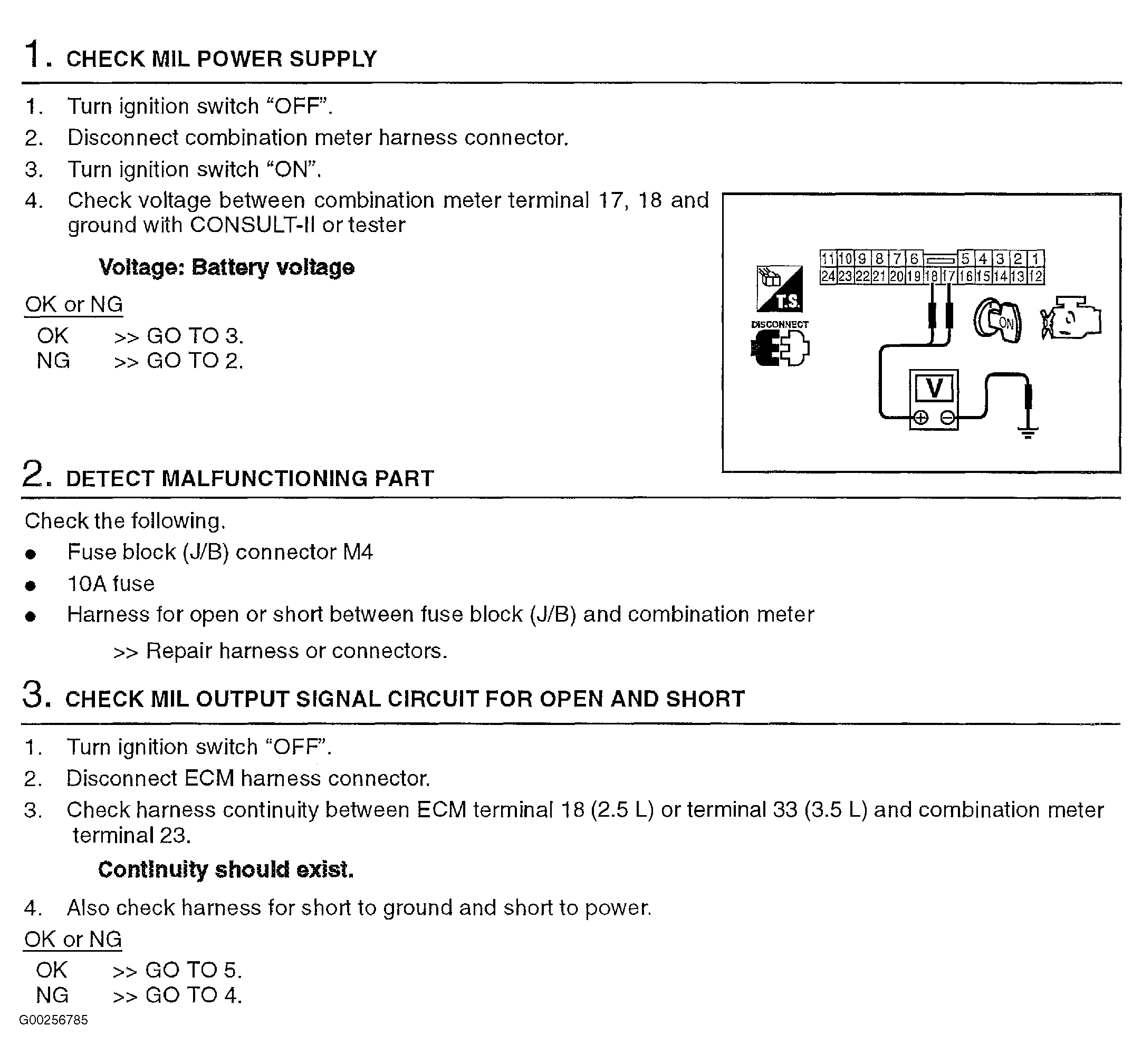

Fig 1: Identifying Diagnostic Procedure For DTC P0650: MIL (Steps 1-3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

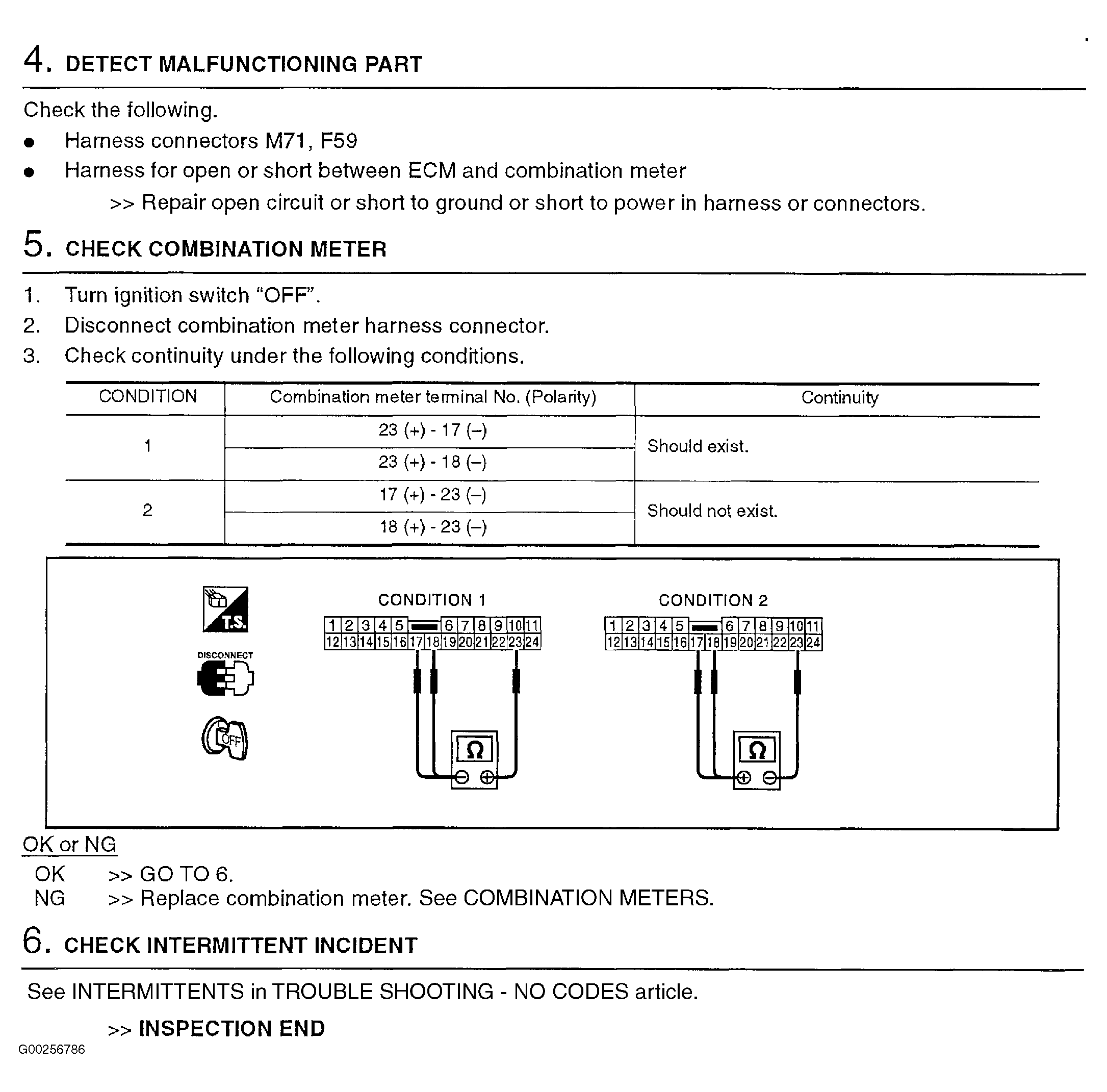

Fig 2: Identifying Diagnostic Procedure For DTC P0650: MIL (Steps 4-6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
