DTC Confirmation Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform procedure for malfunction "A" first. If the 1st trip DTC cannot be confirmed, perform procedure for malfunction "B". If there is no malfunction on procedure for malfunction "B", perform procedure for malfunction "C".

NOTE: If DTC confirmation procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

NOTE: For diagnostic procedure, see DIAGNOSTIC PROCEDURE .

Confirmation Procedure "A"

For confirmation procedure "A", see Fig 1.

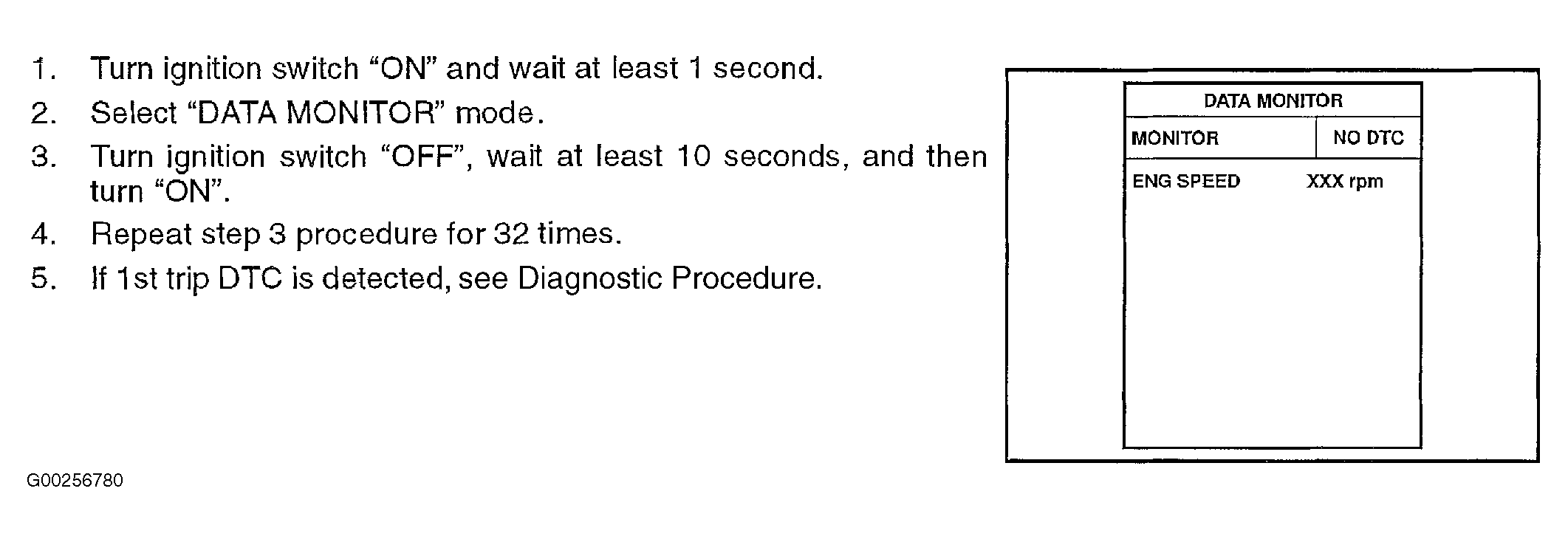

Fig 1: Identifying Confirmation Procedure "A" For DTC P0605: ECM

Courtesy of NISSAN MOTOR CO., U.S.A.

Confirmation Procedure "B"

For confirmation procedure "B", see Fig 2.

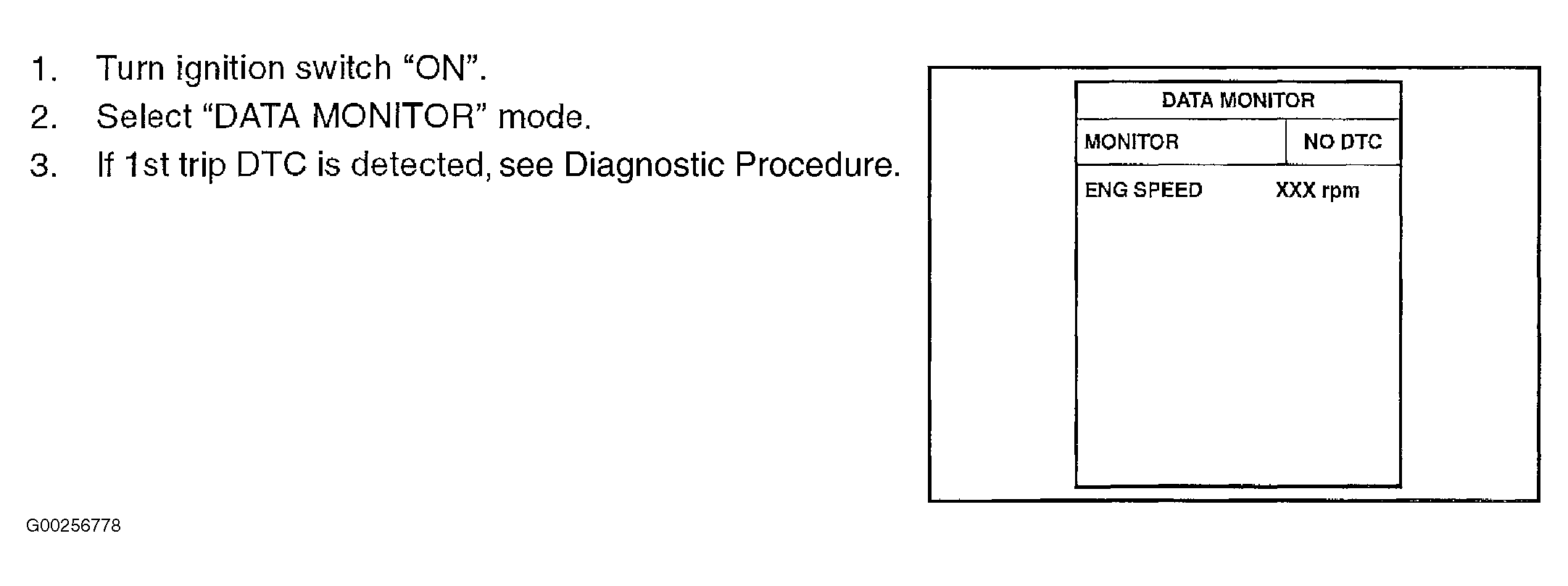

Fig 2: Identifying Confirmation Procedure "B" For DTC P0605: ECM

Courtesy of NISSAN MOTOR CO., U.S.A.

Confirmation Procedure "C"

For confirmation procedure "C", see Fig 3.

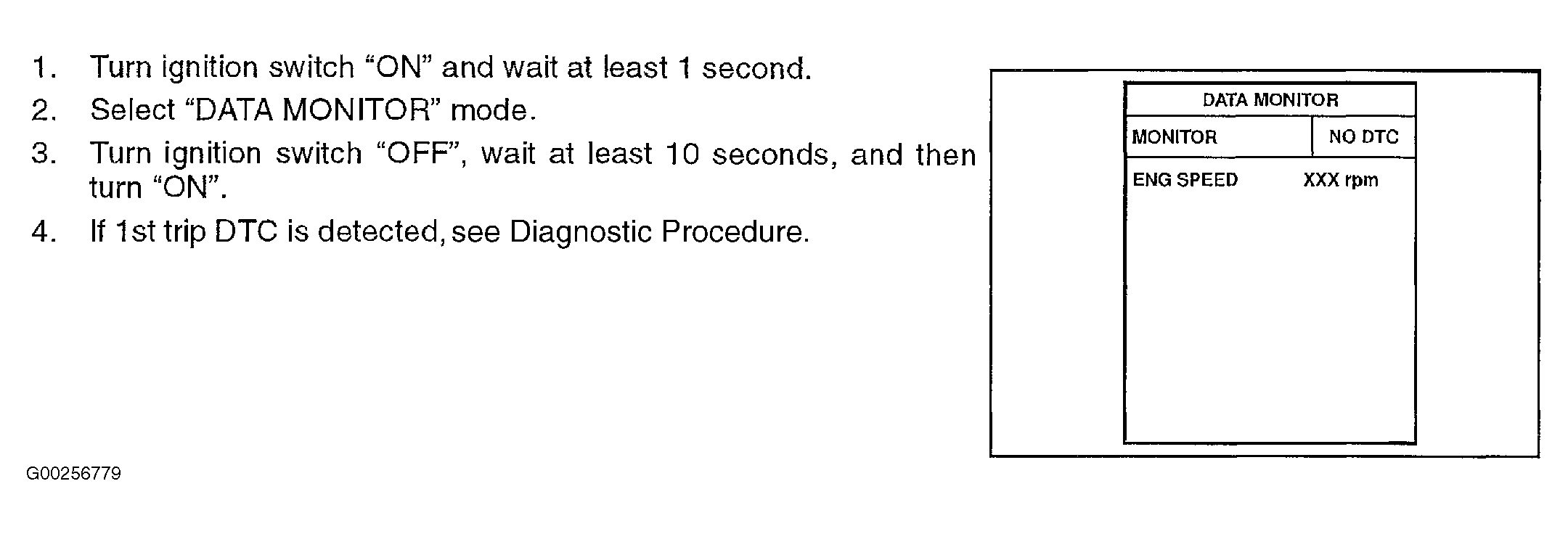

Fig 3: Identifying Confirmation Procedure "C" For DTC P0605: ECM

Courtesy of NISSAN MOTOR CO., U.S.A.
