Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

For power steering pressure sensor component inspection, see Fig 1.

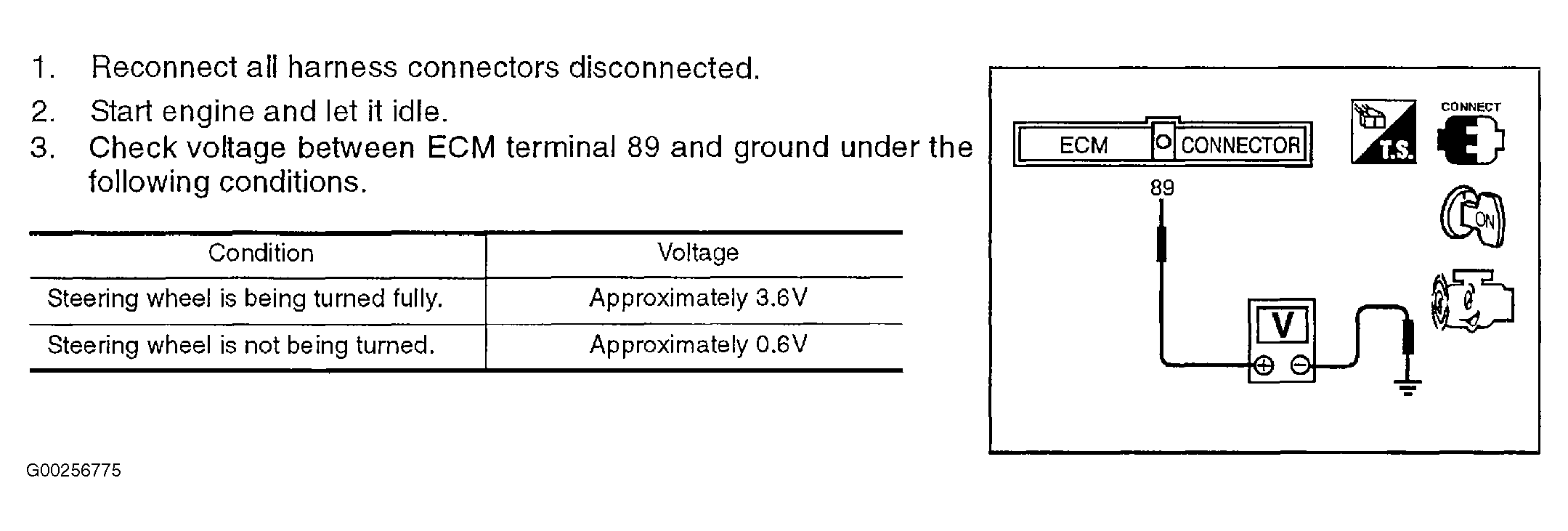

Fig 1: Power Steering Pressure Sensor Component Inspection
G00256775Courtesy of NISSAN MOTOR CO., U.S.A.
