DTC Confirmation Procedure (With CONSULT-II)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTC confirmation procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

NOTE: Steps 1 and 2 may be conducted with the drive wheels lifted in the shop or by driving the vehicle.

NOTE: For diagnostic procedure, see DIAGNOSTIC PROCEDURE .

2.5L

For DTC confirmation procedure (With CONSULT-II), see Fig 1.

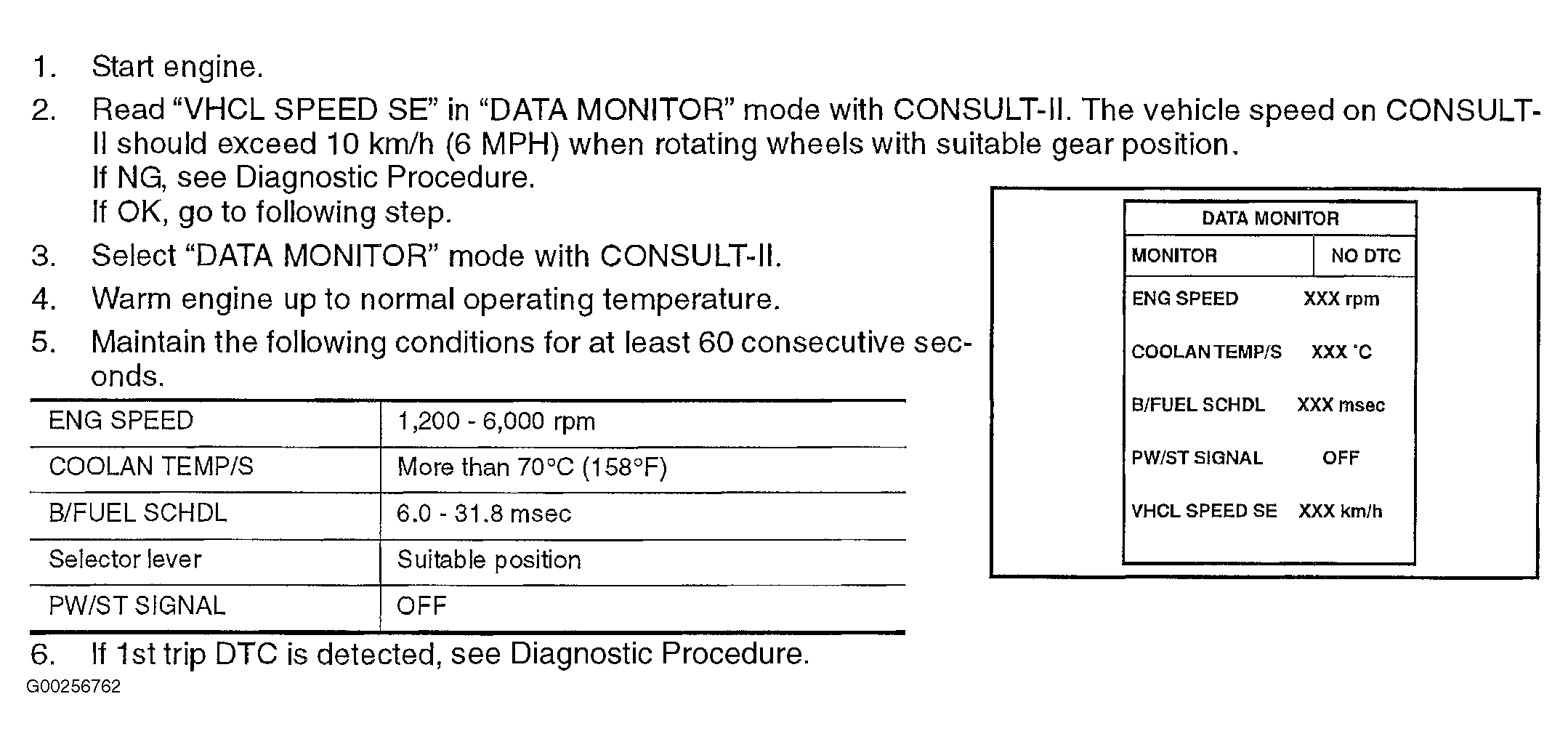

Fig 1: Identifying DTC Confirmation Procedure (With CONSULT-II) For DTC P0500: VSS (2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

3.5L

For DTC confirmation procedure (With CONSULT-II), see Fig 2.

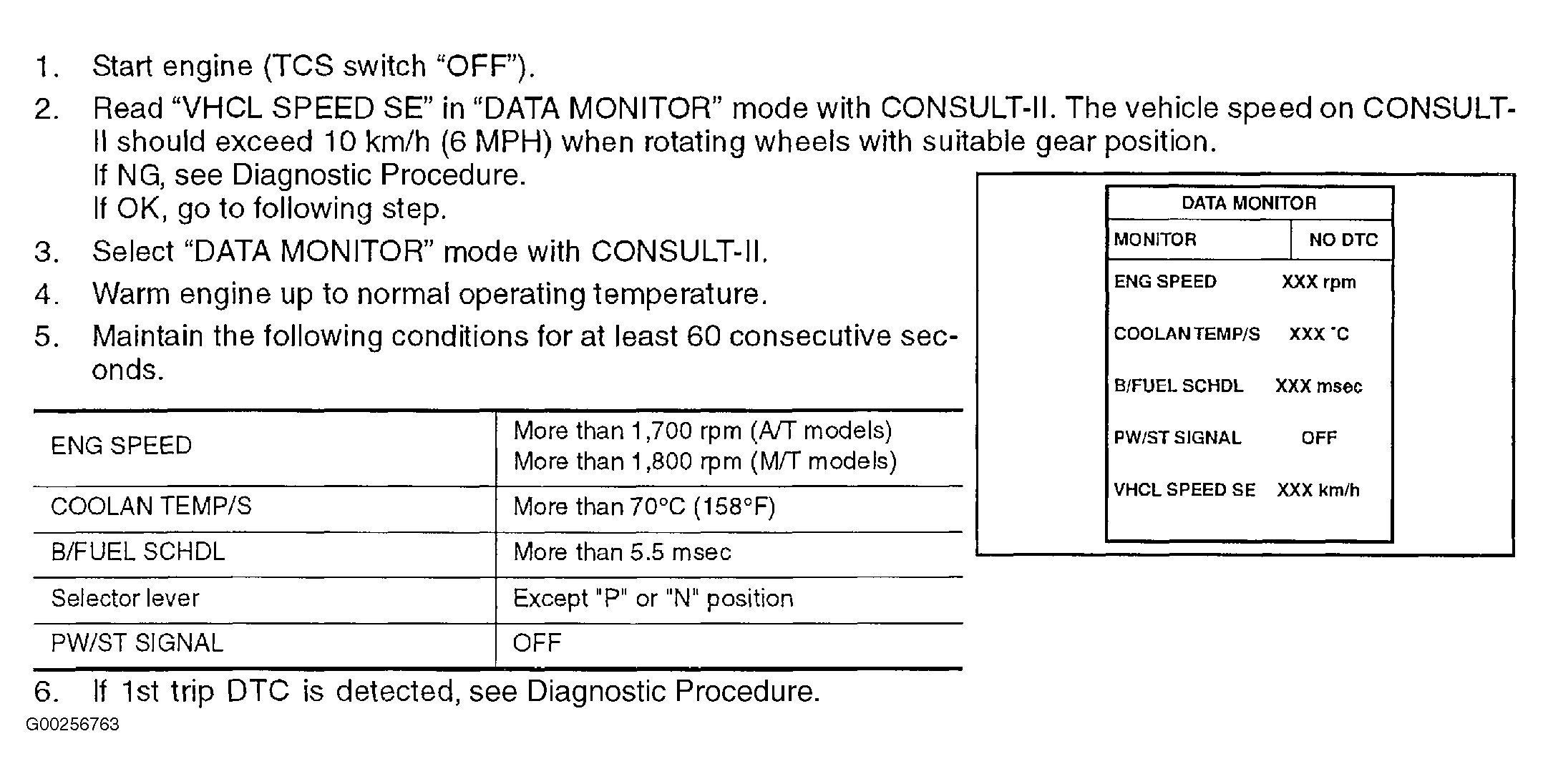

Fig 2: Identifying DTC Confirmation Procedure (With CONSULT-II) For DTC P0500: VSS (3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
