Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Camshaft Position Sensor (PHASE)

For component inspection, see Fig 1.

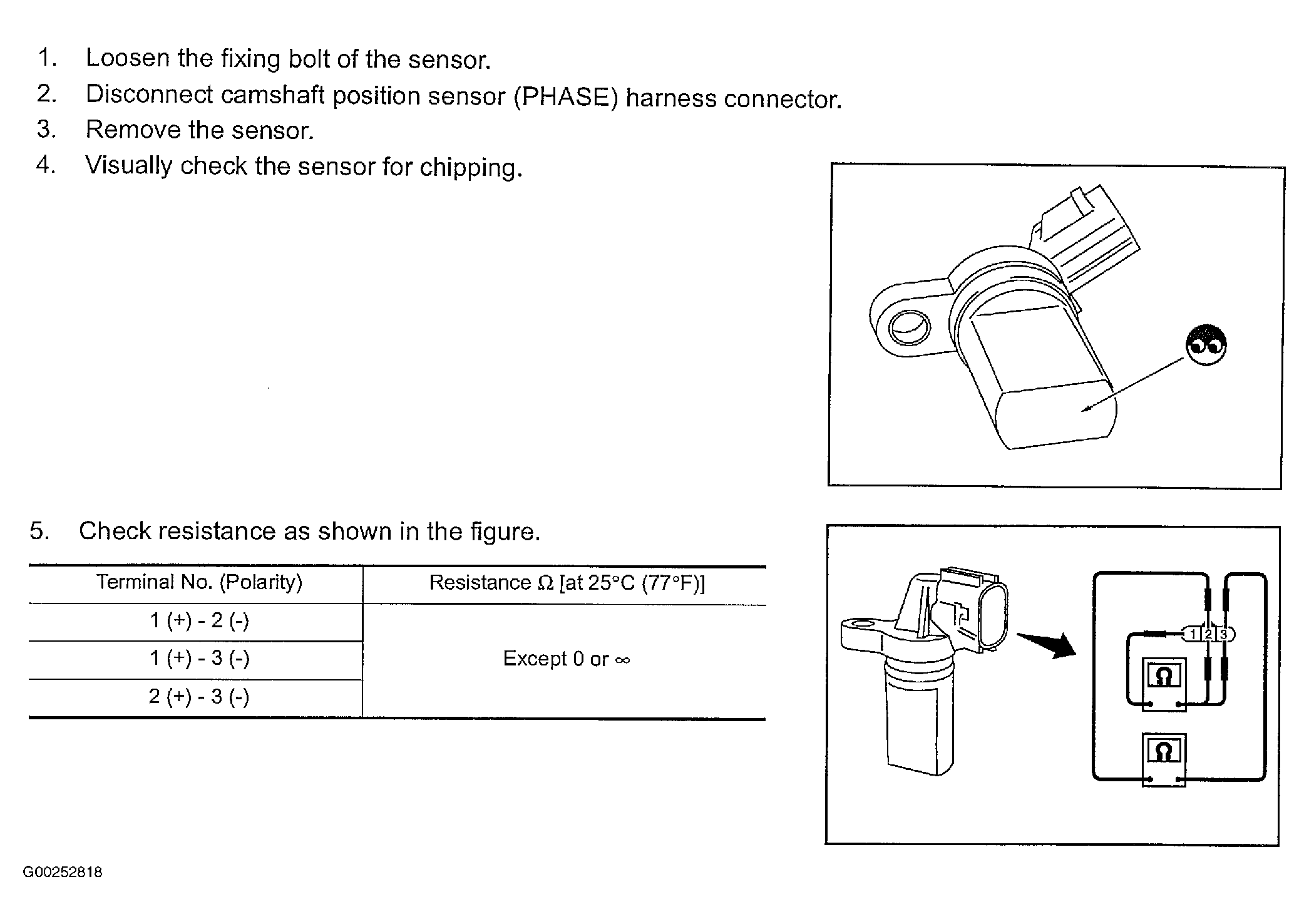

Fig 1: Component Inspection For DTC P0340 Or DTC P0345: Camshaft Position Sensor (PHASE)
G00252818Courtesy of NISSAN MOTOR CO., U.S.A.
