WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
For circuit terminal identification, see Fig 1 - Fig 3
.

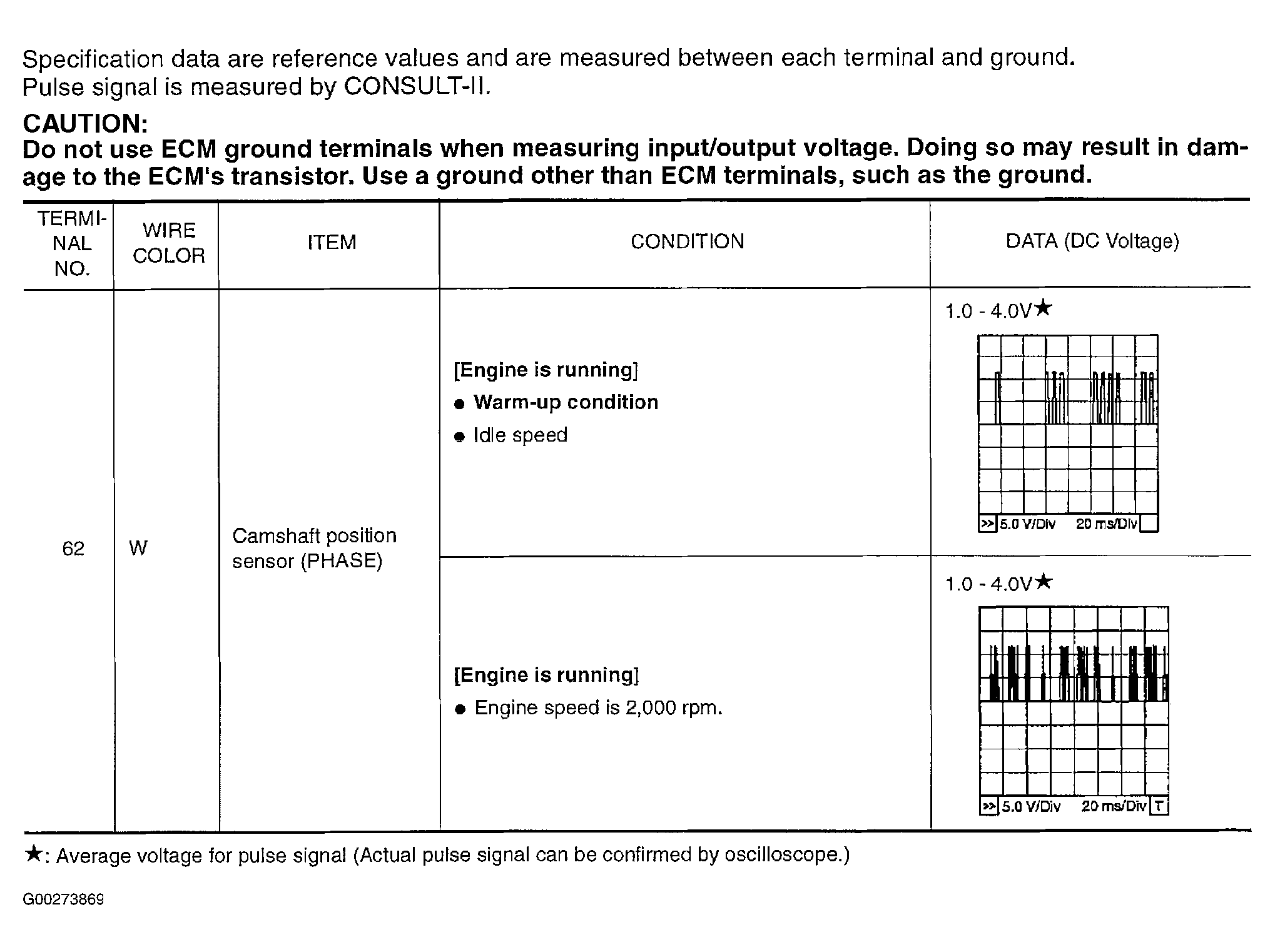

Fig 1: Circuit Testing Value Chart For DTC P0340: Camshaft Position Sensor (2.5L)
Courtesy of NISSAN MOTOR CO., U.S.A.

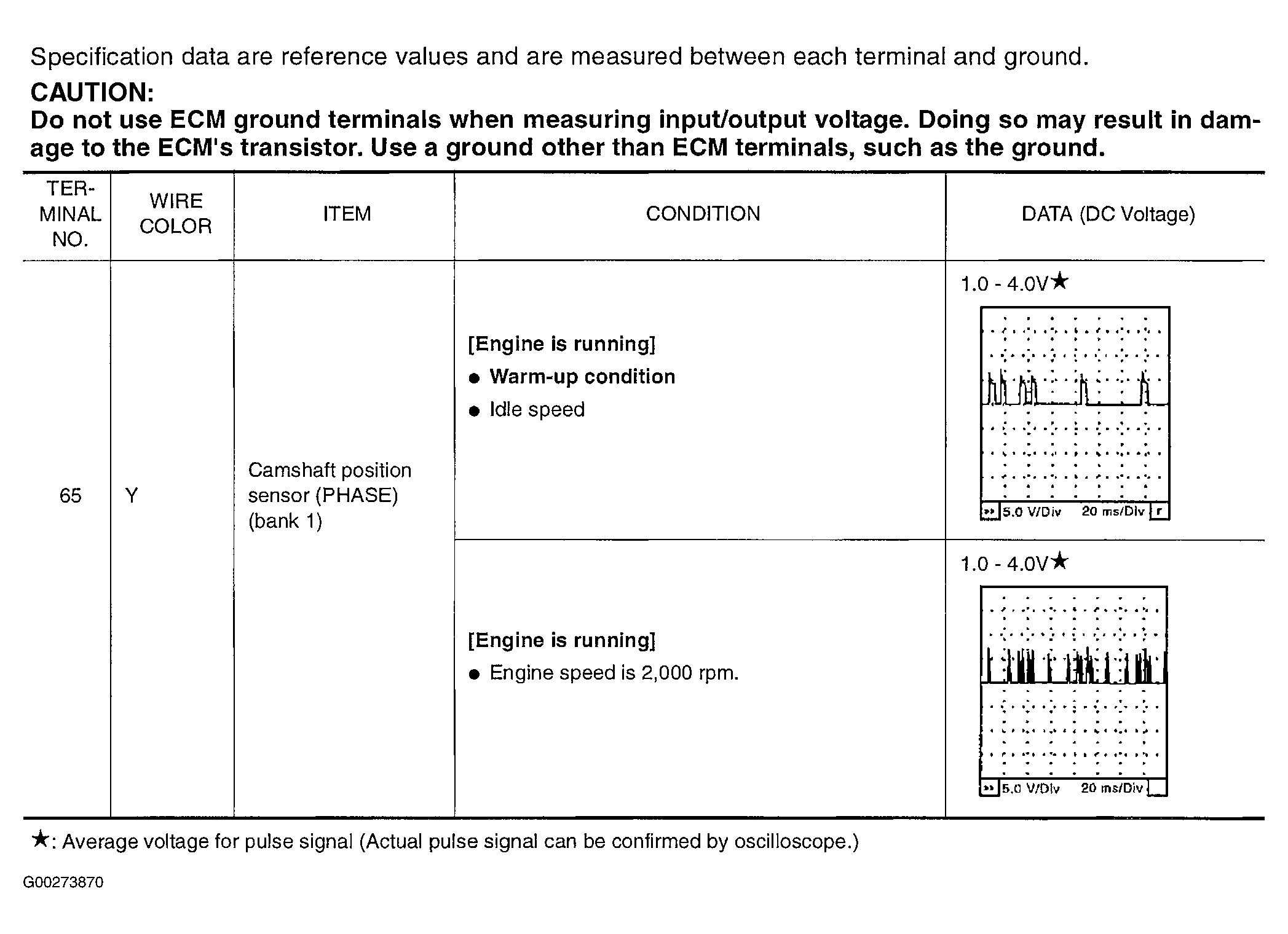

Fig 2: Circuit Testing Value Chart For DTC P0340: Camshaft Position Sensor (Bank 1 - 3.5L)
Courtesy of NISSAN MOTOR CO., U.S.A.

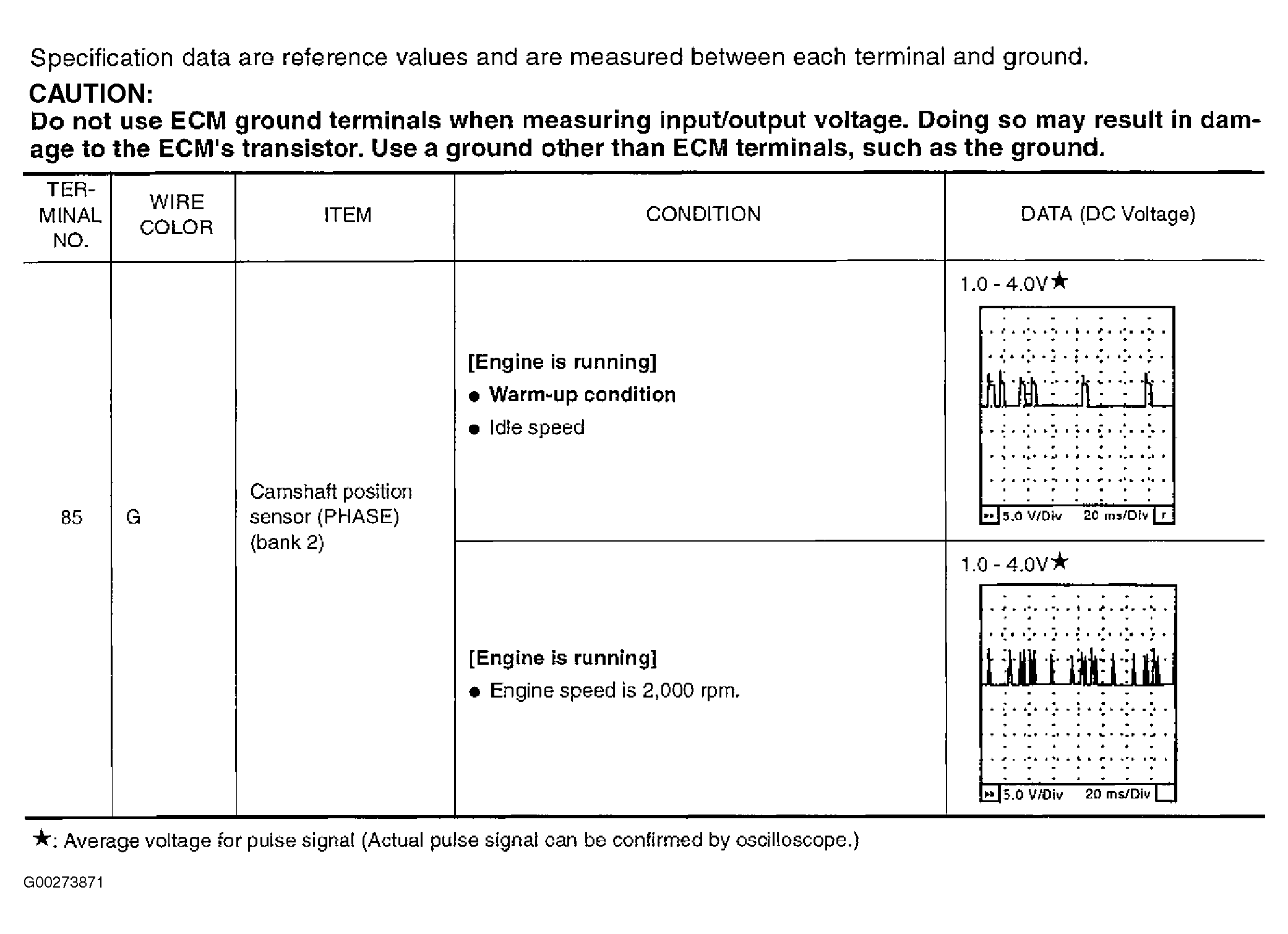

Fig 3: Circuit Testing Value Chart For DTC P0345: Camshaft Position Sensor (Bank 2 - 3.5L)
