Circuit Identification

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

For circuit identification, see Fig 1-Fig 3 .

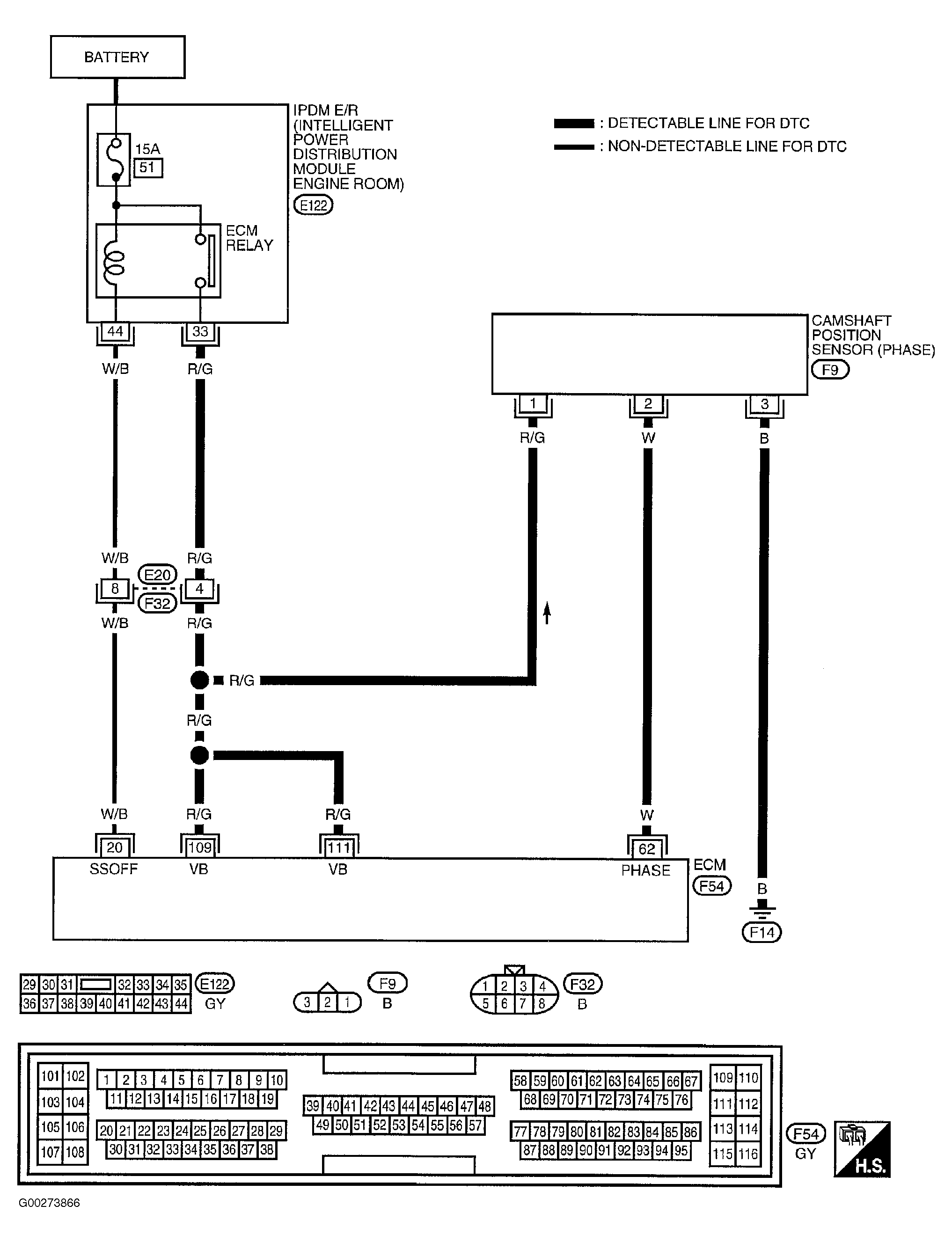

Fig 1: Circuit Identification For DTC P0340: Camshaft Position Sensor (2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

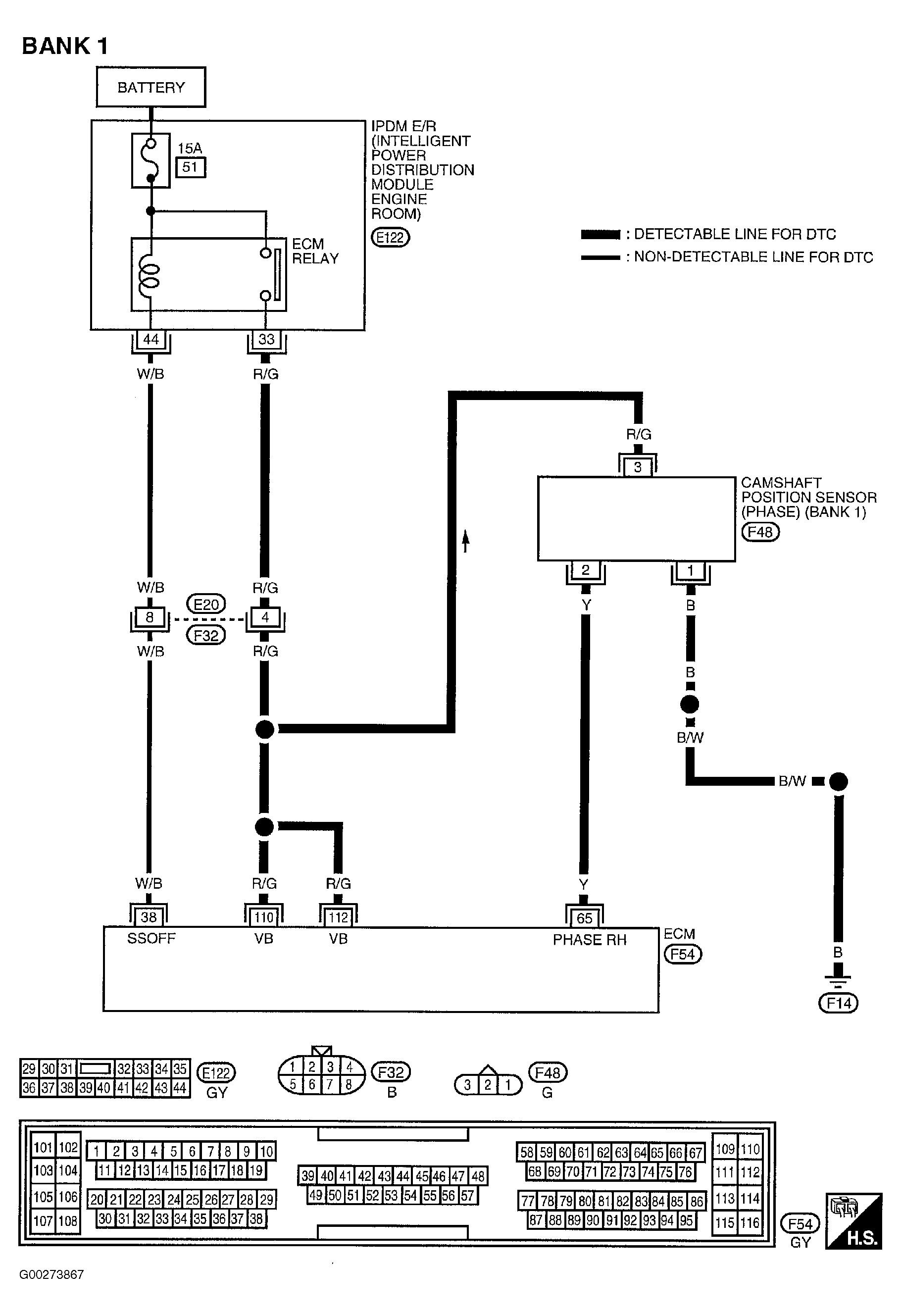

Fig 2: Circuit Identification For DTC P0340: Camshaft Position Sensor (Bank 1 - 3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

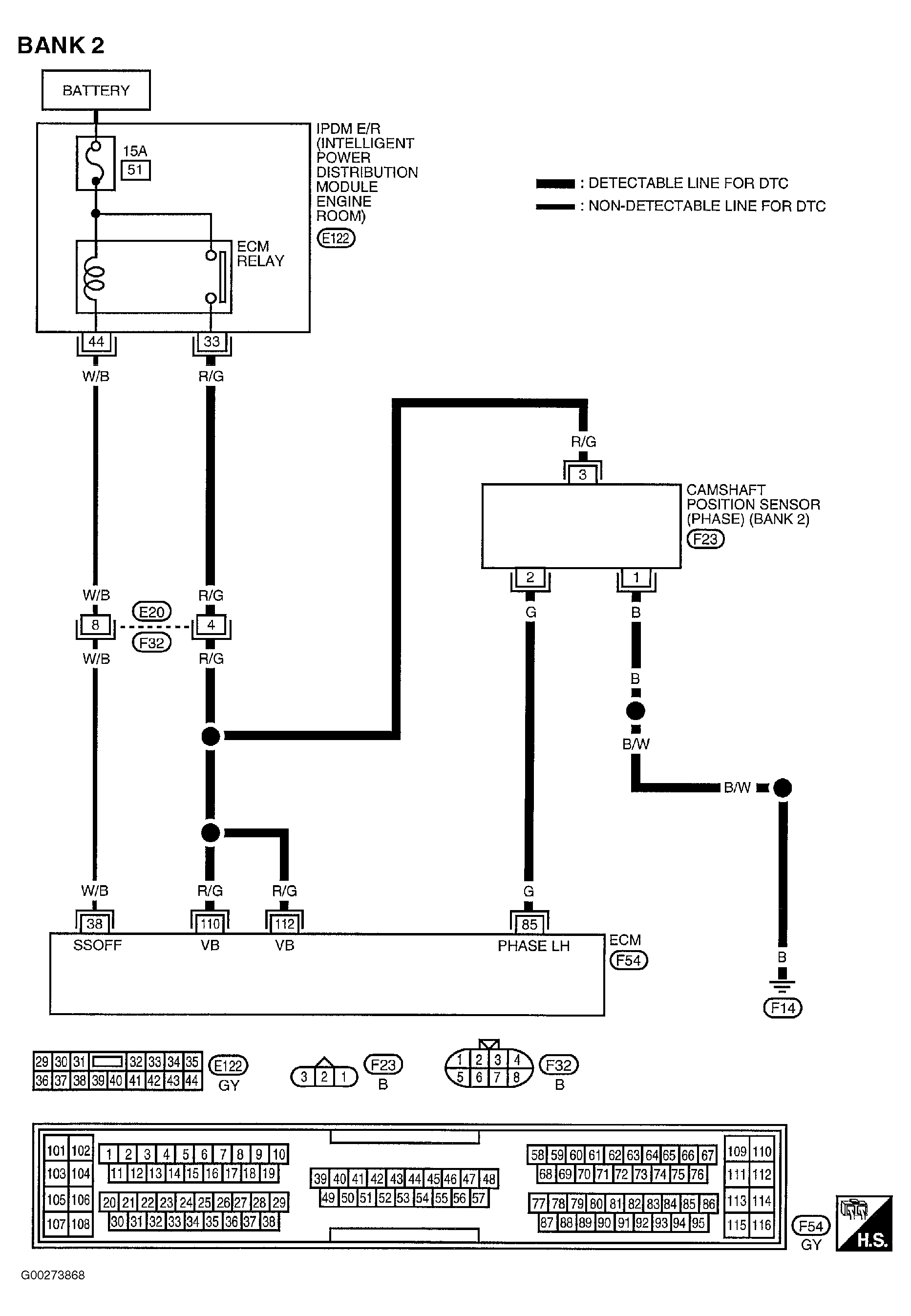

Fig 3: Circuit Identification For DTC P0345: Camshaft Position Sensor (Bank 2 - 3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
