On Board Diagnosis Logic

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not use ECM ground terminals when measuring Input/Output voltage. Doing so may lead to ECM's transistor damage. Use ground other than ECM, such as engine ground.

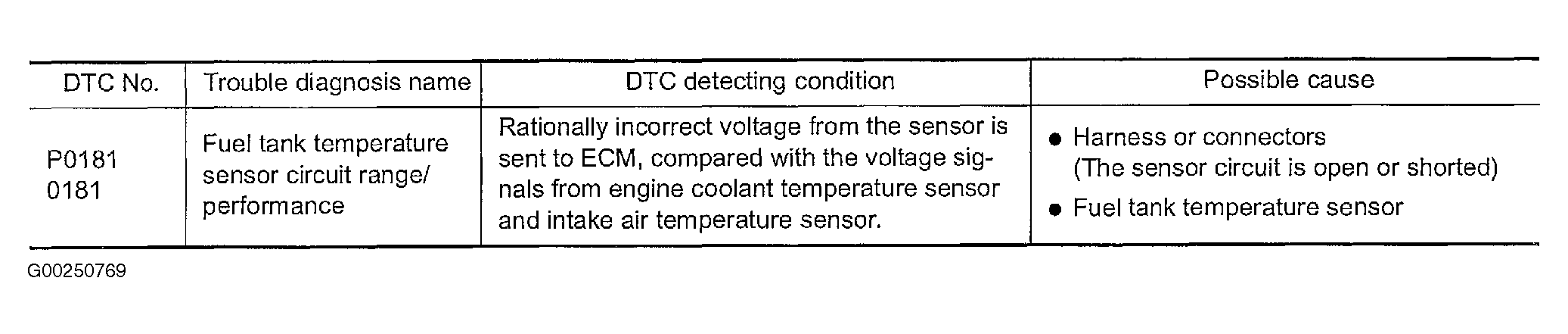

Fig 1: Identifying On Board Diagnosis Logic For DTC P0181: Fuel Tank Temperature Sensor
G00250769Courtesy of NISSAN DIESEL MOTOR CO., LTD.
