Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Fuel Tank Temperature Sensor DTC P0181

For component inspection, see Fig 1.

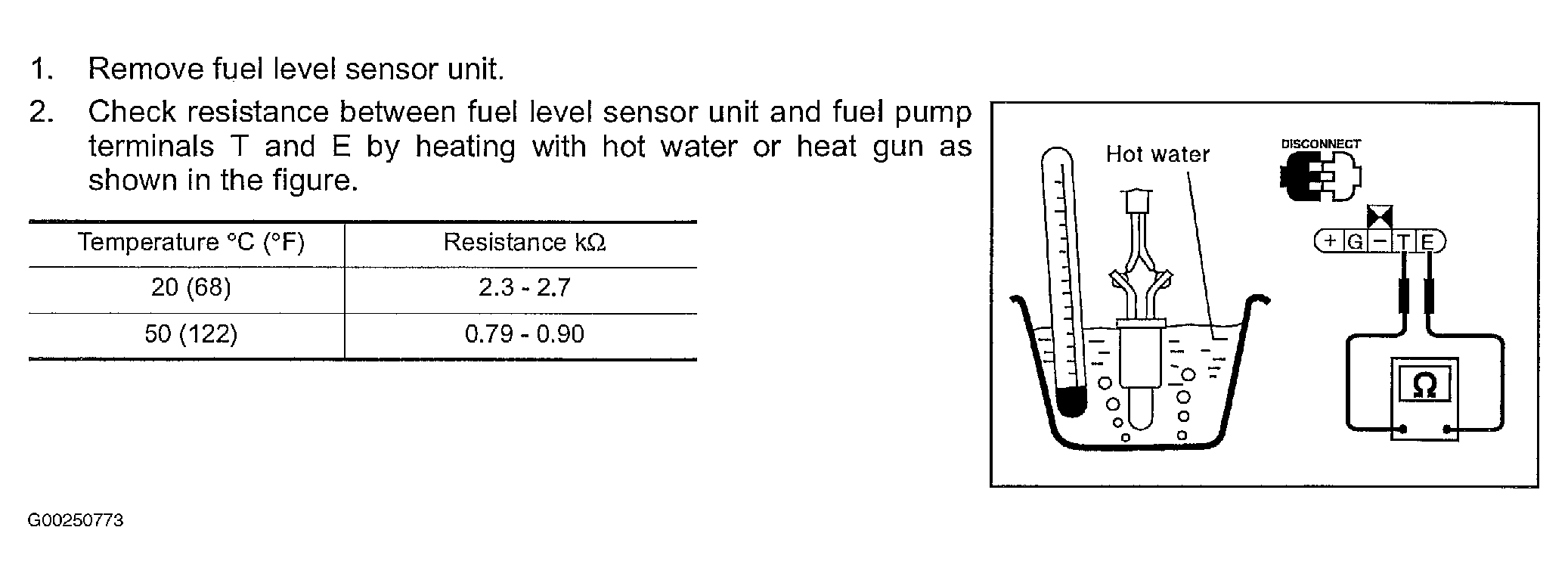

Fig 1: Inspecting Fuel Tank Temperature Sensor For DTC P0181
G00250773Courtesy of NISSAN MOTOR CO., U.S.A.
