Diagnostic Procedure (2.5L)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For fuel pressure release, see FUEL SYSTEM PRESSURE RELEASE in SYSTEM & COMPONENT TESTING article, for Fuel Pressure, see CHECKING FUEL PRESSURE in BASIC DIAGNOSTIC PROCEDURES article, for DTC P0102 or DTC P0103: MAF Sensor, see DTC P0102: MASS AIRFLOW SENSOR CIRCUIT LOW INPUT OR DTC P0103: MASS AIRFLOW SENSOR CIRCUIT HIGH INPUT , for injector circuit, see FUEL CONTROL in SYSTEM & COMPONENT TESTING article, for injector gallery assembly removal, see FUEL SYSTEMS in REMOVAL & INSTALLATION article and for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For diagnostic procedure, see Fig 1-Fig 3 .

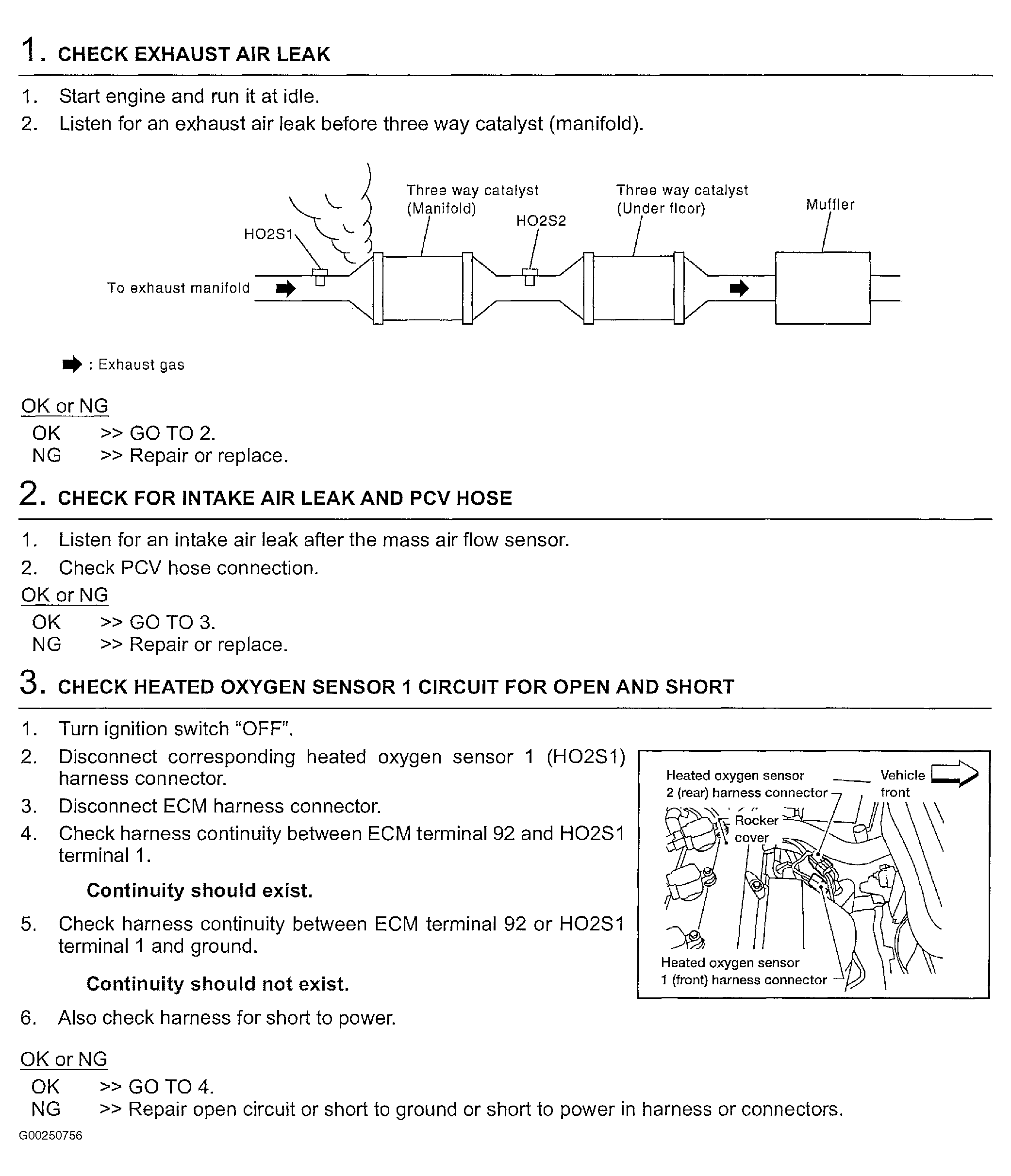

Fig 1: Identifying Diagnostic Procedure For DTC P0171: Fuel Injection System Function (Steps 1-3 Of 8)
G00250756Courtesy of NISSAN MOTOR CO., U.S.A.

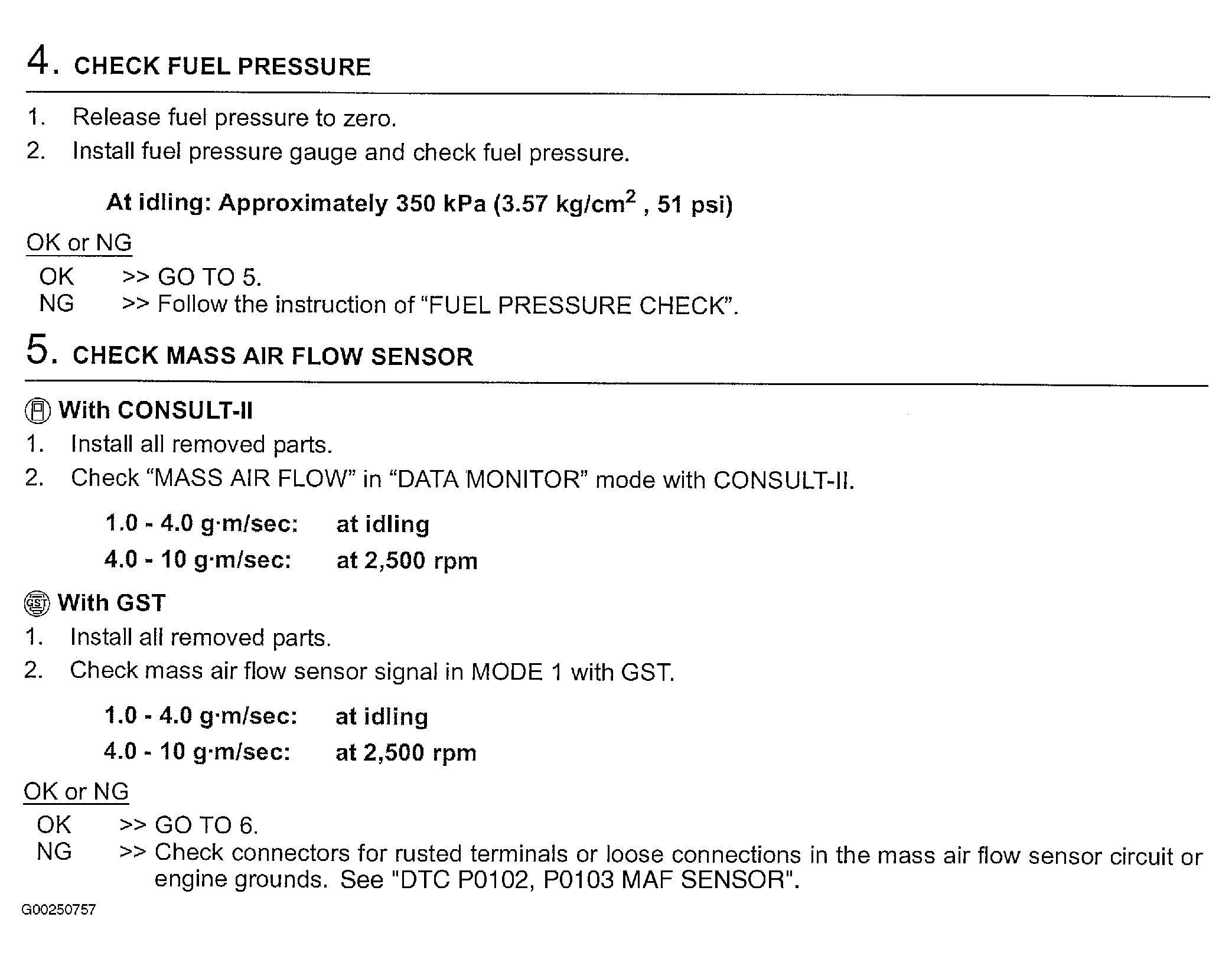

Fig 2: Identifying Diagnostic Procedure For DTC P0171: Fuel Injection System Function (Steps 4-5 Of 8)
G00250757Courtesy of NISSAN MOTOR CO., U.S.A.

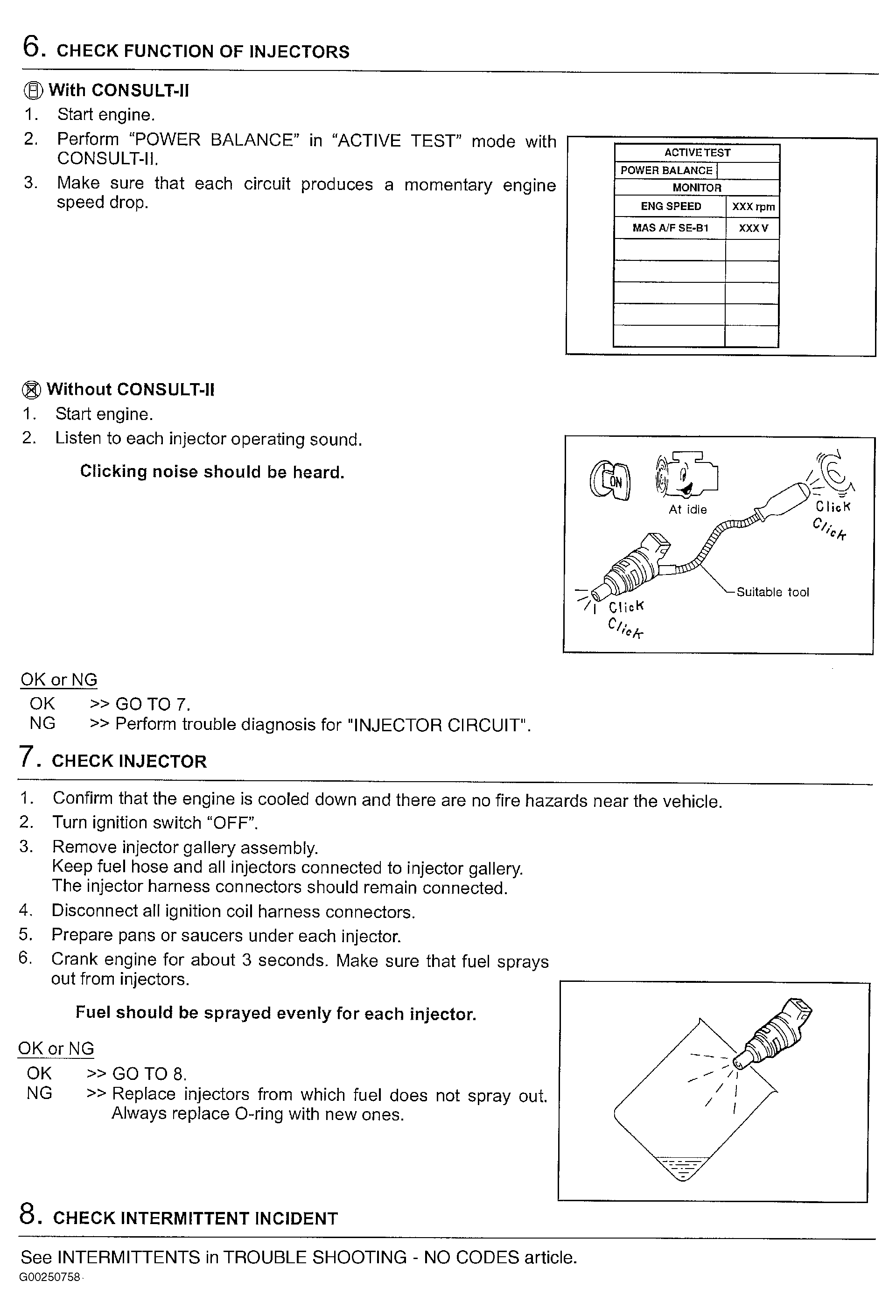

Fig 3: Identifying Diagnostic Procedure For DTC P0171: Fuel Injection System Function (Steps 6-8 Of 8)
G00250758Courtesy of NISSAN MOTOR CO., U.S.A.
