Component Inspection (2.5L)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

With CONSULT-II

For component inspection, see Fig 1.

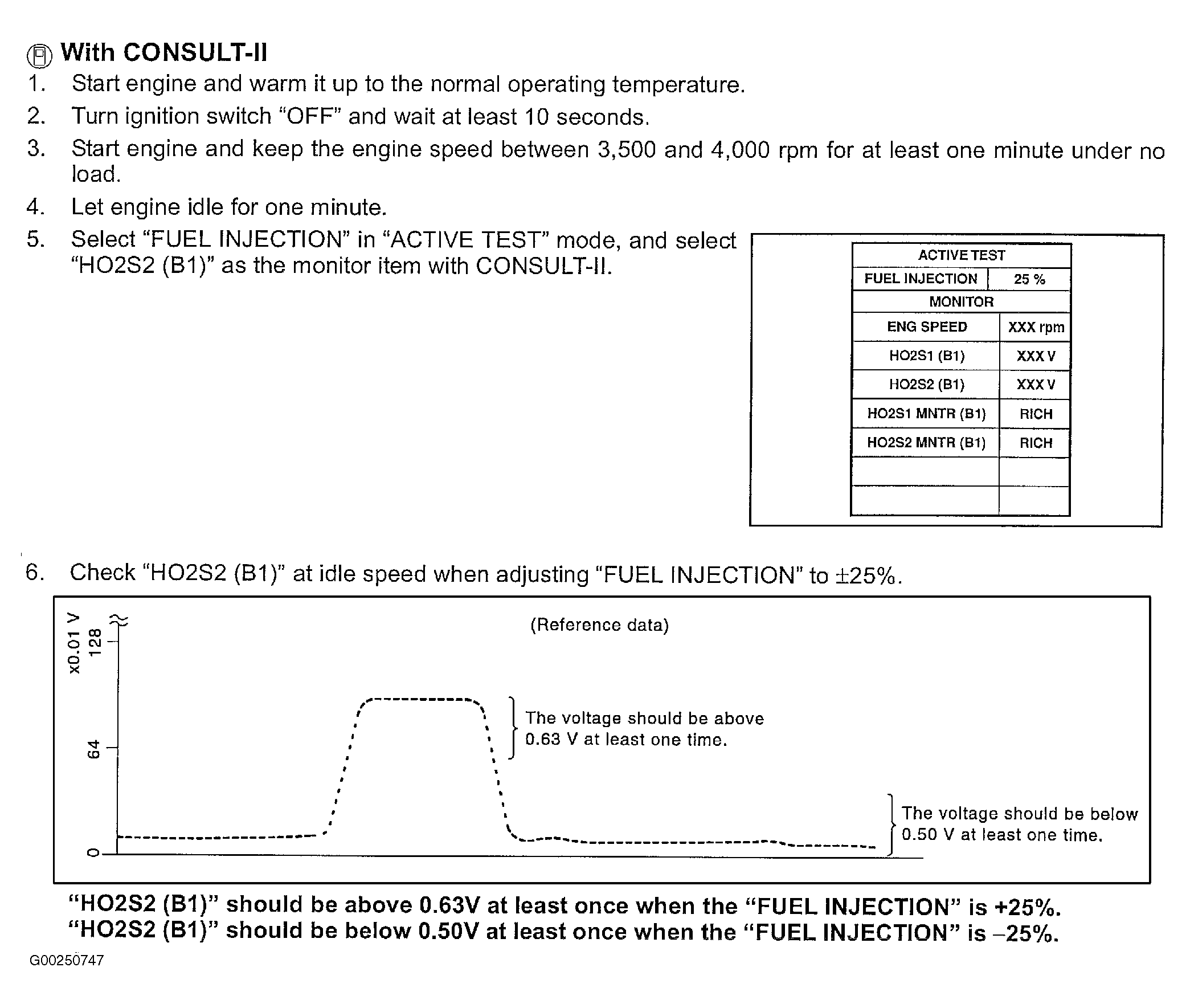

Fig 1: Identifying Component Inspection For DTC P0139: HO2S2, With CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

For component inspection, see Fig 2.

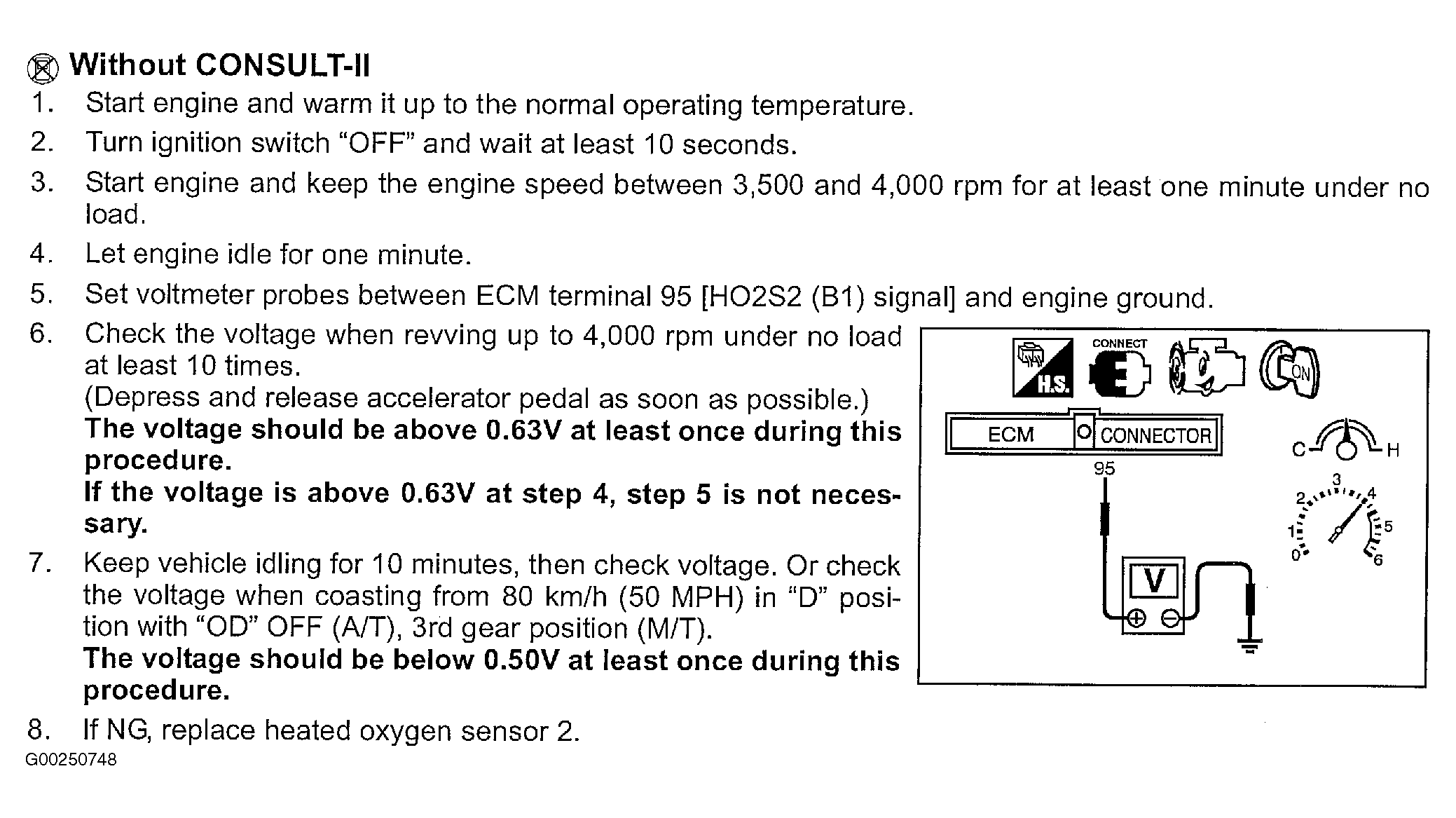

Fig 2: Component Inspection For DTC P0139: HO2S2, Without CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.
