Circuit Terminal Identification

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

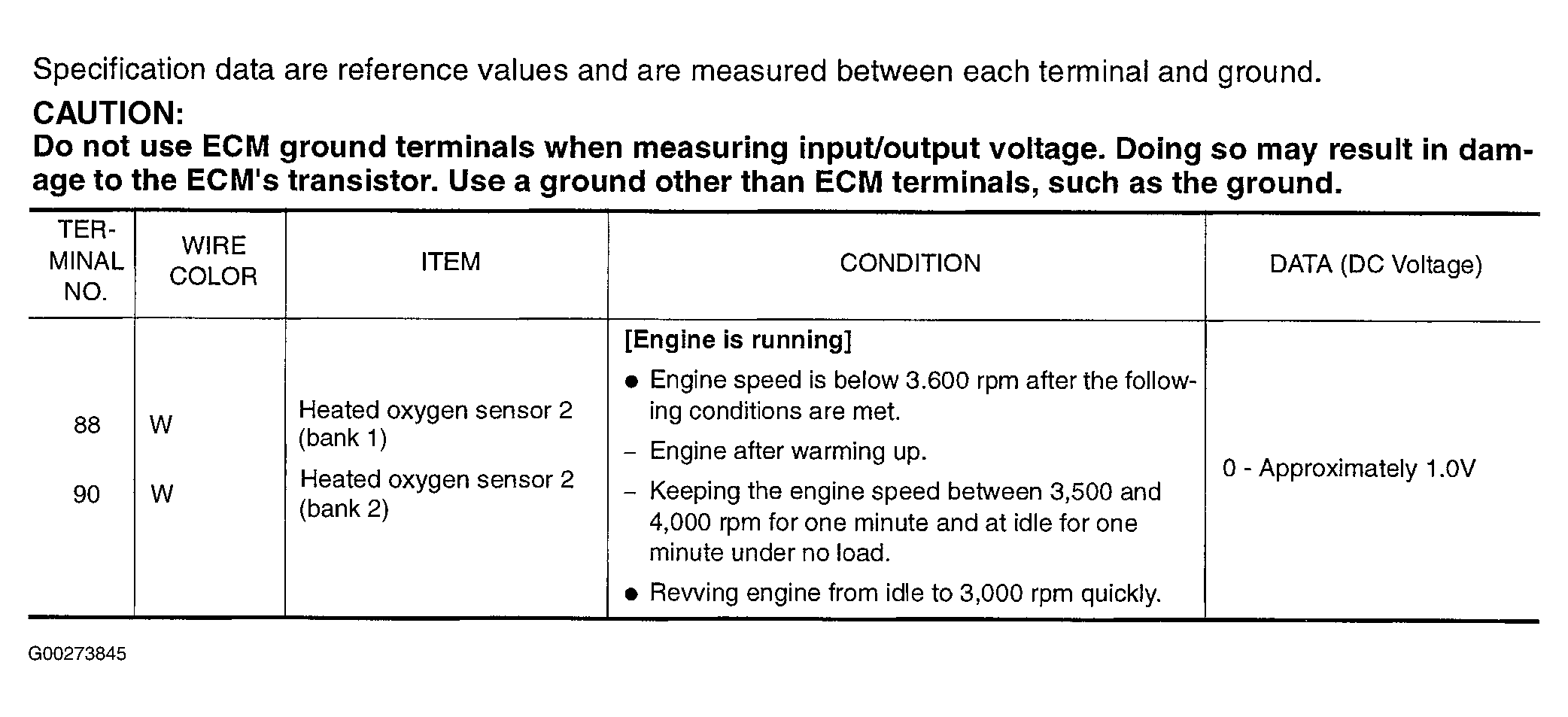

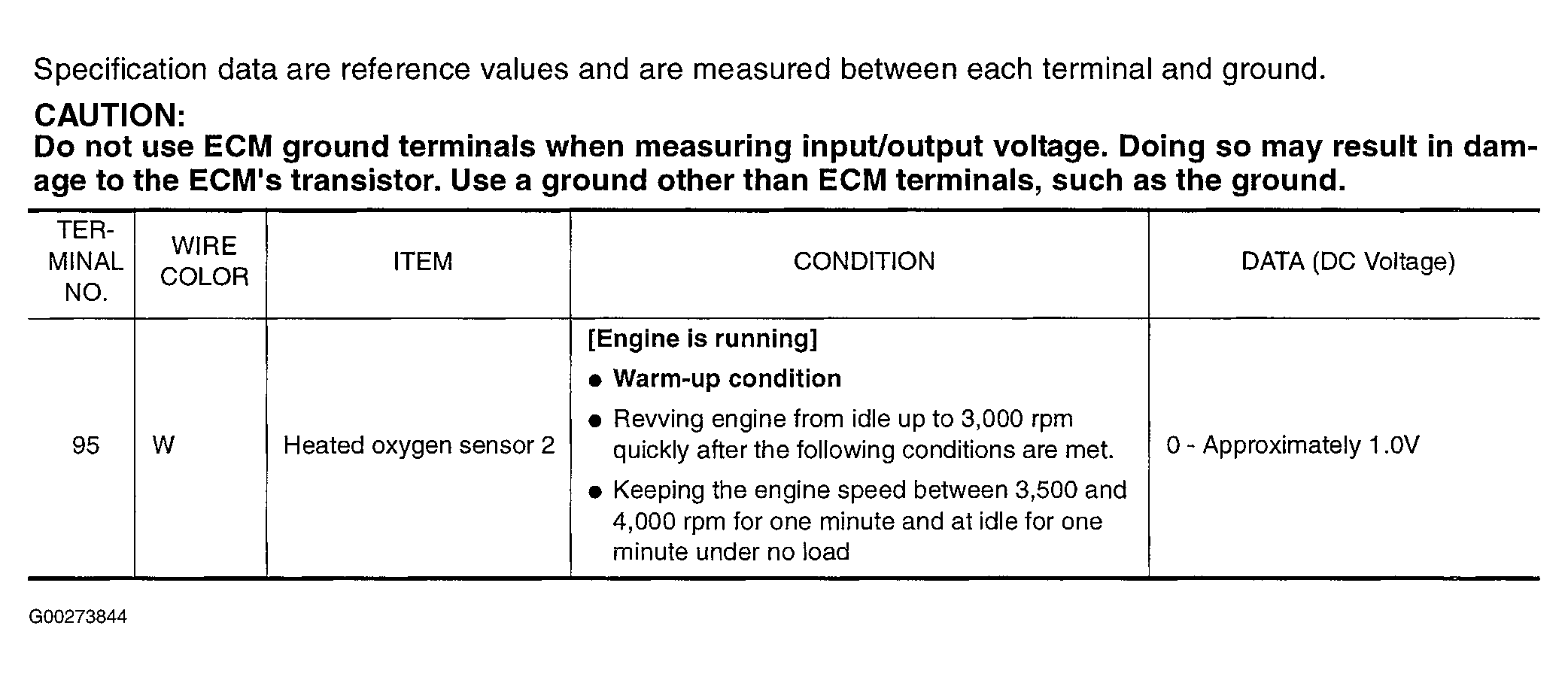

For circuit terminal identification, see Figure or Figure.
