Diagnostic Procedure (3.5L)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: To clear DTC from memory, see CLEARING DIAGNOSTIC TROUBLE CODES , for DTC P0171 or DTC P0174, see DTC P0171: FUEL INJECTION SYSTEM TOO LEAN - BANK 1 OR DTC P0174: FUEL INJECTION SYSTEM TOO LEAN - BANK 2  for DTC P0172 or DTC P0175, see DTC P0172: FUEL INJECTION SYSTEM TOO RICH - BANK 1 OR DTC P0175: FUEL INJECTION SYSTEM TOO RICH - BANK 2 , for heated oxygen sensor 1 heater component inspection, see COMPONENT INSPECTION  under DTC P0031, DTC P0032, DTC P0051 OR DTC P0052: HO2S1 HEATER, for mass air flow sensor component inspection, see COMPONENT INSPECTION  under DTC P0102 OR DTC P0103: MASS AIRFLOW SENSOR, for PCV valve component inspection, see POSITIVE CRANKCASE VENTILATION in SYSTEM & COMPONENT TESTING article, for heated oxygen sensor 1 component inspection, see COMPONENT INSPECTION (3.5L)  and for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For diagnostic procedure (3.5L), see Fig 1- Fig 5 .

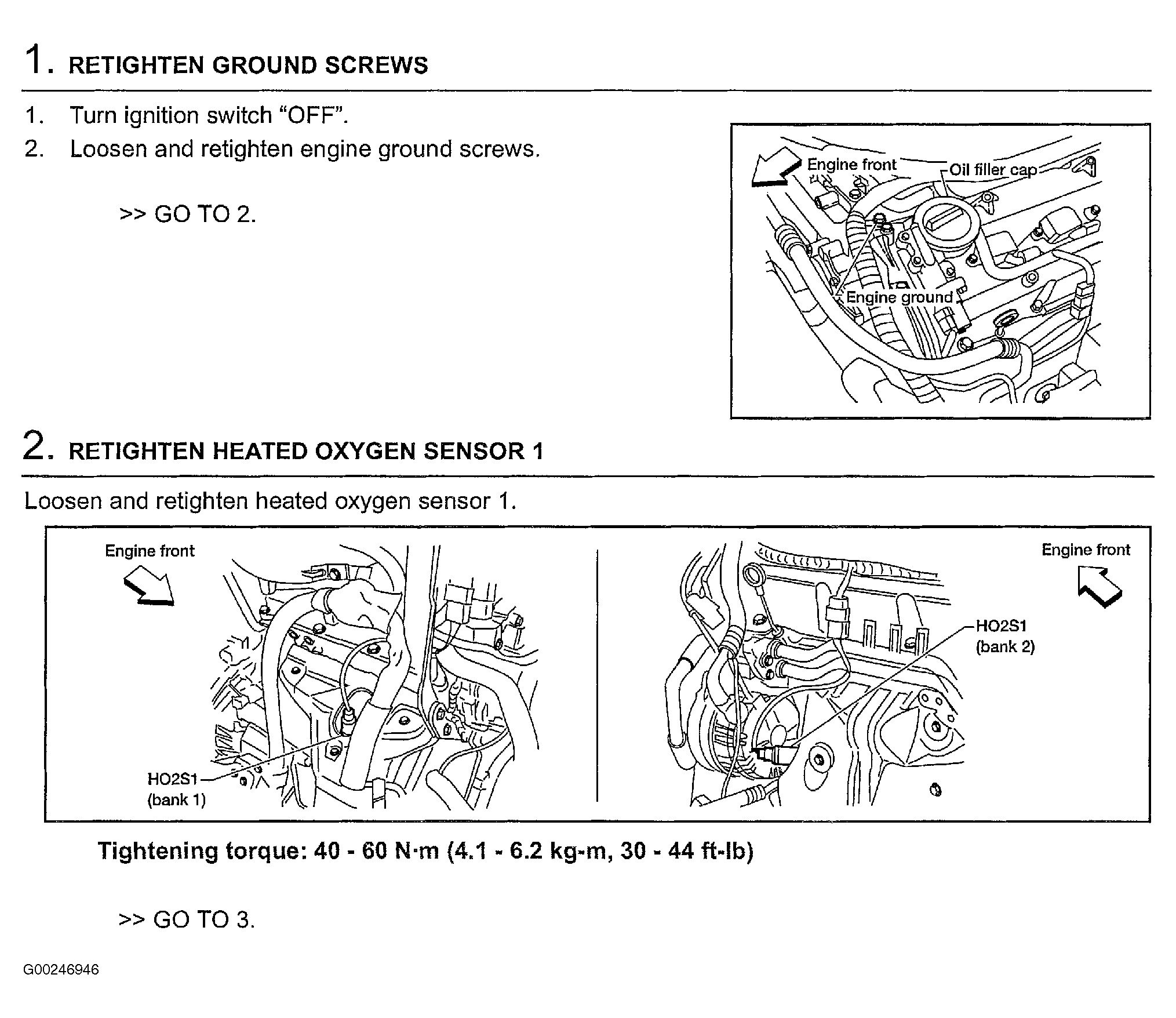

Fig 1: Identifying Diagnostic Procedure For DTC P0133 or P0153: HO2S1 (Steps 1-2 Of 11 - 3.5L)
G00246946Courtesy of NISSAN MOTOR CO., U.S.A.

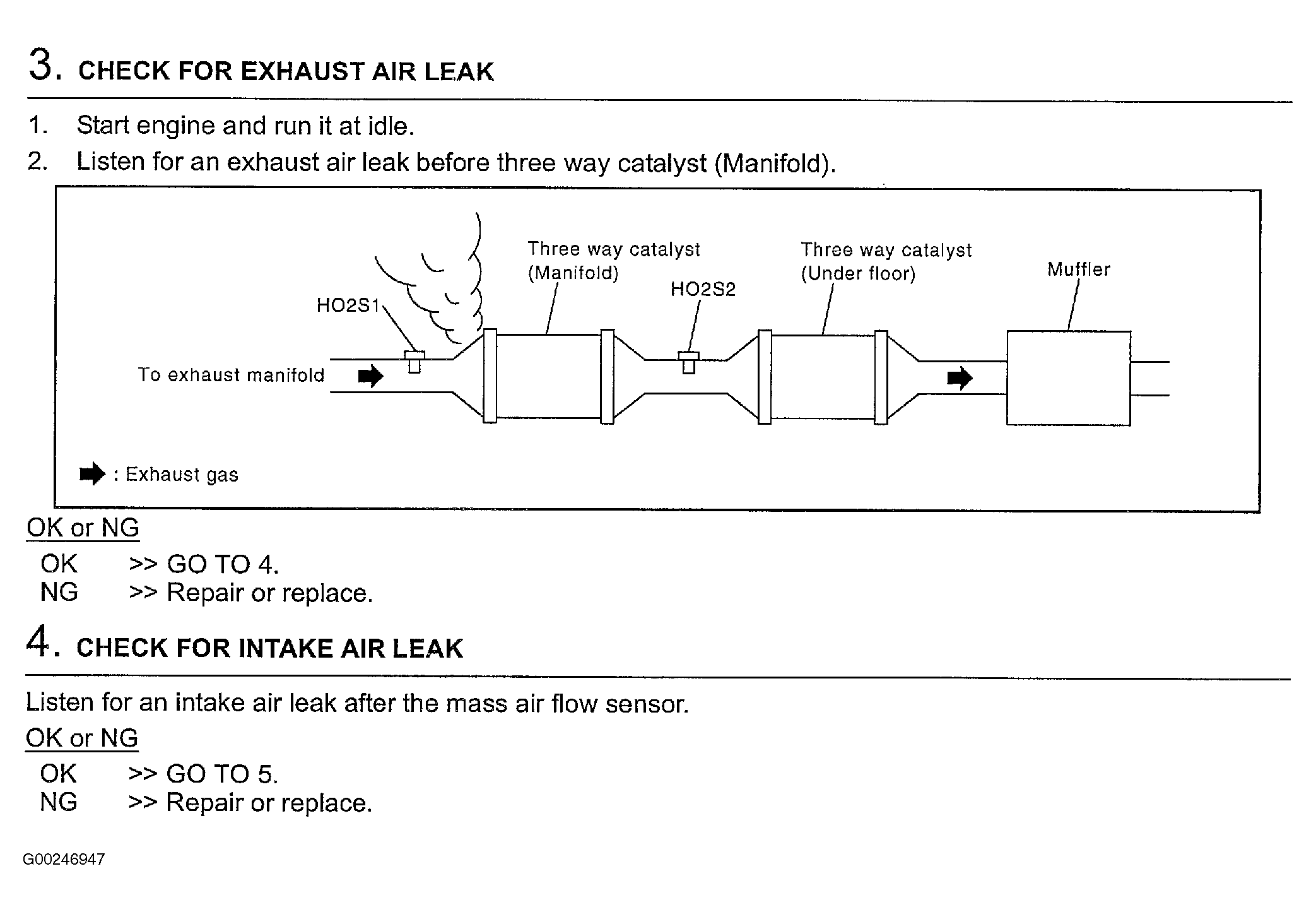

Fig 2: Identifying Diagnostic Procedure For DTC P0133 or P0153: HO2S1 (Steps 3-4 Of 11 - 3.5L)
G00246947Courtesy of NISSAN MOTOR CO., U.S.A.

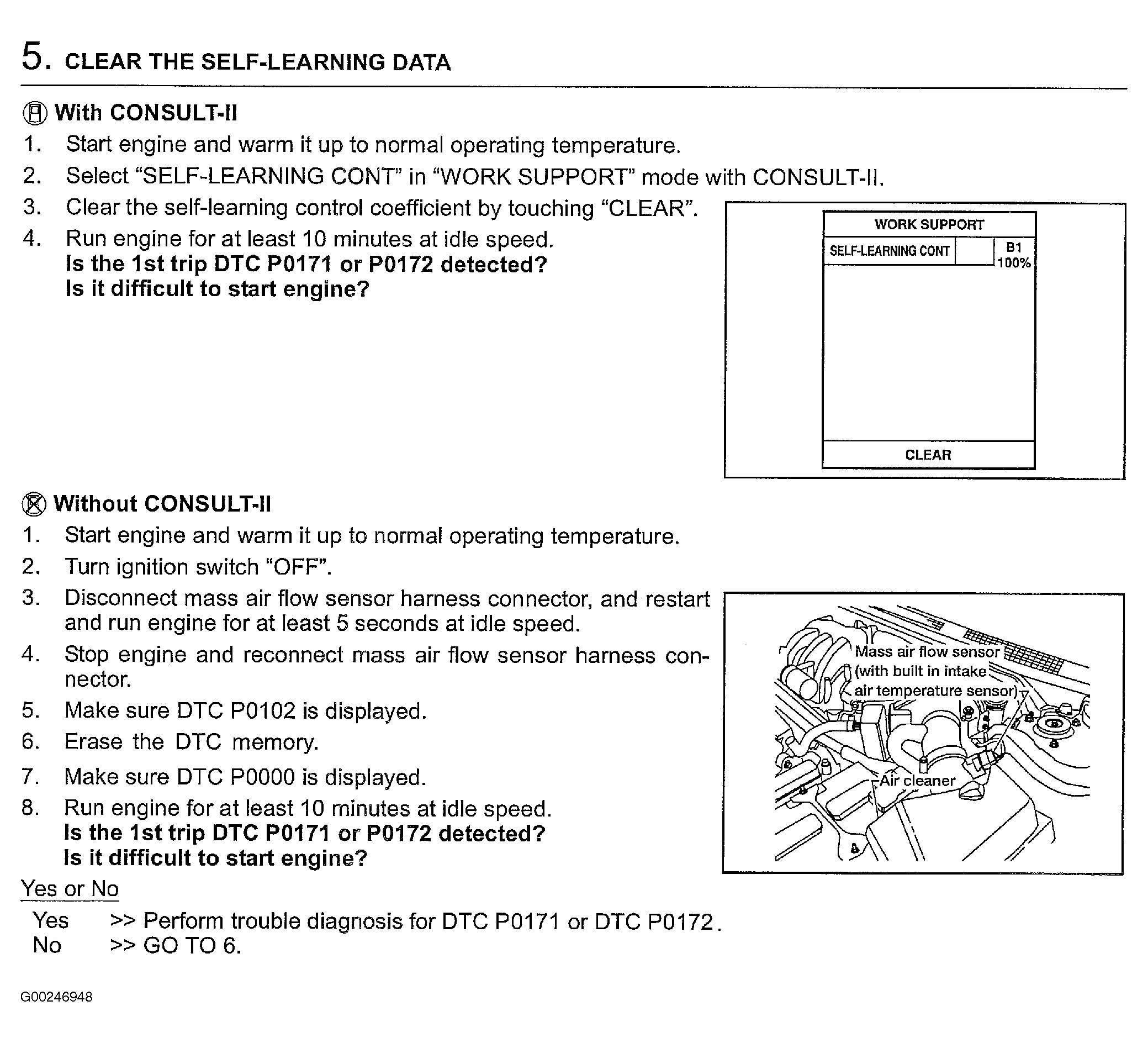

Fig 3: Identifying Diagnostic Procedure For DTC P0133 or P0153: HO2S1 (Step 5 Of 11 - 3.5L)
G00246948Courtesy of NISSAN MOTOR CO., U.S.A.

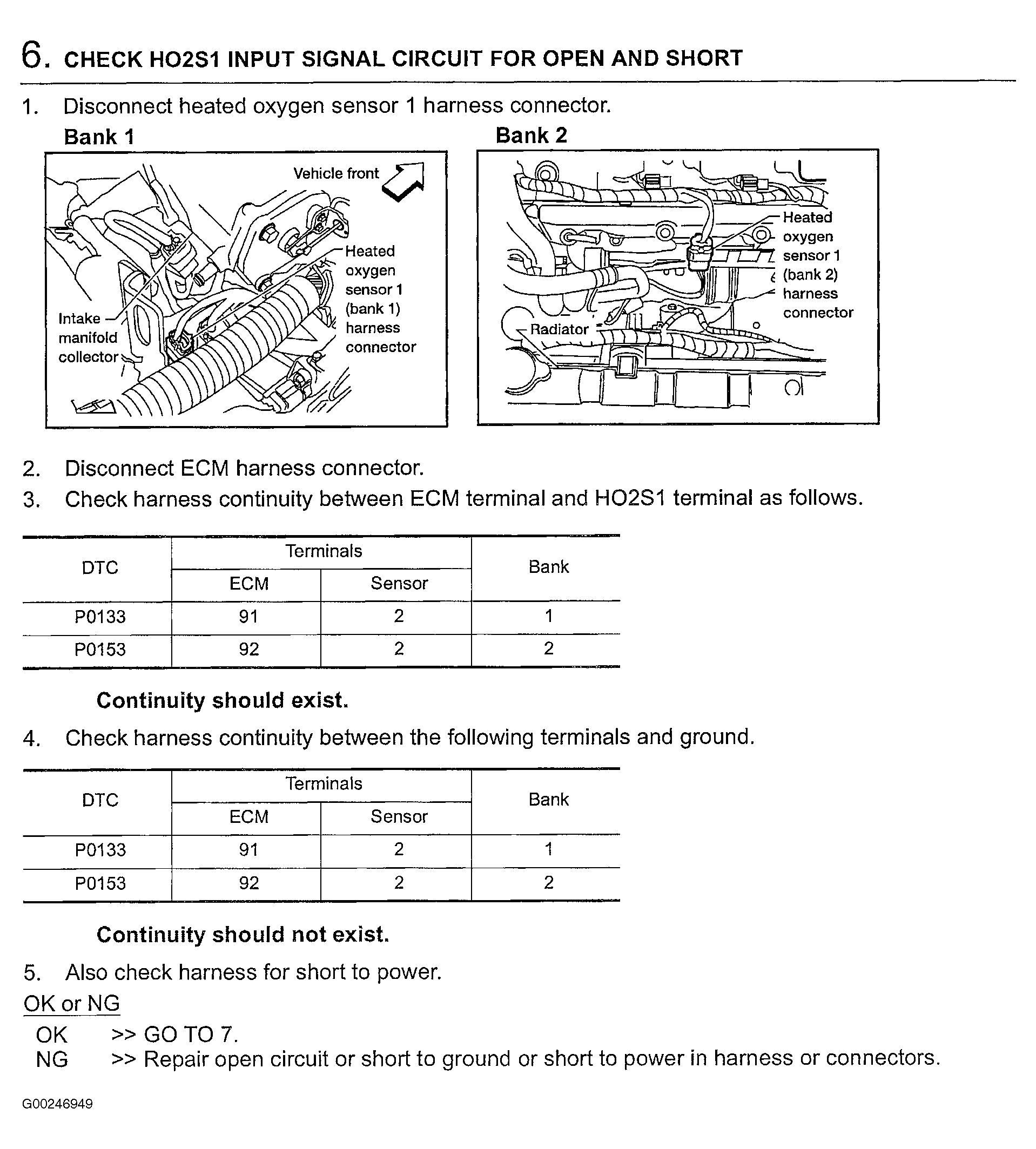

Fig 4: Identifying Diagnostic Procedure For DTC P0133 or P0153: HO2S1 (Step 6 Of 11 - 3.5L)
G00246949Courtesy of NISSAN MOTOR CO., U.S.A.

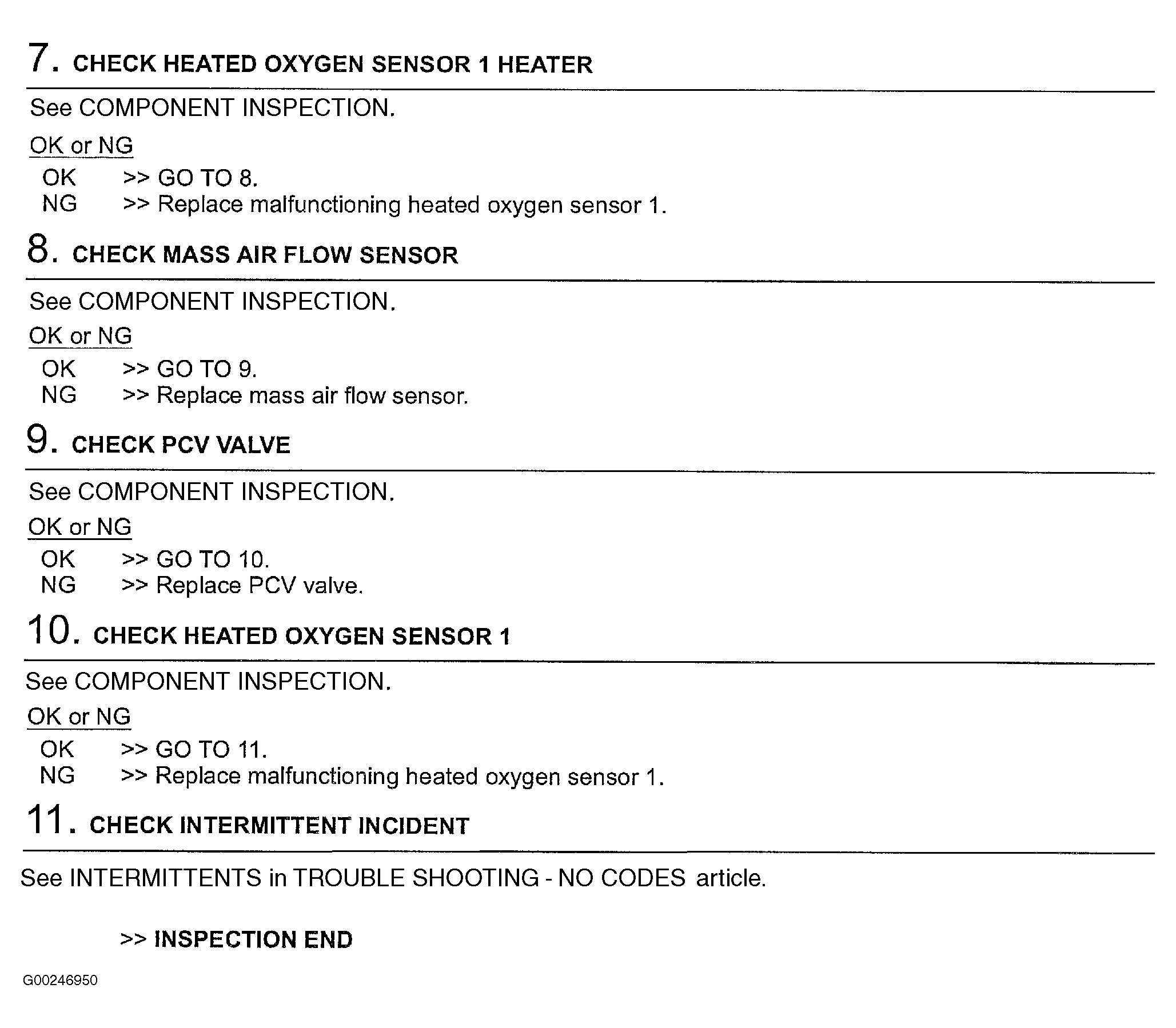

Fig 5: Identifying Diagnostic Procedure For DTC P0133 or P0153: HO2S1 (Steps 7-11 Of 11 - 3.5L)
G00246950Courtesy of NISSAN MOTOR CO., U.S.A.
