Component Inspection (2.5L)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Heated Oxygen Sensor 1 (With CONSULT-II)

For component inspection, see Fig 1.

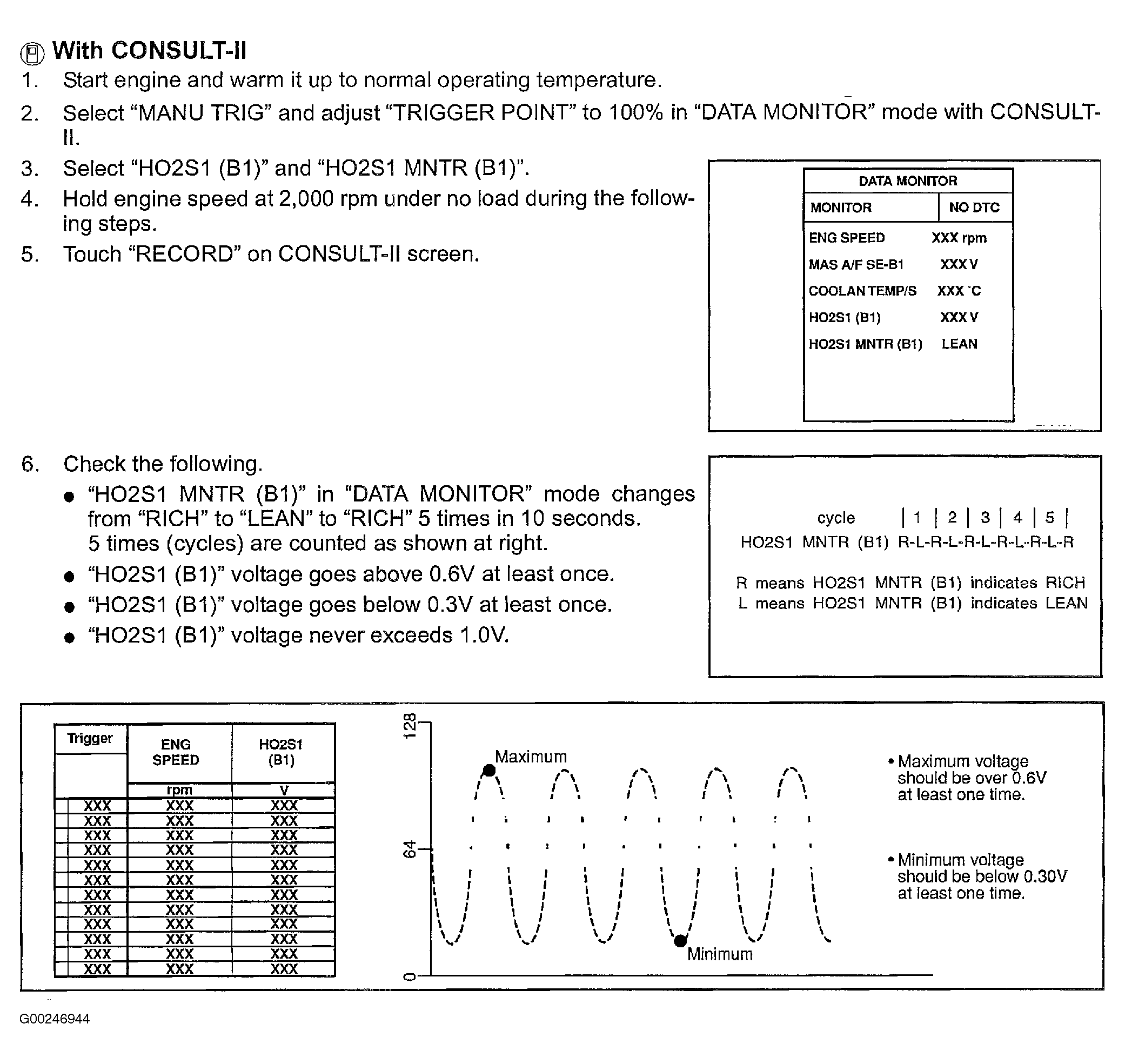

Fig 1: Inspecting Heated Oxygen Sensor 1 For DTC P0133 With CONSULT-II (2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

Heated Oxygen Sensor 1 (With GST)

For component inspection, see Fig 2.

Fig 2: Inspecting Heated Oxygen Sensor 1 For DTC P0133 With GST (2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
