Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Intake Air Temperature Sensor

For intake air temperature sensor, see Fig 1.

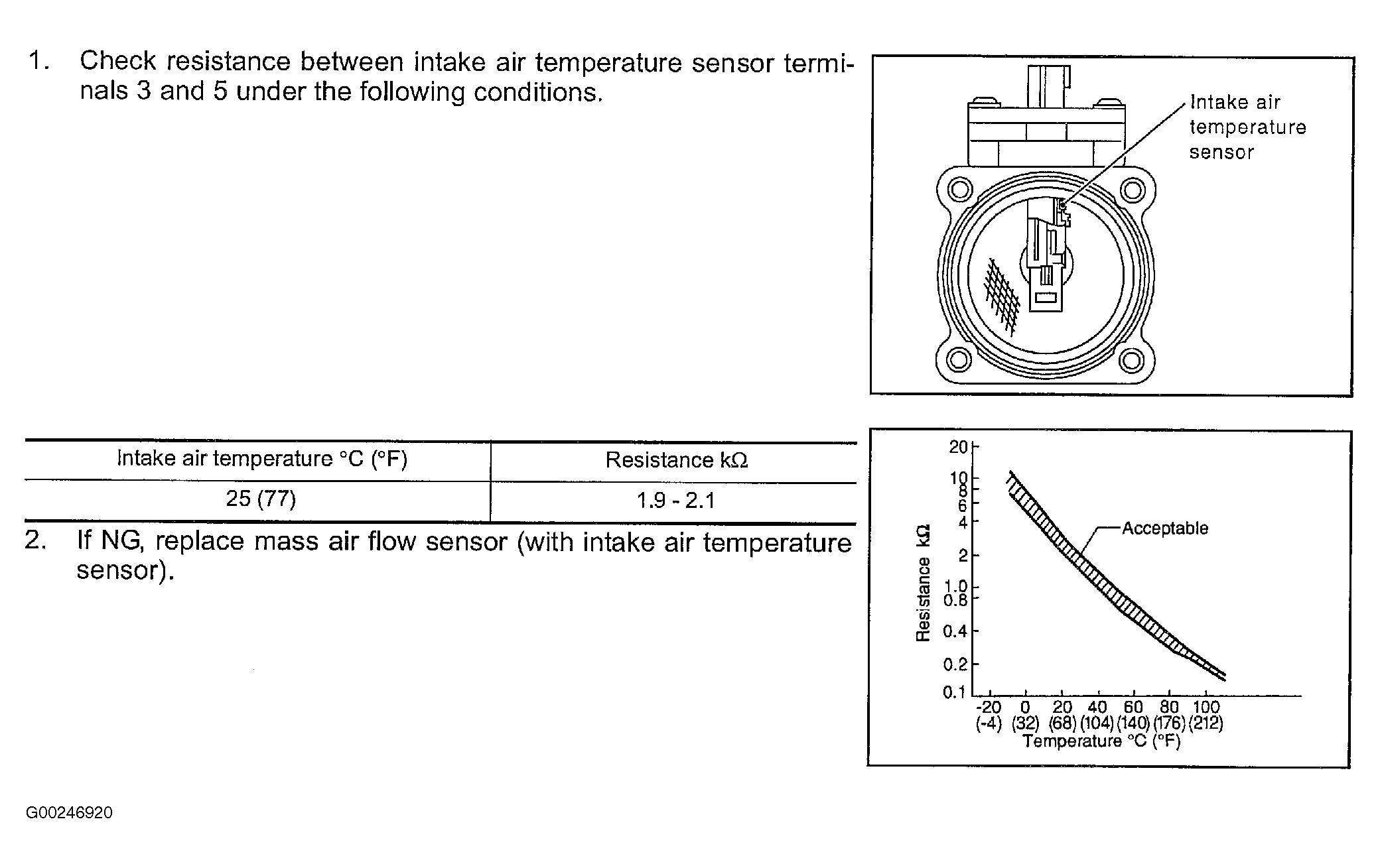

Fig 1: Inspecting Intake Air Temperature Sensor
G00246920Courtesy of NISSAN MOTOR CO., U.S.A.
