Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Engine Coolant Temperature Sensor

For component inspection, see Fig 1.

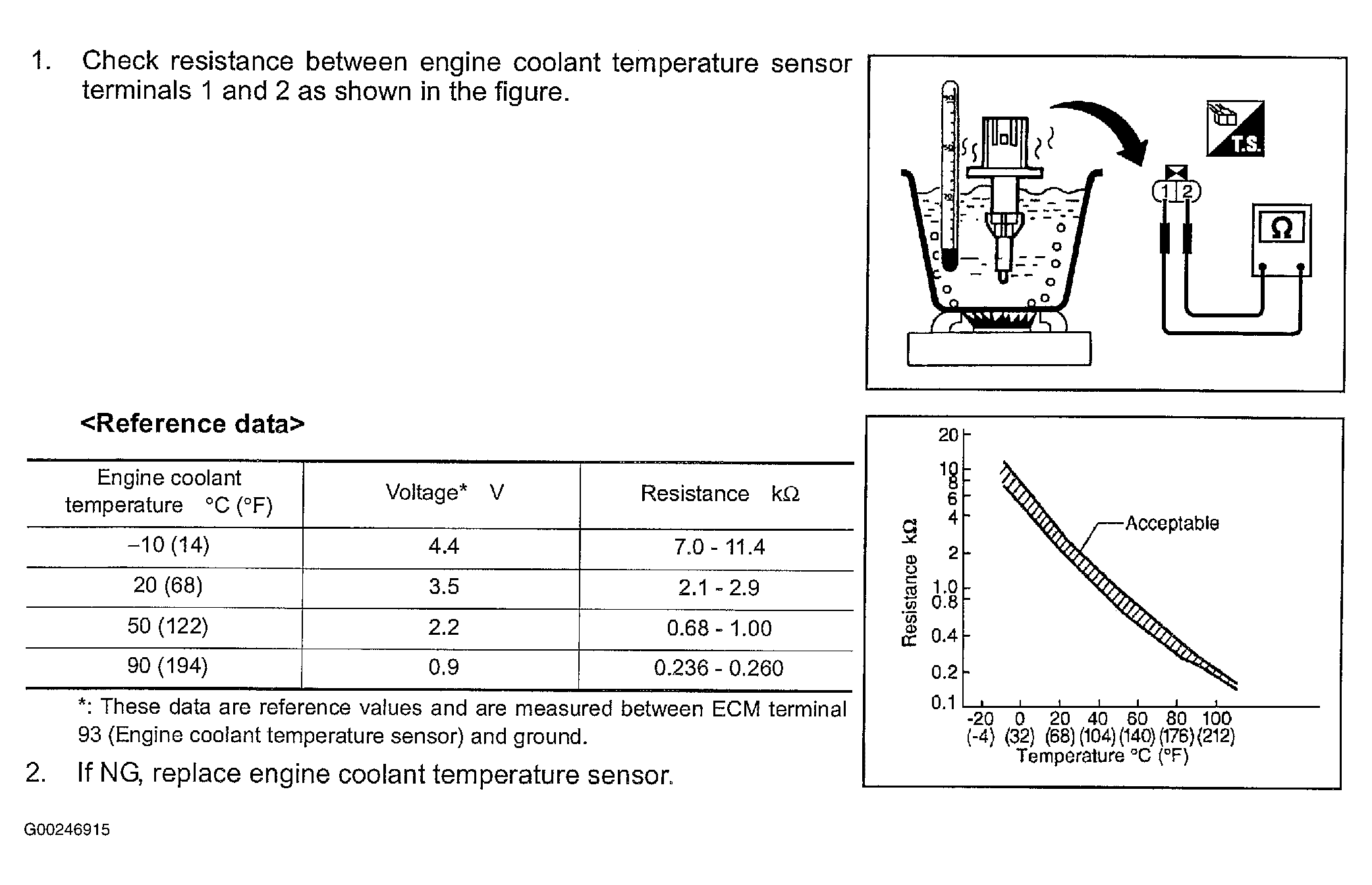

Fig 1: Testing Engine Coolant Temperature Sensor For DTC P0125
G00246915Courtesy of NISSAN MOTOR CO., U.S.A.
