Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For component inspection, see COMPONENT INSPECTION and for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For diagnostic procedure, see Fig 1 - Fig 3 .

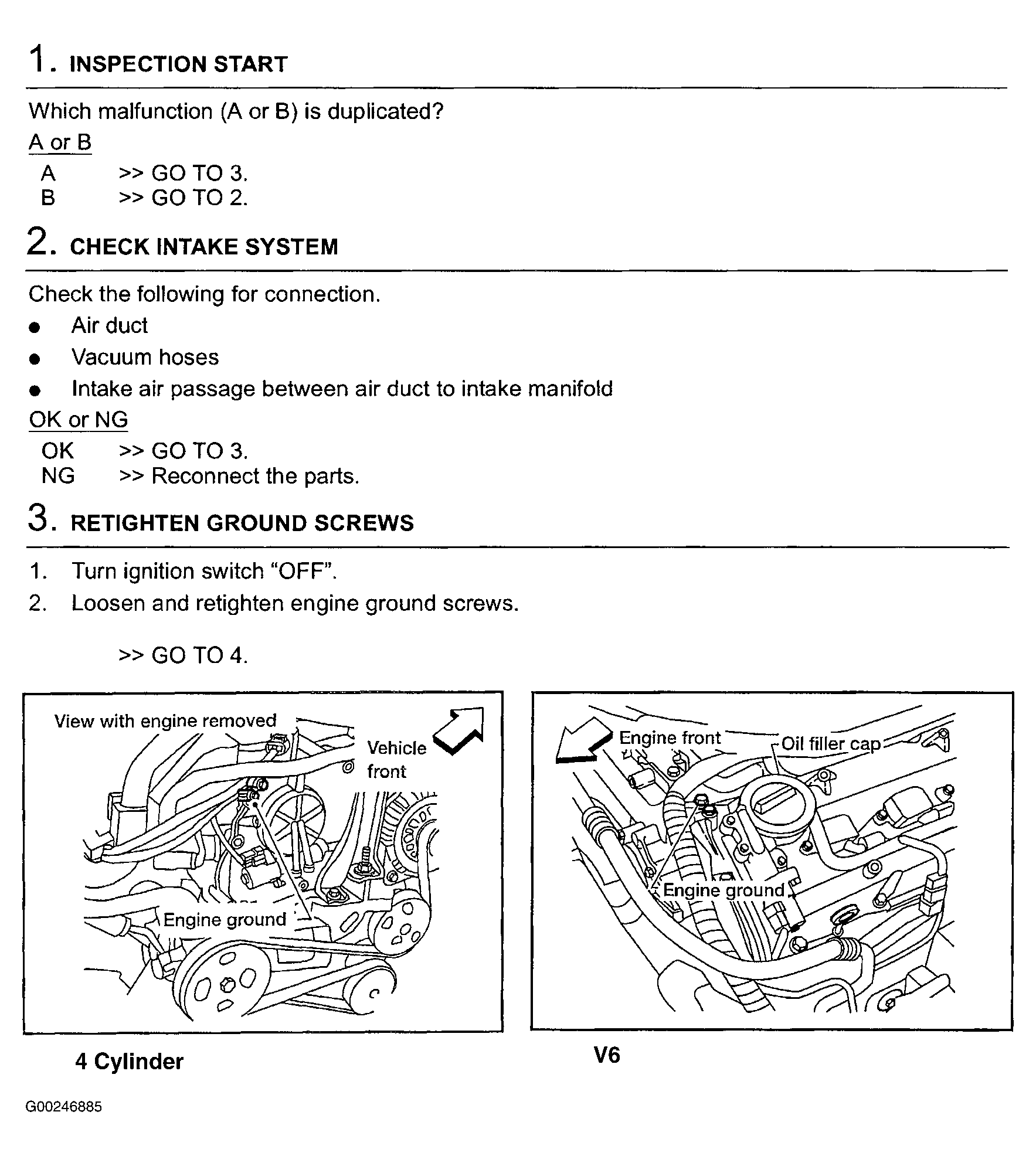

Fig 1: Identifying Diagnostic Procedure For DTC P0101: Mass Air Flow Sensor, Steps 1-3 Of 9

Courtesy of NISSAN MOTOR CO., U.S.A.

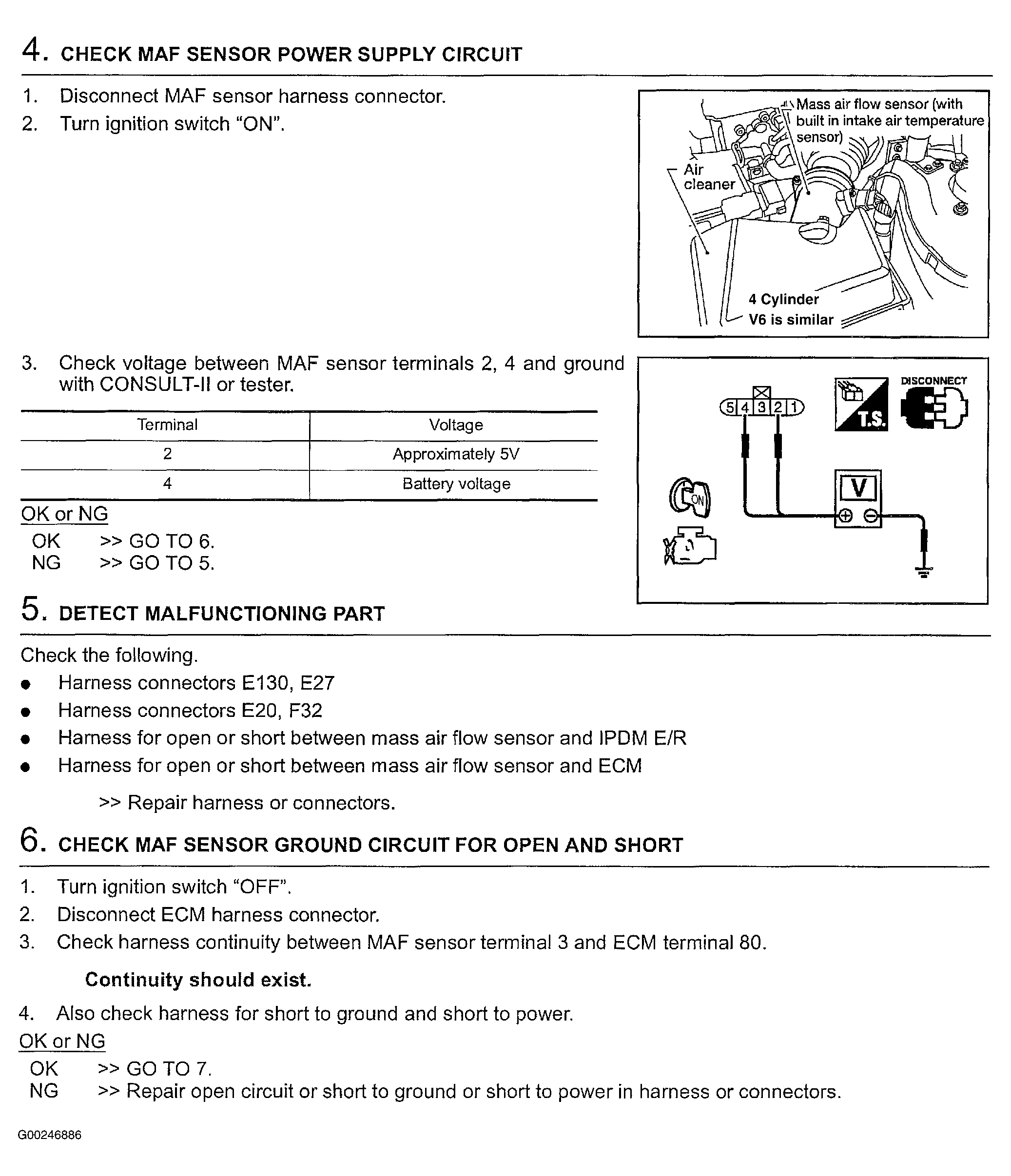

Fig 2: Identifying Diagnostic Procedure For DTC P0101 Mass Air Flow Sensor, Steps 4-6 Of 9

Courtesy of NISSAN MOTOR CO., U.S.A.

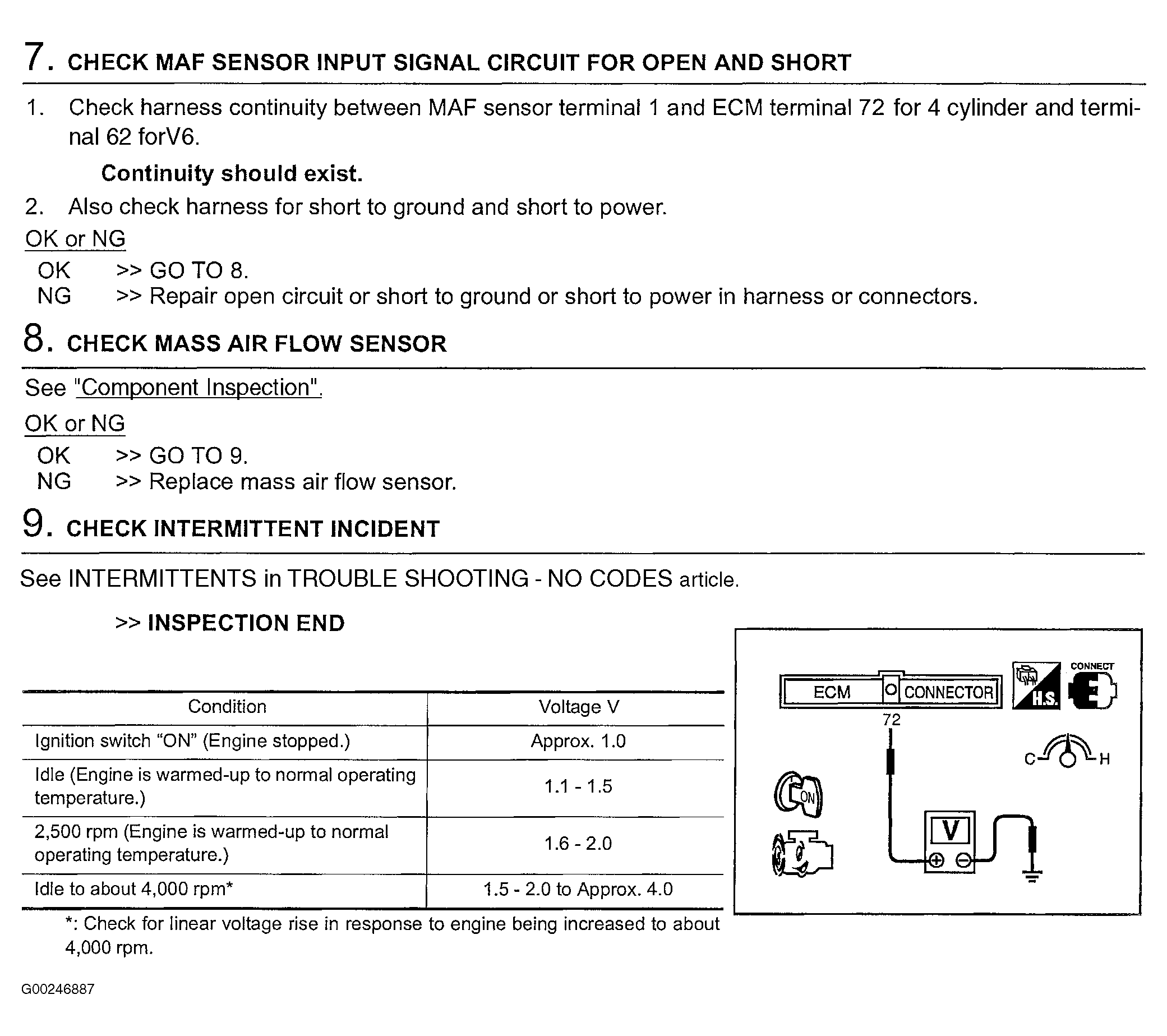

Fig 3: Identifying Diagnostic Procedure For DTC P0101: Mass Air Flow Sensor, Steps 7-9 Of 9

Courtesy of NISSAN MOTOR CO., U.S.A.
