Diagnostic Procedure (3.5L)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For system and component testing, see SYSTEM & COMPONENT TESTING article and for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For diagnostic procedure (3.5L), see Fig 1 - Fig 3 .

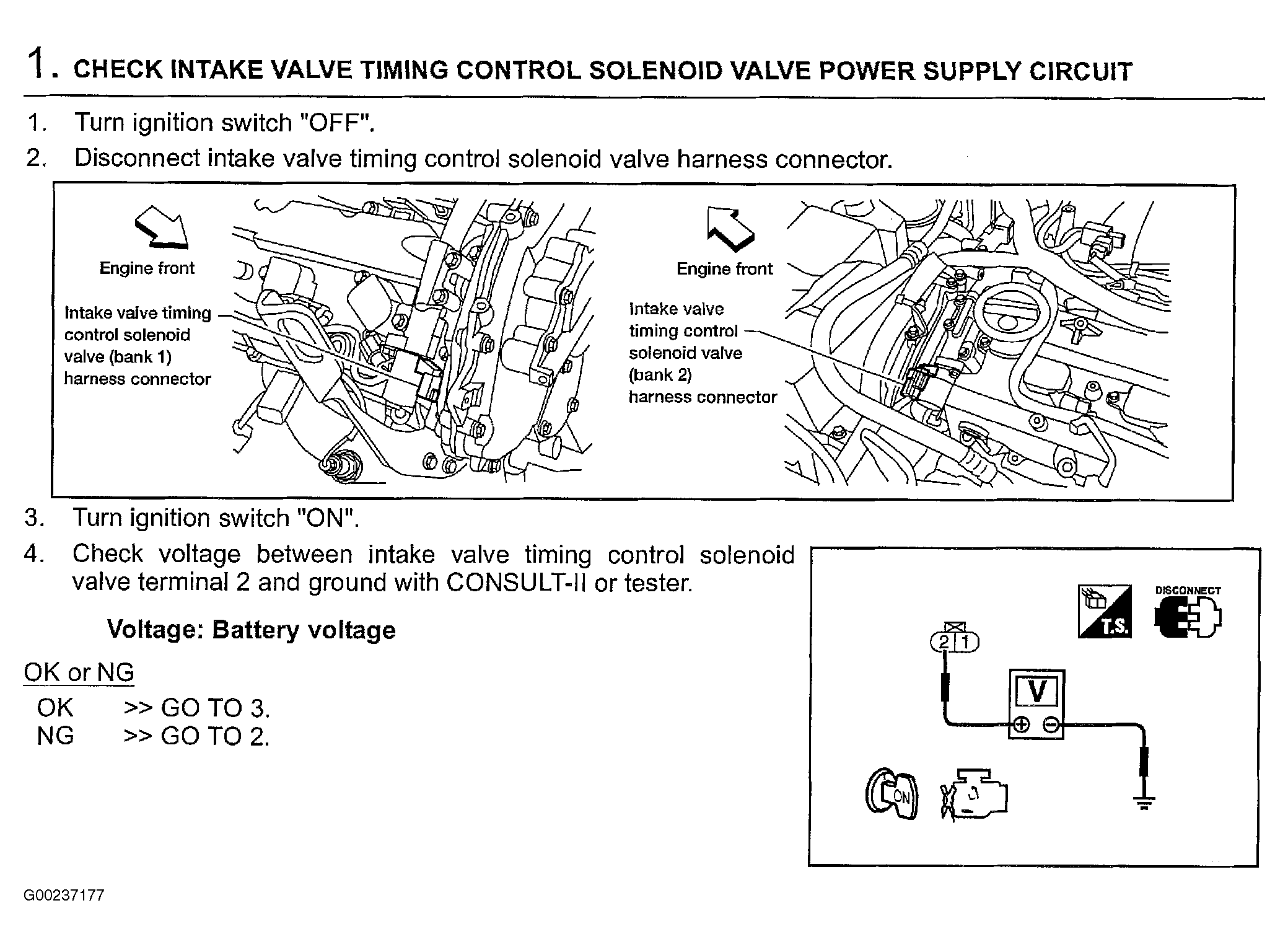

Fig 1: Identifying Diagnostic Procedure, Step 1 Of 9 (3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

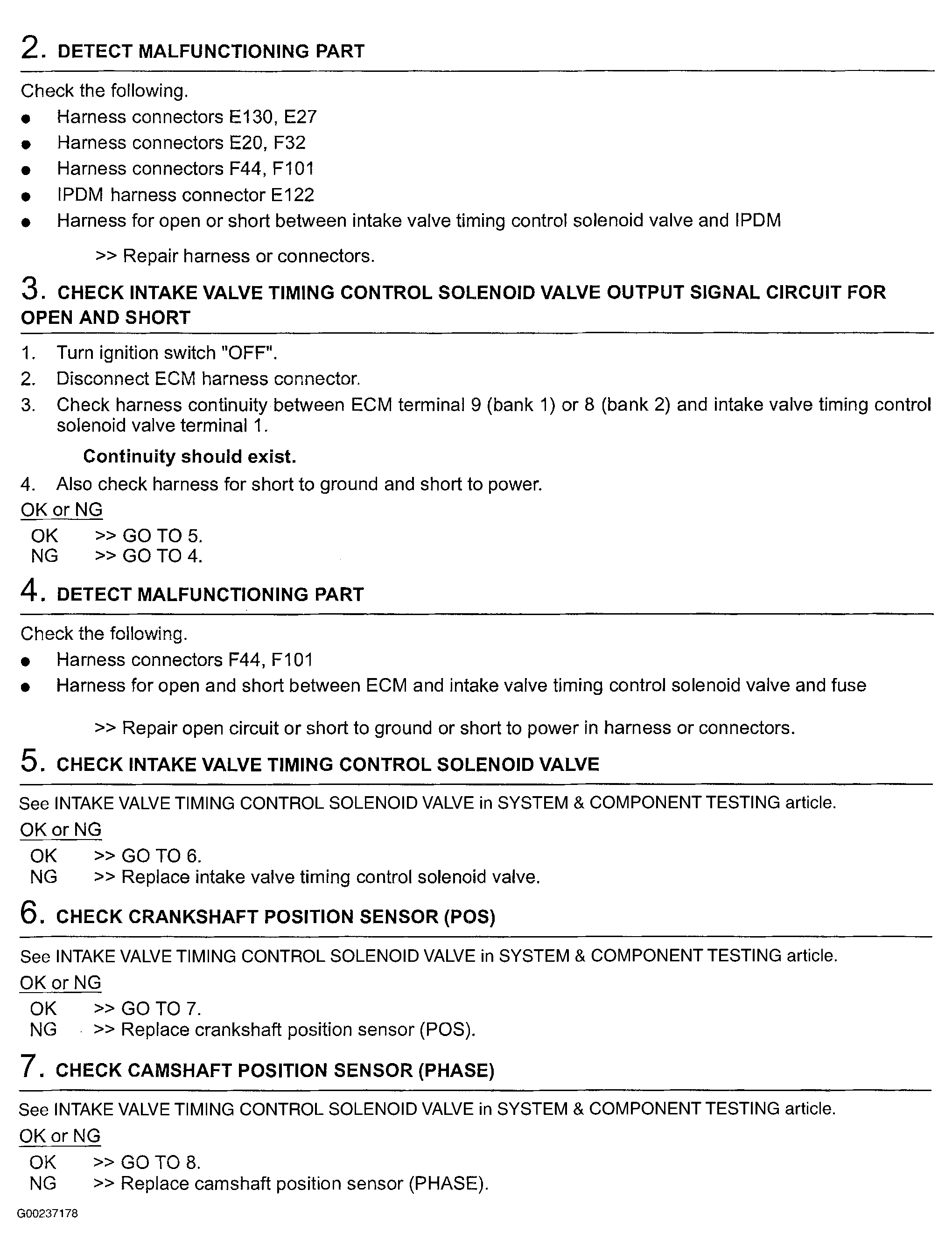

Fig 2: Identifying Diagnostic Procedure, Steps 2-7 Of 9 (3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

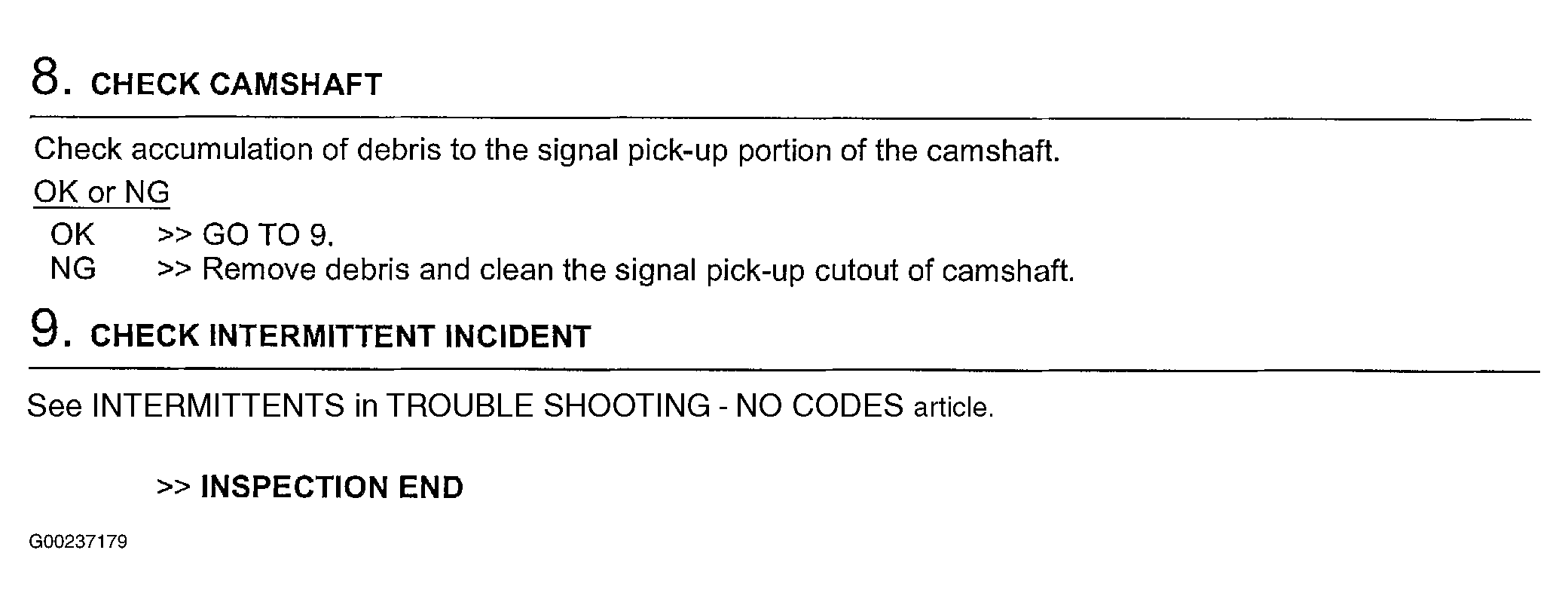

Fig 3: Identifying Diagnostic Procedure, Step 8-9 Of 9 (3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
