Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Intake Valve Timing Control Solenoid Valve

  1. Disconnect intake valve timing control solenoid valve harness connector.
  2. Check resistance between intake valve timing control solenoid valve terminals as shown. See Fig 1.

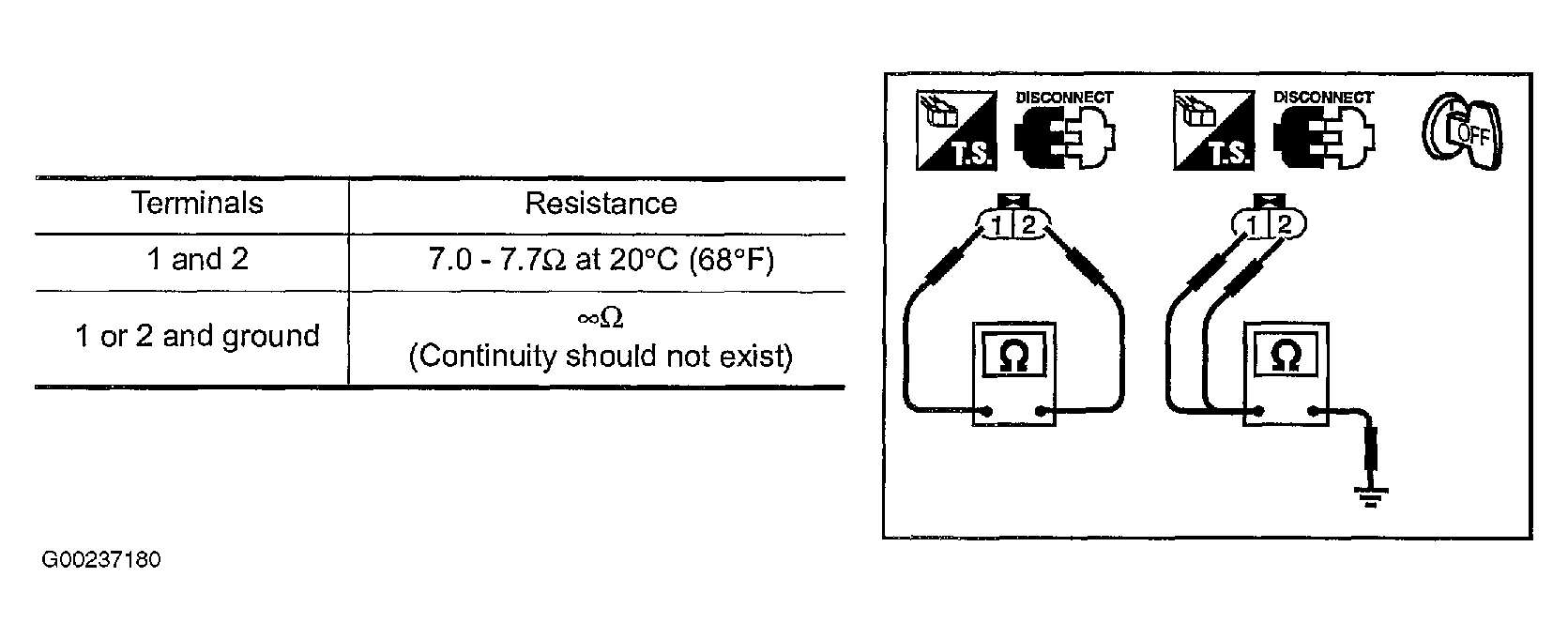

Fig 1: Identifying Intake Valve Timing Control Solenoid Valve Resistance & Continuity Values (3.5L)
G00237180Courtesy of NISSAN MOTOR CO., U.S.A.
