Removal and Installation of Steering Wheel Audio Control Switches

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove steering wheel. Refer to REMOVAL AND INSTALLATION .
Remove horn switch screws and remove horn switch.

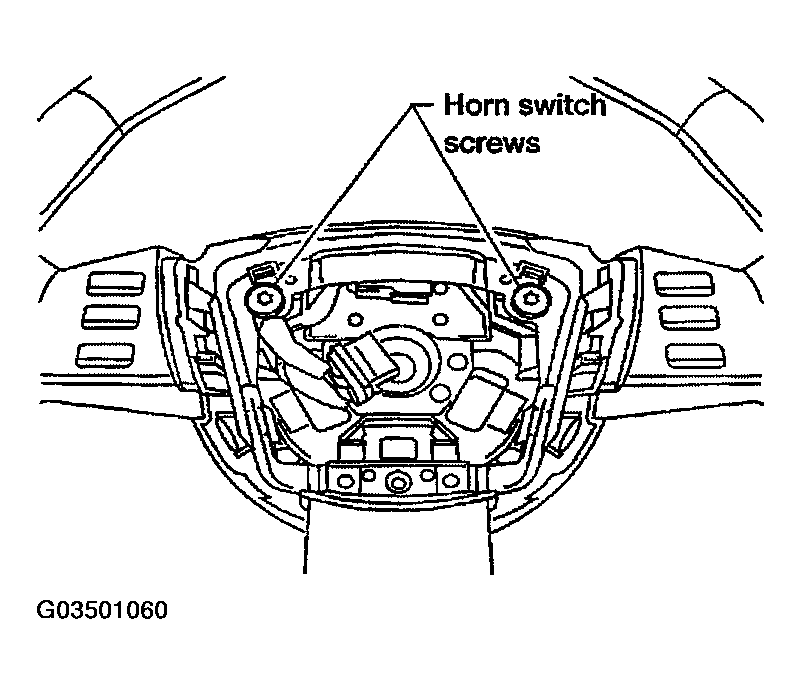

Fig 1: Removing Horn Switch Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove steering wheel rear cover screws and remove steering wheel rear cover.

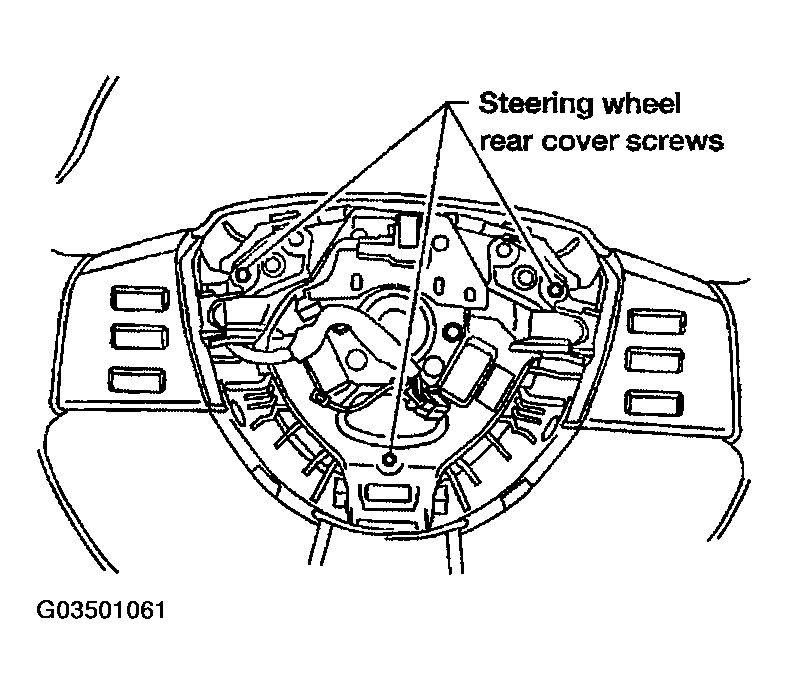

Fig 2: Removing Steering Wheel Rear Cover Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove steering wheel switch assembly screws and steering wheel switches.
Installation is in the reverse order of removal.

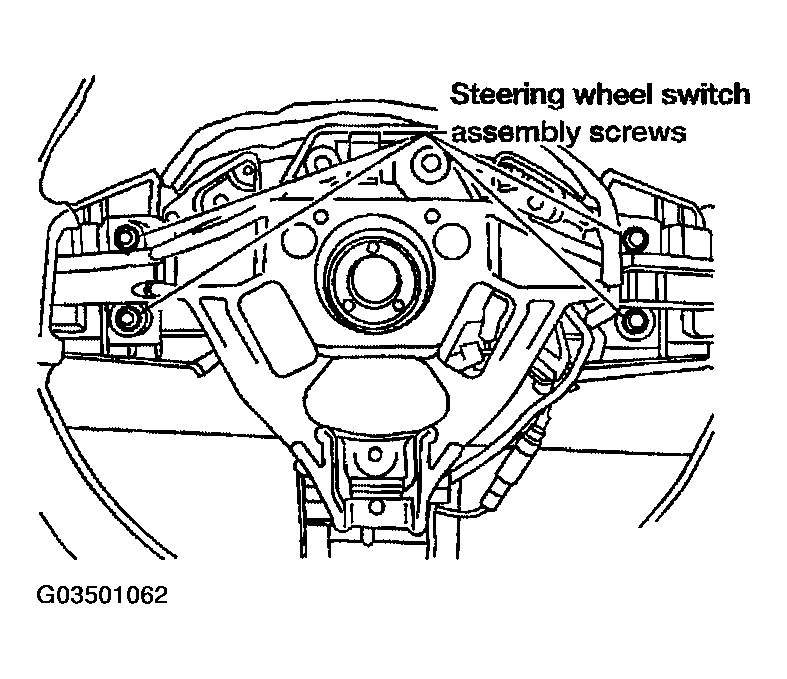

Fig 3: Removing Steering Wheel Switch Assembly Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
