Removal and Installation of Rear Tweeter

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove back door lower finisher. Refer to BACK DOOR .
  2. Disconnect connector.
  3. Remove push pins and remove tweeter.
  4. Installation is in the reverse order of removal.

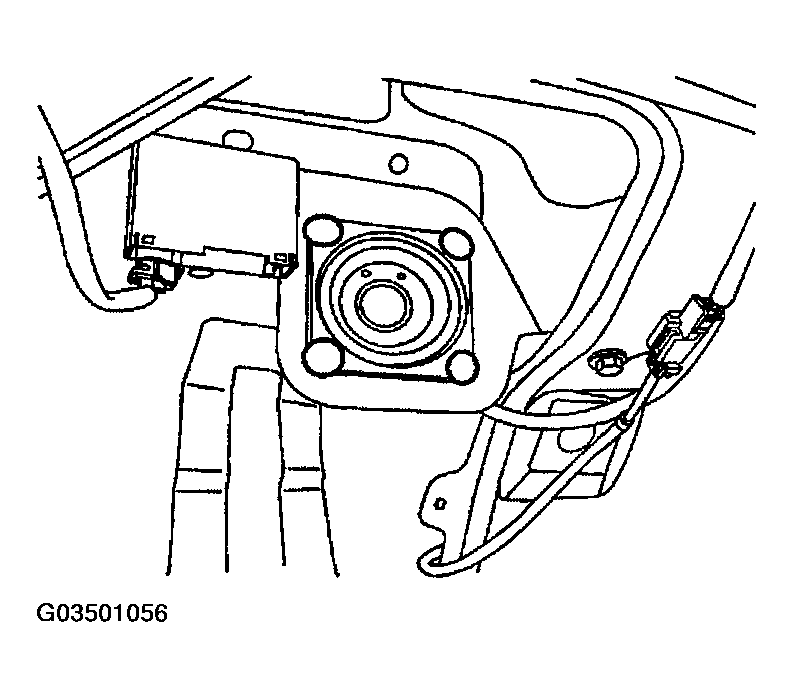

    Fig 1: Removing Push Pins & Tweeter
    G03501056Courtesy of NISSAN MOTOR CO., U.S.A.
